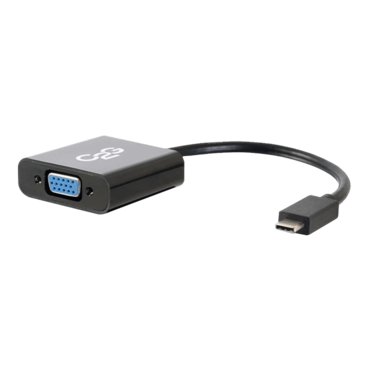

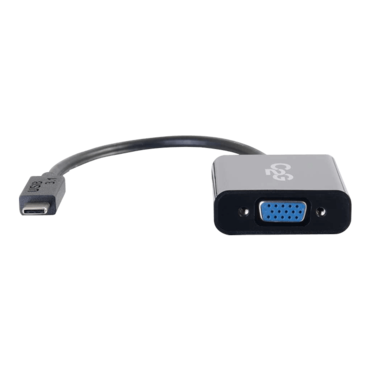

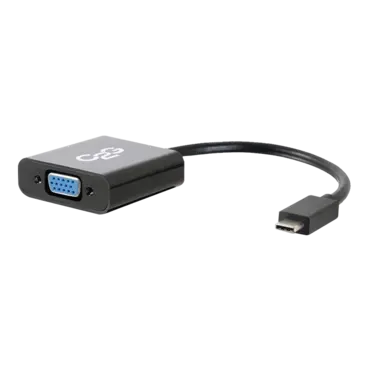

USB 3.1 USB-C to VGA Video Adapter
- SKU: 9994382
- Manufacturer: CABLES TO GO
- MPN: 29471
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
This USB-C to VGA adapter is an ideal solution for connecting a device with a USB 3.1 Type C connector to a VGA monitor or projector to display video. This adapter supports up to a 1920x1200 resolution allowing it to deliver a high quality video image to the connected display. The compact design of this adapter make it a perfect pair for BYOD (Bring Your Own Device) applications in education or corporate environments.
Video Specifications
• Maximum resolution: 1920x1200
Electrical specifications
• Voltage rating: 30V
• Insulation resistance: 10MΩ/km
Physical Characteristics
• Operation temperature: 0° - 50°C
• Storage temerature: -25°C - 70°C
Conductor 1 (3 pairs)
• Size: 32AWG (7/0.08 tinned copper)
• Insulation: FM-PE
• Shield: Aluminum foil - 100% coverage
• Drain wire: 32AWG (7/0.08 tinned copper)
Conductor 2 (4 conductors)
• Size: 32AWG (7/0.08 tinned copper)
• Insulation: HD-PE
Conductor 3 (1 conductors)
• Size: 28AWG (7/0.12 tinned copper)
• Insulation: HD-PE
Overall Cable
• Jacket (standard, non-rated)
• Foil shield: Aluminum foil - 100% coverage
• Braided shield: 16/5/0.08 tinned copper
• Drain wire: 32AWG (7/0.08 bare copper)
• Outer diameter: 5.2 ± 0.2mm
