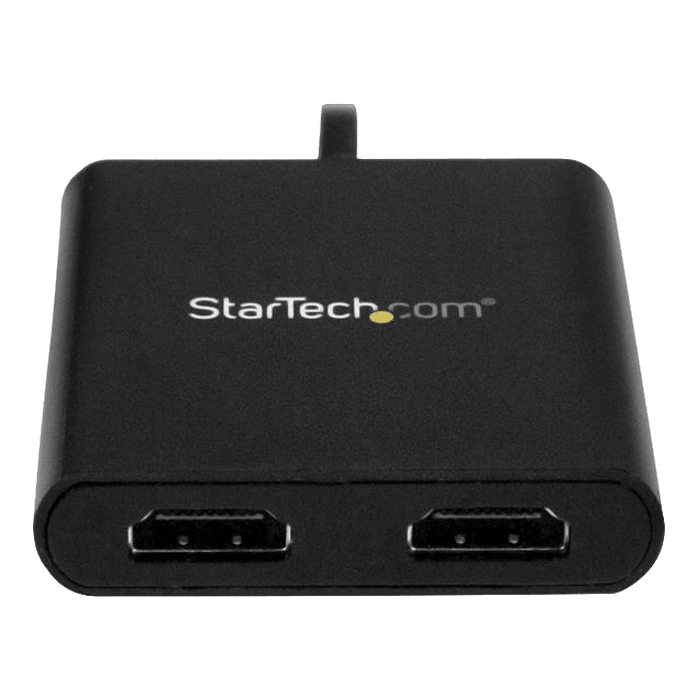

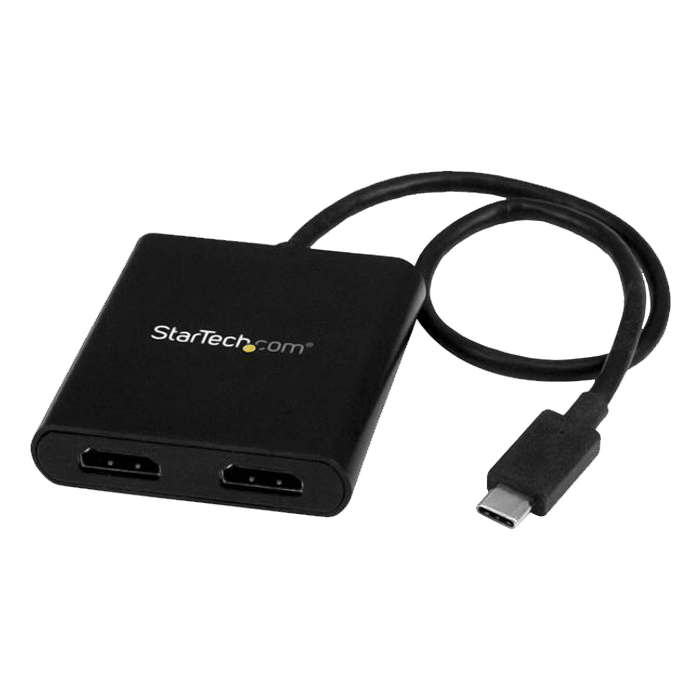

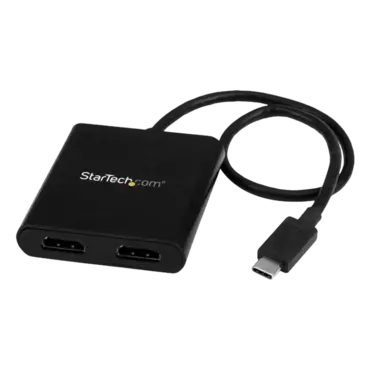

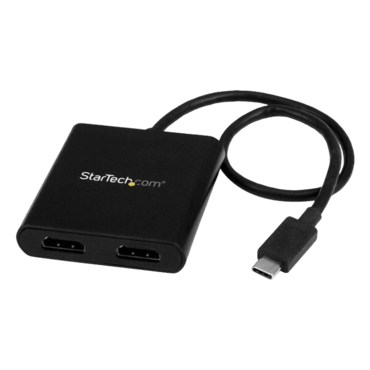

This MST hub lets you connect two HDMI® monitors to your USB-C™ computer. MST works on any Windows® device that supports DP Alt Mode over USB Type-C™. The MST hub also works with Thunderbolt™ 3 ports to provide Thunderbolt 3 to dual HDMI conversion.
The USB-C HDMI hub is powered by the USB-C port, so you don't require an additional power adapter. This adapter works with USB Type-C devices that pass a DisplayPort video signal.
Increase your productivity with multiple monitors
The newest generations of laptops are more portable than ever. But, this could mean that you’re left with fewer video outputs and confined to your laptop's integrated screen. This USB-C MST hub solves these problems by letting you connect two independent HDMI displays through a USB-C port on your computer, which makes multitasking much easier.
Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display. This makes it easier to multitask and increase your productivity -- perfect for creating a hot-desk solution with a wireless keyboard and mouse peripheral set.
The hub also lets you mirror the same image onto multiple displays, for remote viewing applications such as digital signage.
Astonishing picture quality that won’t drain your system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and offers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, it's perfect for all high-resolution applications such as graphic design and CAD drawing.
The MSTCDP122HD USB-C to HDMI MST hub is backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Maximize your productivity by connecting two independent HDMI displays to your computer
- Connect your USB-C computer to two HDMI displays such as televisions, monitors or projectors
- Increase external video performance with support for dual monitors with resolutions up to 4K (30 Hz)
- Thunderbolt 3 port compatible
WARRANTY INFORMATION | ||
---|---|---|
Warranty | 2 Years | |
HARDWARE | ||
Audio | Yes | |
AV Output | HDMI | |
Chipset ID | MegaChips - STDP4320
Parade - PS8402A VIA/VLI - VL100 |
|
Ports | 2 | |
PERFORMANCE | ||
Maximum Digital Resolutions | 3840x2160 @ 30hz | |
Supported Resolutions |
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Average resolution bandwidth allocation 1920x1080 (1080p) @60hz - 22% Note: Exceeding 100% will reduce functionality. |
|
Wide Screen Supported | Yes | |
CONNECTOR(S) | ||
Connector A | 1 - USB-C (24 pin) DisplayPort Alt Mode Male Input | |
Connector B | 2 - HDMI (19 pin) Female Output | |
SOFTWARE | ||
OS Compatibility | Windows 10, 8.1, 8 | |
ENVIRONMENTAL | ||
Humidity | 50-90% | |
Operating Temperature | 5°C to 35°C (41°F to 95°F) | |
Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
PHYSICAL CHARACTERISTICS | ||
Cable Length | 1.3 in [33 mm] | |
Color | Black | |
Enclosure Type | Plastic | |
Product Height | 0.5 in [13 mm] | |
Product Length | 2.4 in [62 mm] | |
Product Weight | 1.6 oz [44 g] | |
Product Width | 2.3 in [58 mm] | |
PACKAGING INFORMATION | ||
Shipping (Package) Weight | 5 oz [143 g] | |
WHAT'S IN THE BOX | ||
Included in Package | 1 - MST hub | |
1 - quick-start guide |
