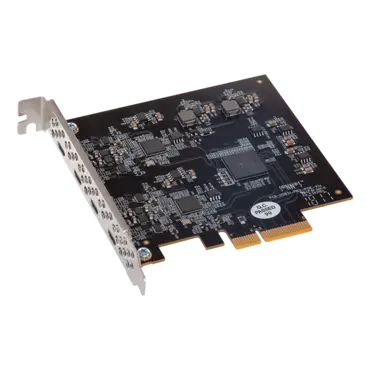

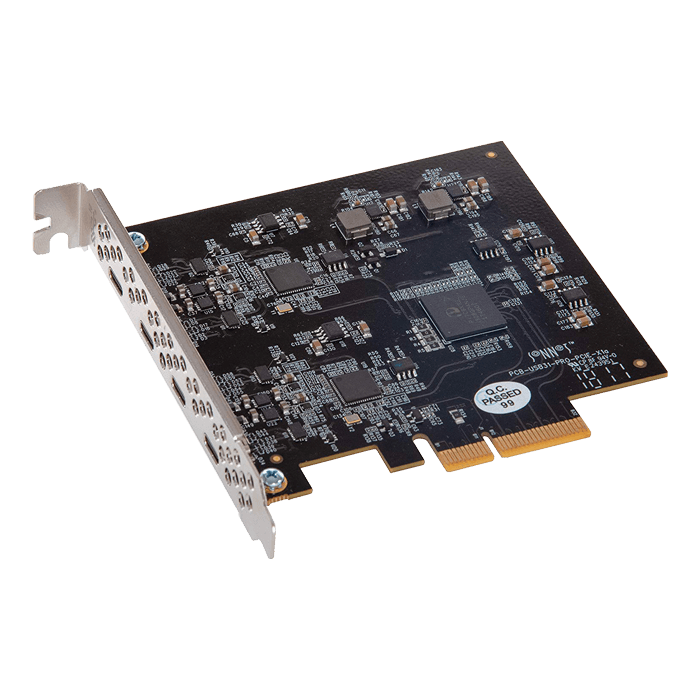

Allegro USB3C-4PM-E, 4 x USB-C to PCI Express 2.0 x4 Add-On Card

  • SKU: 13255173
  • Manufacturer: SONNET TECHNOLOGIES, INC.
  • MPN: USB3C-4PM-E
  • Availability: LOW STOCK
Price
$171.67
Allegro USB3C-4PM-E, 4 x USB-C to PCI Express 2.0 x4 Add-On Card

Powerful USB 3.2 Gen 2 Performance: Add Four USB-C 10Gbps Ports to Computers and Thunderbolt Expansion Systems with PCIe Slots

Equipped with SSDs, the fastest USB drives you can buy today are capable of 800 MB/s data transfers, and many are bus-powered. Most desktop computers (even new models) include generations-old USB interfaces that will throttle that performance and may not offer adequate power to allow bus-powered drives to operate. Install Sonnet’s Allegro USB-C 4-Port PCIe card into a PCIe slot of your Mac Pro®, Windows®, or Linux® computer, or Thunderbolt Expansion System, and support fast USB drives at maximum performance.

  • Mac Compatibility
  • Mac Pro® 3,1, 4,1, 5,1, 7,1 (2019), or 14,8 (2023)
  • macOS 10.12.6+
  • macOS Sonoma compatible
  • Windows Compatibility
  • Computer with PCIe slots
  • Windows 11, 10, 8.1, 7
  • Windows Server 2019, 2016, 2012, and 2008 (64-bit editions)
  • Linux Compatibility (See Tech Note 1149)
  • Computer with PCIe slots
  • Linux Kernel 5.4.0+
  • Ubuntu 20.04.1+
  • Thunderbolt PCIe Expansion System Compatibility
  • Supports USB 3 devices when card is installed in a Thunderbolt to PCIe Card Expansion System
USB3C-4PM-E Allegro USB-C 4-Port PCIe Card
Warranty 2-year
Form Factor PCIe computer card
Bus Interface PCI Express 2.0 x4
Peripherals Supported
  • Industry standard USB 3.2 Gen 1, Gen 2 & 2x2; USB 3.1 Gen 1 & 2; USB 3.0, 2.0 and 1.1
  • Thunderbolt 3-only peripherals are NOT supported
Bus Powered Peripherals Supported
  • HD, SSD, SSD RAID
  • 1.5A per port advertised using USB Type-C Charging
  • 7.5W per port for operation or charging
Cables Supported
  • USB-C 10Gbps
  • USB-C 5Gbps (not recommended)
  • Thunderbolt 3 40Gbps (0.5-, 0.7-, 0.8-meter cables only)
  • Thunderbolt 3 20Gbps
Chipset 2x ASMedia 3142
RoHS Compliant Yes
Package Contents
  • Allegro USB-C 4-Port PCIe adapter card
Standard Complies with OHCI (Open Host Controller Interface), EHCI (Enhanced Host Controller Interface), and xHCI (eXtensible Host Controller Interface) standards
UASP USB attached SCSI protocol supported under
macOS 10.12+, Windows 10
Alternate Modes Support No
Chipset Throughput 20Gbps combined port throughput
Number of Devices Supported Up to 62
Hot Plug Supports hot-pluggable and hot swappable device connection
Boot Support No computers support booting at this time
