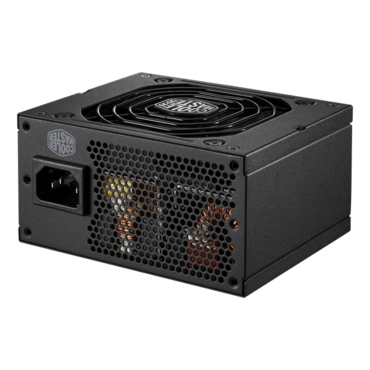

V1100, 80 PLUS Platinum 1100W, Fully Modular, SFX Power Supply
- SKU: 15780696
- Manufacturer: COOLER MASTER
- MPN: MPZ-B001-SFAP-BUS
- Availability: TEMPORARILY OUT OF STOCK
Price
$186.50
V1100, 80 PLUS Platinum 1100W, Fully Modular, SFX Power Supply
A REVOLUTION TO SFX
Leading the SFX power supply industry, the V SFX Platinum delivers not only the most powerful SFX power supply but fully compatable with ATX3.0, both ITX and ATX cases, bringing a revolution to SFX power supply.
- High Power Density
- Fully Support ATX3.0
- 100% Japanese Capacitors
- Full-bridge LLC and DC-DC Technology
- Fully Modular Cables
- 10 Years Warranty
| Model | MPZ-B001-SFAP-B |
| ATX Version | ATX3.0, SFX 12V Ver. 3.42 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 14-6.5A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 100 x 125 x 63.5 mm |
| Fan Size | 92mm |
| Fan Bearing | FDB |
| Efficiency | ≥ 92% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Platinum |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥16ms at 70% Load |
| MTBF | >100,000 Hours |
| Protections | OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection |
| Regulatory | TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, UKCA |

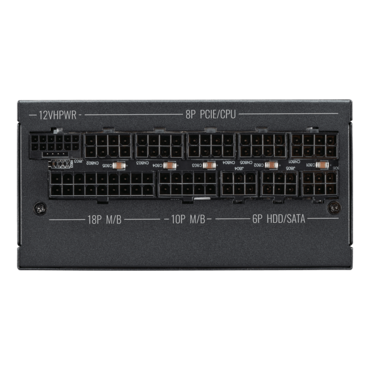

| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 8 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 3 |
| 12VHPWR Connector | 1 |
| Series | V SFX Series |
| 80 Plus | Platinum |
| Modular | Full Modular |
| Wattage | Above 750W |
