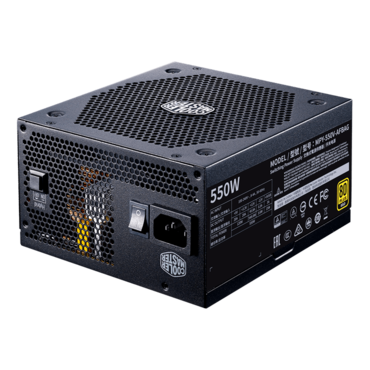

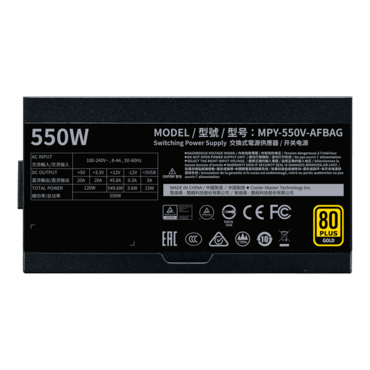

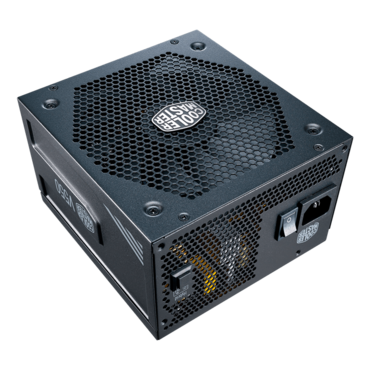

V550 GOLD-V2, 80 PLUS Gold 550W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 15885043
- Manufacturer: COOLER MASTER
- MPN: MPY-550V-AFBAG-US
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$146.02
V550 GOLD-V2, 80 PLUS Gold 550W, Fully Modular, ATX Power Supply
The V Gold - v2 series delivers a top-shelf power supply unit in 550 wattage levels. It offers an 80 PLUS Gold efficiency rating, full-modular cabling, optional semi-fanless operation with a hardware based hybrid switch, a 135mm FDB fan, 16AWG PCIe high efficiency cables, and a 10 year warranty. This series has brought together a number of innovations and improvements from past products to form a PSU that meets all your needs. The 100% Japanese capacitors, half-bridge LLC resonant converter, and DC-DC circuitry work together, resulting in a product that even the pros can respect.
- 80 Plus Gold Certified
- Half-bridge LLC Resonant Converter And DC-DC Technology
- Silent 135mm FDB Fan
- 40% Semi-fanless Mode With Hybrid Switch
- 16AWG PCIE Cables
- 10 Year Warranty
| Model | MPY-550V-AFBAG |
| ATX Version | ATX 12V V2.52 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 8-4A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 160 x 150 x 86 mm |
| Fan Size | 135mm |
| Fan Bearing | FDB |
| Fan Speed | 1161 RPM |
| Noise Level @ 20% | 0 dBA |
| Noise Level @ 50% | 18.3 dBA |
| Noise Level @ 100% | 24.9 dBA |
| Efficiency | 90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Power Good Signal | 100 - 500 ms |
| Hold Up Time | 17ms |
| MTBF | >100,000 Hours |
| Protections | OVP, OPP, SCP, OCP, UVP, OTP |
| Regulatory | CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 8 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 4 |
| Series | V Gold Series |
| 80 Plus | Gold |
| Modular | Full Modular |
| Wattage | 500 to 750W |
