V750 SFX GOLD, 80 PLUS Gold 750W, Fully Modular, SFX Power Supply
Quantity:
- SKU: 13665649
- Manufacturer: COOLER MASTER
- MPN: MPY-7501-SFHAGV
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$137.48
V750 SFX GOLD, 80 PLUS Gold 750W, Fully Modular, SFX Power Supply

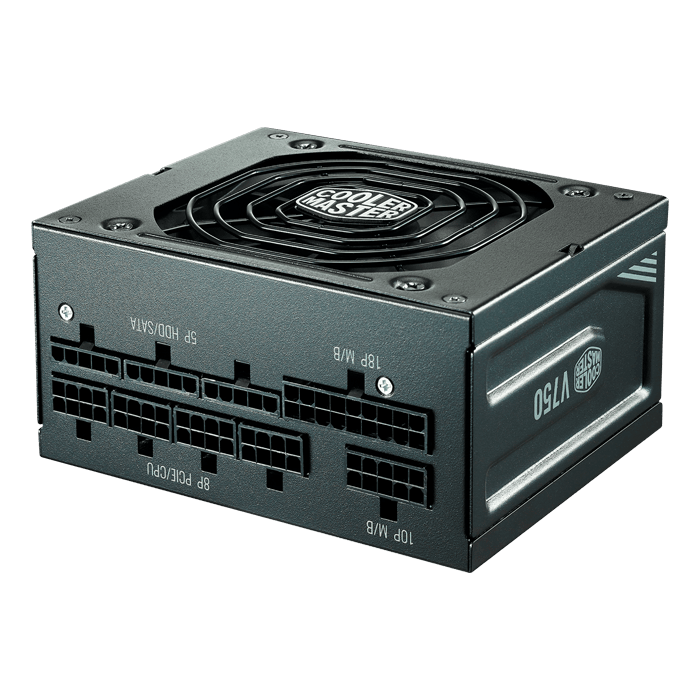

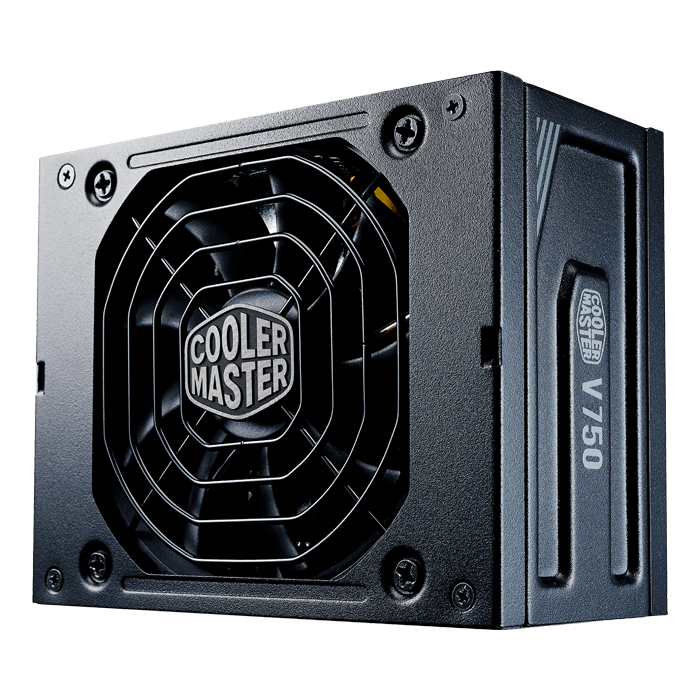

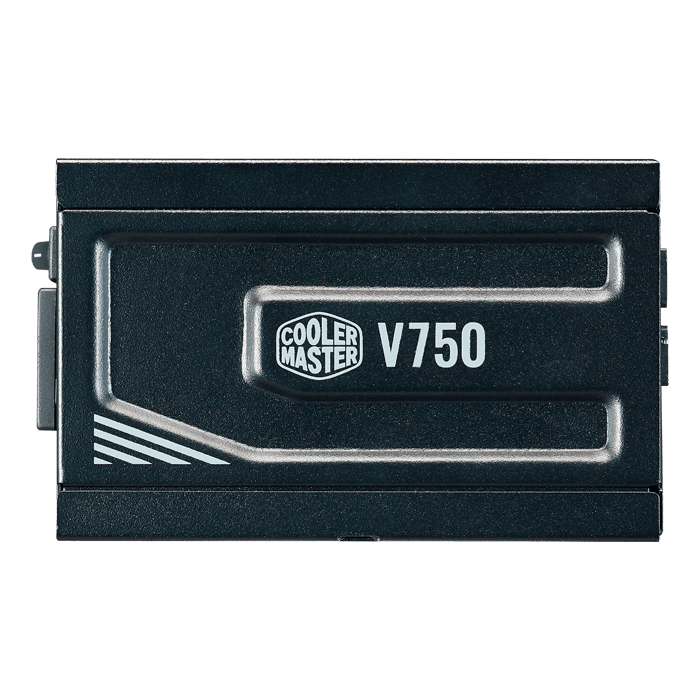

COOLER MASTER V750 SFX GOLD (MPY-7501-SFHAGV-US). MAKE IT MINI. The V SFX Gold is Cooler Master's debut entry into SFX power supply units. After much demand, we have finally produced a PSU specifically made to meet the needs of mini-ITX system builders. This unit delivers top-shelf performance in 550, 650, 750, and 850 watt levels. It offers an 80 PLUS Gold efficiency rating, full-modular cabling, a 92mm FDB fan, 16AWG PCIe high efficiency cables, 100% Japanese capacitors, and a 10 year warranty. And with the included SFX-to-ATX bracket, this unit is compatible with cases ranging from mini-ITX all the way up to E-ATX systems.
- 80 Plus Gold Efficiency
- SFX Form Factor
- SFX-to-ATX Bracket
- 80 Plus Gold Certified
- Semi-fanless Mode
- Full-modular Cabling
- 10 Year Warranty
| MODEL | MPY-7501-SFHAGV |
| ATX VERSION | SFX 12V Ver. 3.42 |
| PFC | Active PFC |
| INPUT VOLTAGE | 90-264V |
| INPUT CURRENT | 10-5A |
| INPUT FREQUENCY | 47-63Hz |
| DIMENSIONS (L X W X H) | 100 x 125 x 63.5 mm |

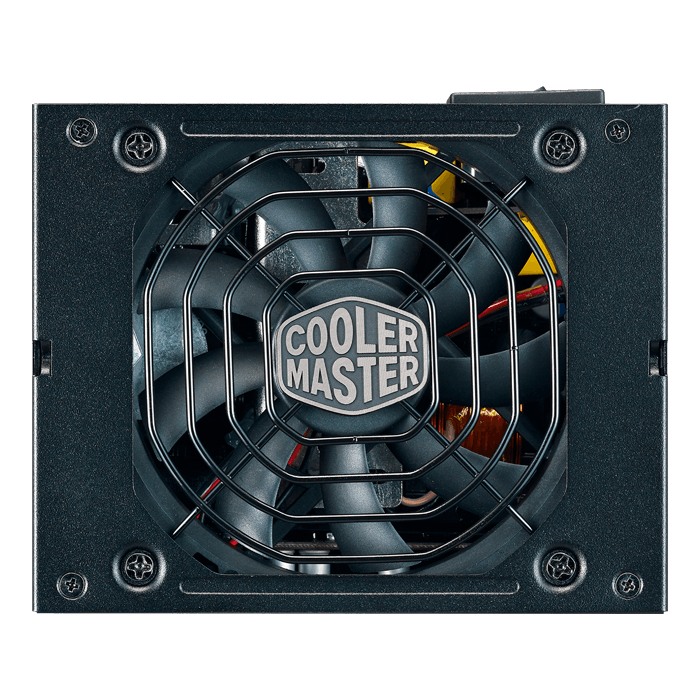

| FAN SIZE | 92mm |
| FAN BEARING | FDB |
| EFFICIENCY | 90% @ Typical Load |
| 80 PLUS RATING | 80 PLUS Gold |
| ERP 2014 LOT 3 | Yes |
| OPERATING TEMPERATURE | 0-50°C |
| POWER GOOD SIGNAL | 100 - 500 ms |
| HOLD UP TIME | 16ms |
| MTBF | >100,000 Hours |
| PROTECTIONS | OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection |
| REGULATORY | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB |
| ATX 24-PIN CONNECTORS | 1 |
| EPS 4+4 PIN CONNECTORS | 1 |
| EPS 8 PIN CONNECTOR | 1 |
| SATA CONNECTORS | 8 |
| PERIPHERAL 4-PIN CONNECTORS | 4 |
| PCI-E 6+2 PIN CONNECTORS | 4 |
| SERIE | V Gold Series, V SFX Gold Series |
| 80 PLUS | Gold |
| MODULAR | Full Modular |
| WATTAGE | 750W |
