V750 White Edition, 80 PLUS Gold 750W, Fully Modular, SFX Power Supply
Quantity:
- SKU: 14657597
- Manufacturer: COOLER MASTER
- MPN: MPY-7501-SFHAGV-WU
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$182.33
V750 White Edition, 80 PLUS Gold 750W, Fully Modular, SFX Power Supply
The V SFX Gold - white edition delivers the high quality performance you've come to expect from the V series in a mini-ITX compatible form factor. As demands for smaller systems have risen, people have struggled to find power supply units from brands and series they trust in the SFX category. Though it didn't come as soon as we originally planned, Cooler Master is glad to finally be able to provide a reliable, high quality PSU that's compatible with smaller cases and their accompanying components. A reduction in size should never mean a reduction in quality and with the V SFX Gold, it doesn't. Make it mini. Make It Yours.
- SFX Form Factor : This unit is compatible with all SFX cases and suitable for mini-ITX system builds.
- SFX-to-ATX Bracket : The included bracket allows users to install this unit securely in traditional ATX cases.
- 80 PLUS Gold Certified : This certification guarantees a typical efficiency of 90% under normal operating conditions.
- Quiet FDB Fan : The 92mm FDB fan delivers effective, quiet, and efficient cooling.

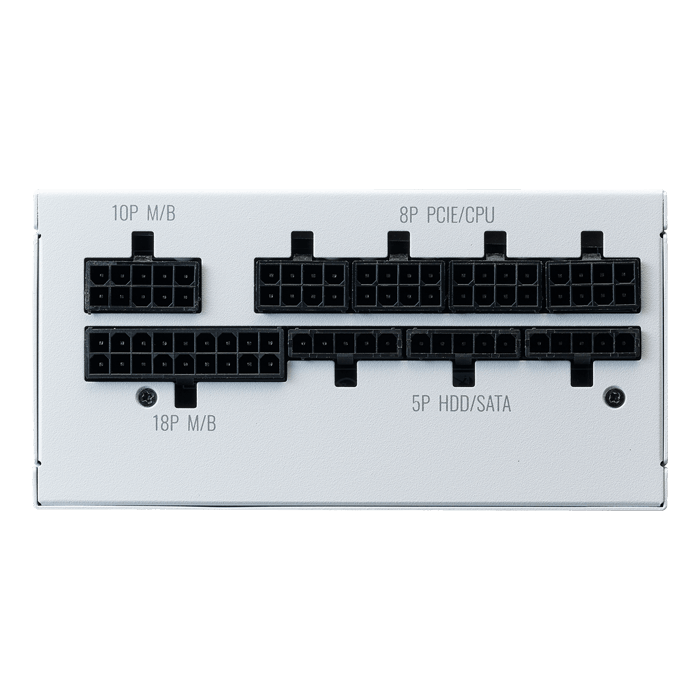

- White Casing and Cables : White casing and full-modular white cables for a clean aesthetic and improved airflow.
- 10 Year Warranty : This unit comes with a standard limited manufacturing warranty of 10 years from the date of purchase.
| Model | MPY-7501-SFHAGV |
| ATX Version | SFX 12V Ver. 3.42 |
| PFC | Active PFC |
| Input Voltage | 90-264V |
| Input Current | 12-6A |
| Input Frequency | 47-63Hz |
| Dimensions (L x W x H) | 100 x 125 x 63.5 mm |
| Fan Size | 92mm |
| Fan Bearing | FDB |
| Efficiency | 90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ETA Rating | A |
| lAMBDA Rating | A |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 500 ms |
| Hold Up Time | 16ms |
| MTBF | >100,000 Hours |
| Protections | OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection |
| Regulatory | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB |
| ATX 24-Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 8 |
| Peripheral 4-Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 4 |
| Series | V SFX Gold Series |
| 80 Plus | Gold |
| Modular | Full Modular |
| Wattage | Above 750W |
