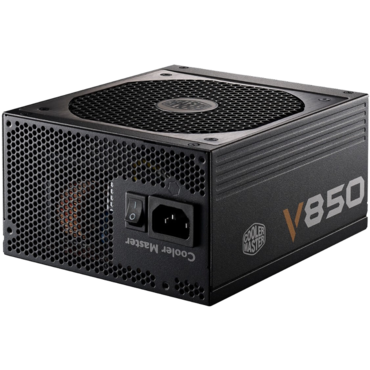

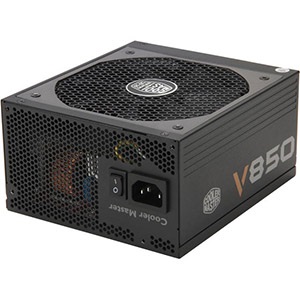

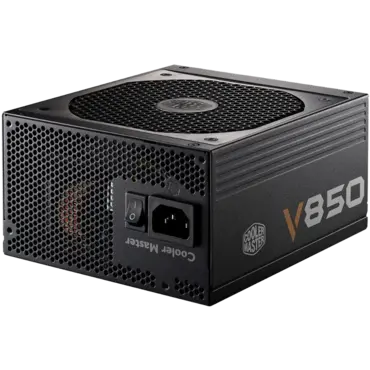

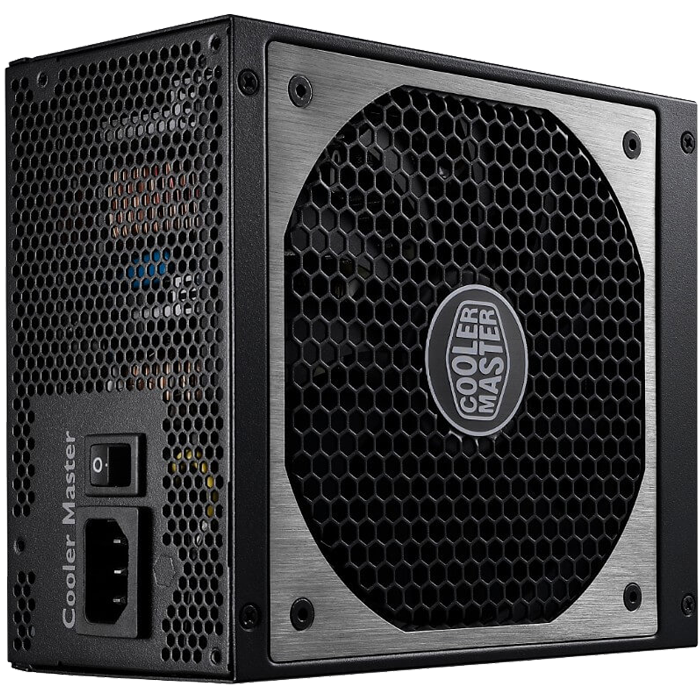

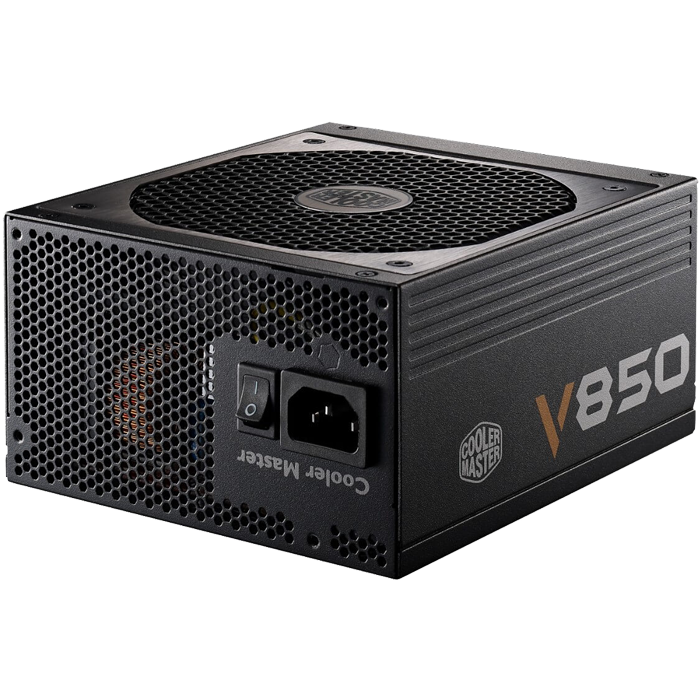

V850, 80 PLUS Gold 850W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 7704845
- Manufacturer: COOLER MASTER
- MPN: RS850-AFBAG1-US
- Availability: CONTACT US
Starting At
$221.19
V850, 80 PLUS Gold 850W, Fully Modular, ATX Power Supply
The V series of 80 Plus Platinum power supplies is built using the highest-grade components available, including 100% high quality Japanese capacitors, to ensure excellent efficiency, hold up times, voltage stability, and ripple suppression. The V series uses a fully modular cable system with extra slim flat-ribbon cables to improve cable management and allow for clean and elegant looking builds.
- Fully modular cable design incorporates a single 1000W +12V output that delivers up to 70A.
- 80 PLUS Gold certified: up to 93% efficiency @ 50% load
- Silent 135 mm FDB fan for lower noise and longer lifespan
- Six PCI-E 6+2 pin connectors to support high-end GPUs
- 100% high quality Japanese capacitor ensures performance and reliability.
- Reliable 5 year warranty
| Model | RS-850-AFBA-G1 |
| Type | Intel Form Factor ATX 12V V2.31 |
| Dimension (W x L x H) | 150 x 170 x 86mm / 5.9 x 6.7 x 3.4 inch |
| Input Voltage | 90-264Vac (Auto Range) |
| Input Current | 10 - 5A |
| Input Frequency Range | 60 - 50Hz |
| PFC | Active PFC (>0.9) |
| Power Good Signal | 100-500ms |
| Hold Up Time | >17ms |
| Efficiency | 90% Typically |
| MTBF | >100,000 Hours |
| Protection | OVP/UVP/OPP/OTP/SCP |
| Output Capacity | 850W |
| Operation Temperature | 0~40°C |
| Regulatory | CE/TUV/TUV-SUDNRTL/FCC/GOST/CCC/BSMI/C-tick/KCC |
| Fan | Silent FDB 135mm |
| Certifications | 80 Plus Gold |
| Connector | M/B 20+4 Pin Connector x 1 CPU 4+4 Pin x 2 PCI-e 6+2 Pin x 6 SATA x 9 4 Pin Peripheral x 4 4 Pin Floppy x 1 |
