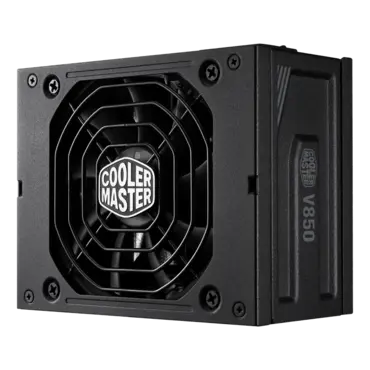

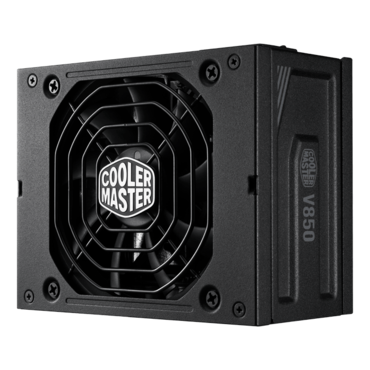

V850 ATX 3.0, 80 PLUS Gold 850W, Fully Modular, SFX Power Supply

  • SKU: 16633745
  • Manufacturer: COOLER MASTER
  • MPN: MPY-8501-SFHAGV-3US
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
V850 ATX 3.0, 80 PLUS Gold 850W, Fully Modular, SFX Power Supply

As the leading SFX power supply design, the V SFX Gold offers a highly powerful unit in a space-saving, mini form factor.

With the included SFX-to-ATX bracket, the V SFX Gold ATX 3.0 can be used to power systems ranging from as small as a mini-ITX all the way up to E-ATX motherboards.

  • lexible compatibility
  • ATX 3.0 support & a 90-degree 12VHPWR cable
  • 80 PLUS Gold certified
  • Fully modular cabling
  • 100% Japanese capacitors
  • 10-year Warranty
Model MPY-8501-SFHAGV
ATX Version ATX3.0, SFX 12V Ver. 3.42
PFC Active PFC
Input Voltage 100-240V
Input Current 12-6A
Input Frequency 50-60Hz
Dimensions (L x W x H) 100 x 125 x 63.5 mm

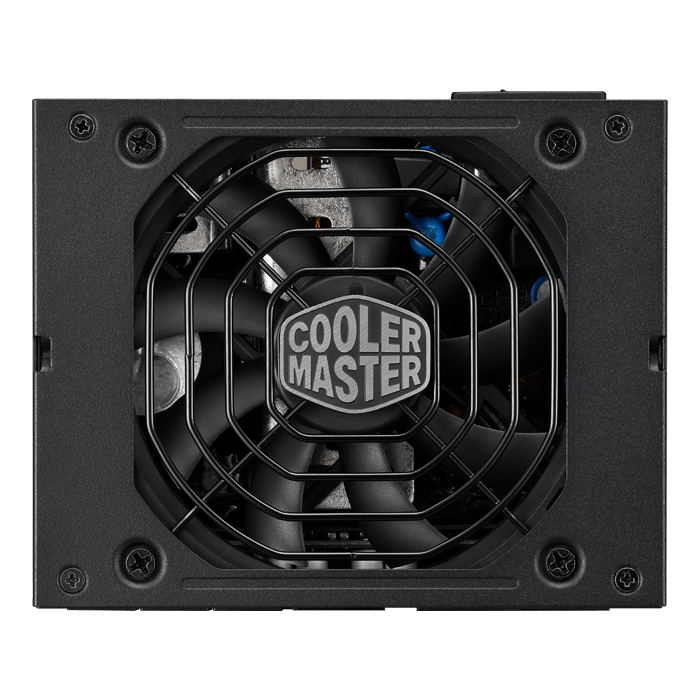

Fan Size 92mm
Fan Bearing FDB
Efficiency 90% @ Typical Load
80 PLUS Rating 80 PLUS Gold
ETA Rating Gold
LAMBDA Rating Standard+
ErP 2014 Lot 3 Yes
Operating Temperature 0-50°C
Power Good Signal 100 - 500 ms
Hold Up Time 16ms
MTBF >100,000 Hours
Protections OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection
Regulatory TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA

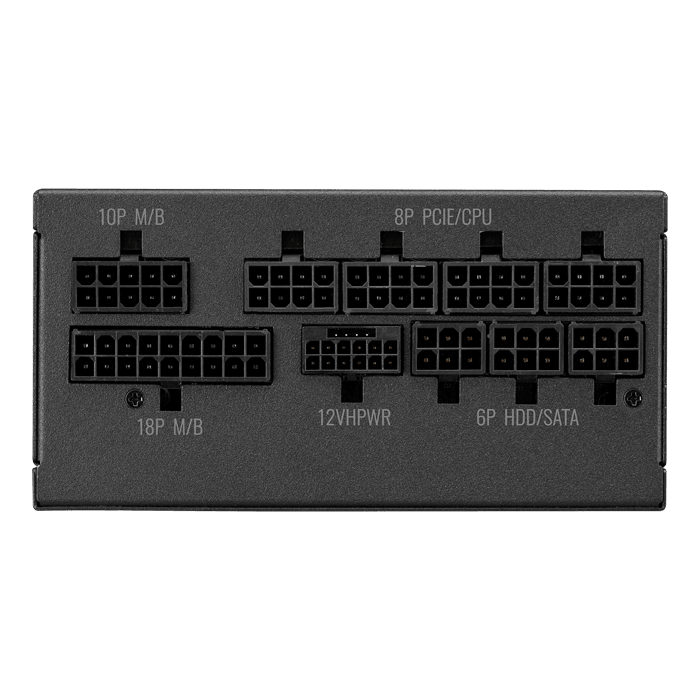

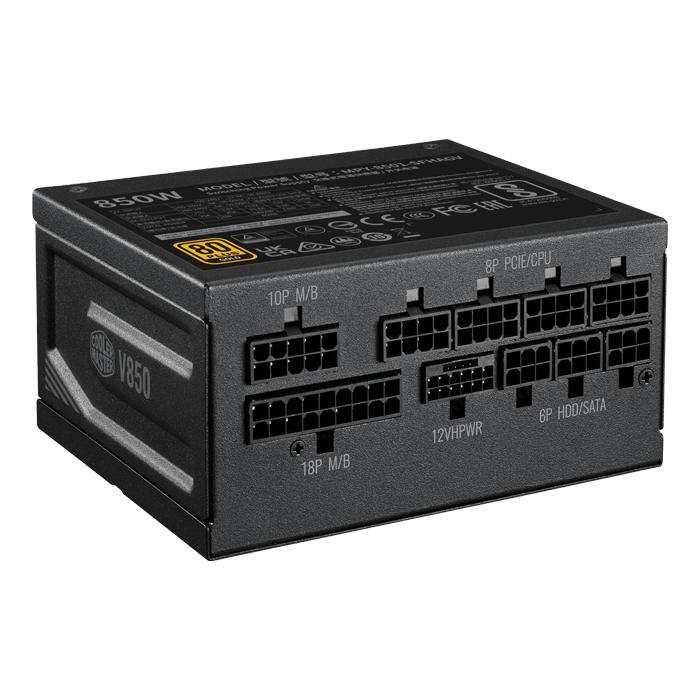

ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
EPS 8 Pin Connector 1
SATA Connectors 2
Peripheral 4 Pin Connectors 1
PCI-e 6+2 Pin Connectors 2
12VHPWR Connector 1
Series V SFX Series
80 Plus Gold
Modular Full Modular
Wattage Above 750W
