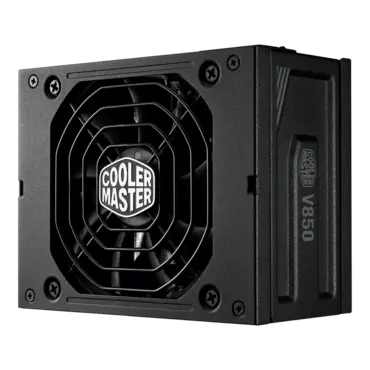

V850 ATX 3.0 (MPY-8501-SFHAGV-3U1), 80 PLUS Gold 850W, Fully Modular, SFX Power Supply
- SKU: 18991618
- Manufacturer: COOLER MASTER
- MPN: MPY-8501-SFHAGV-3U1
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$155.33
V850 ATX 3.0 (MPY-8501-SFHAGV-3U1), 80 PLUS Gold 850W, Fully Modular, SFX Power Supply
The V SFX Gold provides the renowned quality synonymous with the V series, now in a compact SFX form factor. Enjoy compatibility with diverse cases, ATX 3.0 support, a robust 90-degree connector, 80 Plus Gold efficiency, premium Japanese capacitors, fully modular cabling, and a 10-year warranty. Its adaptable compatibility, small footprint, and exceptional performance make the V SFX Gold a powerhouse despite its compact size.
The V SFX Gold provides the renowned quality synonymous with the V series, now in a compact SFX form factor. Enjoy compatibility with diverse cases, ATX 3.0 support, a robust 90-degree connector, 80 Plus Gold efficiency, premium Japanese capacitors, fully modular cabling, and a 10-year warranty. Its adaptable compatibility, small footprint, and exceptional performance make the V SFX Gold a powerhouse despite its compact size.
- lexible compatibility
- ATX 3.0 support & a 90-degree 12VHPWR cable
- 80 PLUS Gold certified
- Fully modular cabling
- 100% Japanese capacitors
- 10-year Warranty
| Model | MPY-8501-SFHAGV-3U1 |
| ATX Version | ATX3.0, SFX 12V Ver. 3.42 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 12-6A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 100 x 125 x 63.5 mm |
| Fan Size | 92mm |
| Fan Bearing | FDB |
| Efficiency | 90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ETA Rating | Gold |
| LAMBDA Rating | Standard+ |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 500 ms |
| Hold Up Time | 16ms |
| MTBF | >100,000 Hours |
| Protections | OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection |
| Regulatory | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 2 |
| Peripheral 4 Pin Connectors | 1 |
| PCI-e 6+2 Pin Connectors | 2 |
| 12VHPWR Connector | 1 |
| Series | V SFX Series |
| 80 Plus | Gold |
| Modular | Full Modular |
| Wattage | Above 750W |
