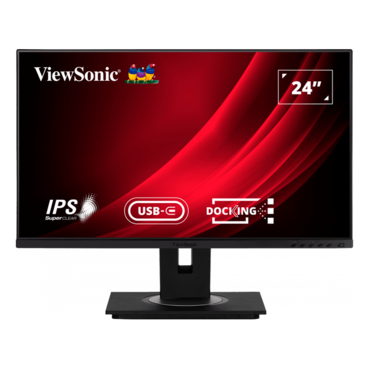

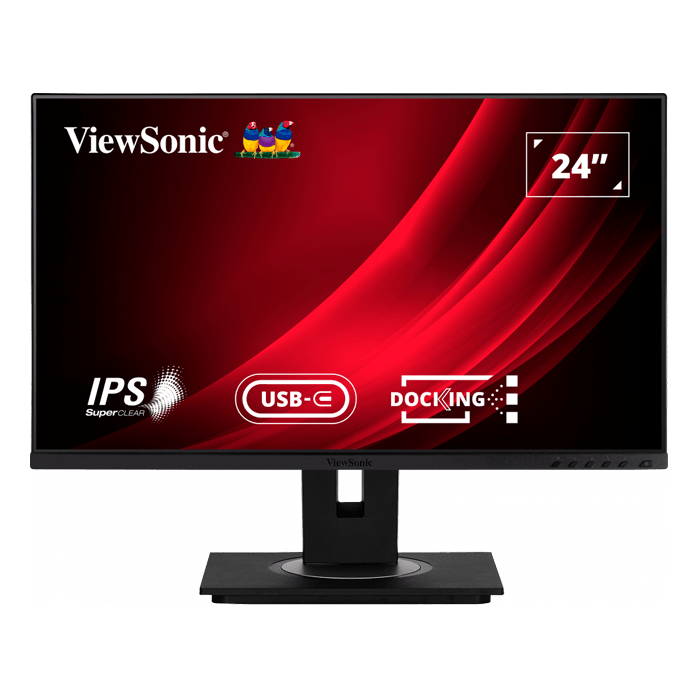

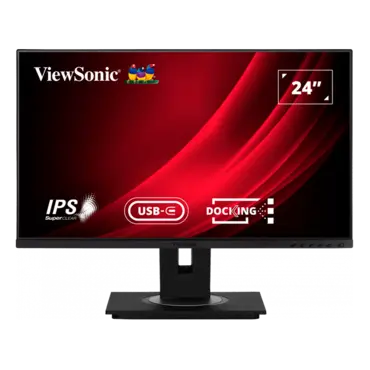

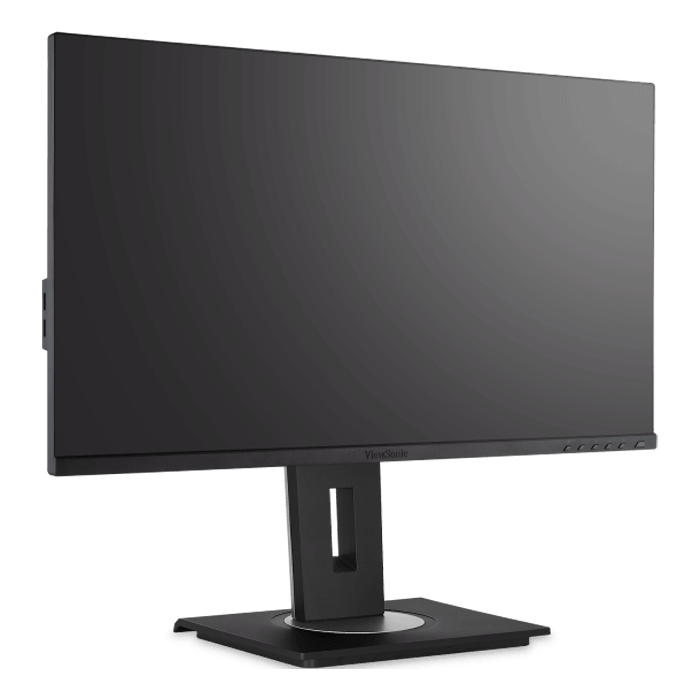

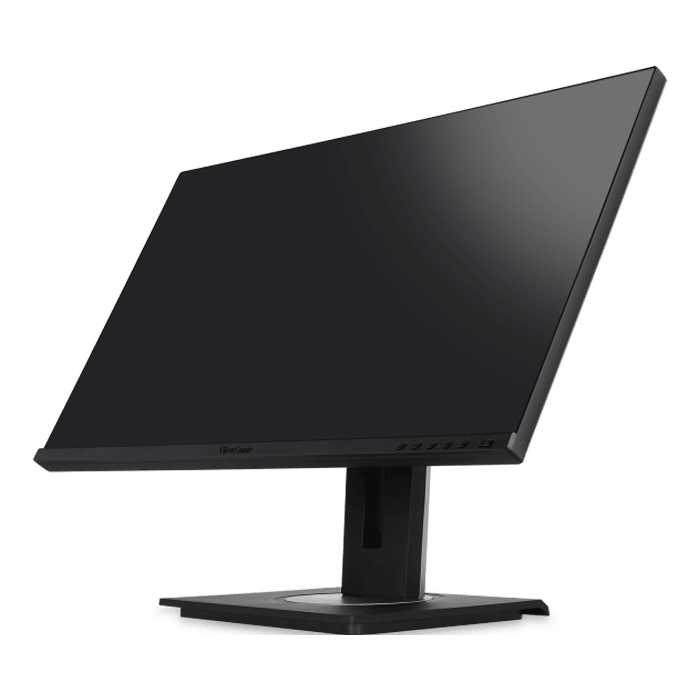

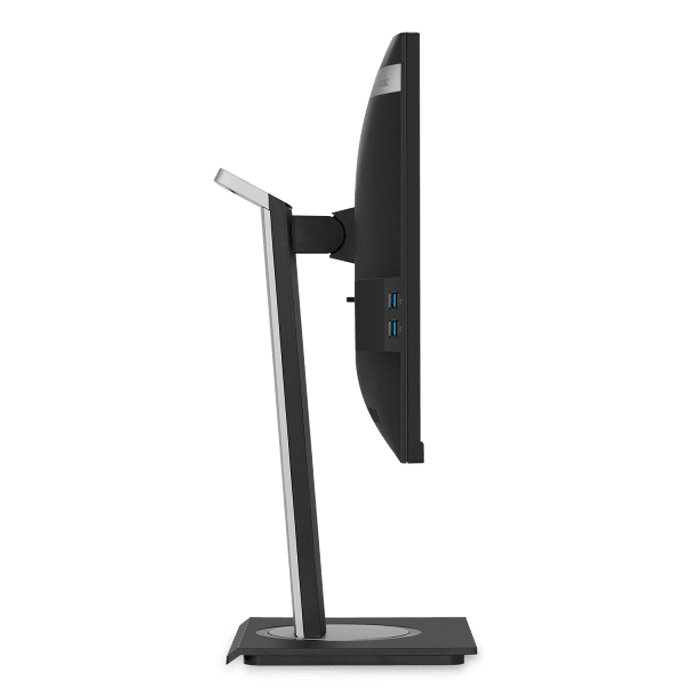

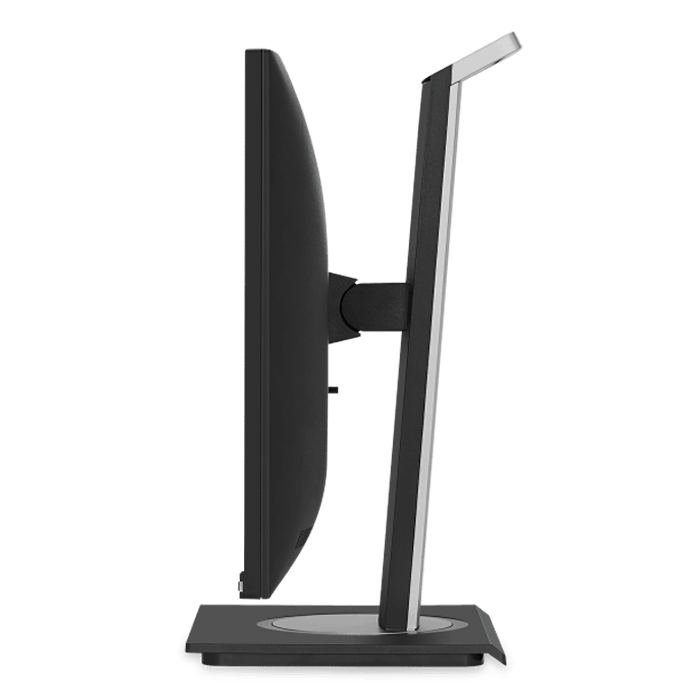

VG2456, 23.8" IPS, 1920 x 1080 (FHD), 5 ms, 60Hz, Monitor
- SKU: 13230561
- Manufacturer: VIEWSONIC
- MPN: VG2456
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Designed to boost productivity and maximize output, the ViewSonic® VG2456 is a 24” docking monitor that transforms your desktop into a streamlined and efficient workspace. Enjoy reliable and flexible network connectivity with the integrated gigabit Ethernet port, while the latest USB 3.2 Type-C connectivity makes dual-monitor setup a breeze. That’s not all, the integrated USB hub also provides single-cable simplicity for connecting and charging your peripherals and accessories. A best-in-class ergonomic design features 40-degree tilt and bi-directional pivot so your screen and workspace are as comfortable as you need. In addition, the included vDisplay software gives you quick and easy OSD control, as well as customized screen templates for easy multi-tasking. This monitor is also shipped in eco-friendly biodegradable packaging, along with an easy-to-install quick release stand that makes for quick deployment and a lower total cost of ownership.
- Docking monitor featuring USB Type-C and Ethernet
- Daisy chain enabled
- Flexible connectivity with HDMI, DP, DP out, USB Type-C, Ethernet, and USB 3.2
- Ergonomic design including 40° tilt, 130mm height adjustment, swivel and pivot
- Three-sided frameless bezel
| DISPLAY | |
| DISPLAY SIZE (IN.) | 24 |
| VIEWABLE AREA (IN.) | 23.8 |
| PANEL TYPE | IPS |
| RESOLUTION | 1920 x 1080 |
| RESOLUTION TYPE | Full HD (1920x1080) |
| STATIC CONTRAST RATIO | 1,000:1 |
| DYNAMIC CONTRAST RATIO | 50,000,000:1 |
| LIGHT SOURCE | WLED |
| BRIGHTNESS | 250 cd/m2 |
| COLORS | 16.7M |
| COLOR SPACE SUPPORT | 6 bits |
| ASPECT RATIO | 16:9 |
| RESPONSE TIME (TYPICAL GTG) | 15ms |
| RESPONSE TIME (GTG W/OD) | 5ms |
| VIEWING ANGLES | 178º horizontal, 178º vertical |
| BACKLIGHT LIFE (HOURS) | 30,000 |
| PANEL SURFACE | Anti-glare, Hard coating (3H) |
| COMPATIBILITY | |
| PC RESOLUTION (MAX) | 1920x1080 |
| MAC® RESOLUTION (MAX) | 1920x1080 |
| CONNECTOR | |
| USB TYPE A | 2 |
| USB TYPE B | 1 |
| USB TYPE C | 1 |
| ETHERNET LAN (RJ45) | 1 |
| HDMI 1.4 IN | 1 |
| DISPLAYPORT | 1 |
| DISPLAYPORT OUT | 1 |
| AUDIO | |
| INTERNAL SPEAKERS | 2W (x2) |
| POWER | |
| ECO MODE (CONSERVE) | 10.0W |
| ECO MODE (OPTIMIZED) | 11.7W |
| CONSUMPTION (TYPICAL) | 13.7W |
| CONSUMPTION (MAX) | 17.4W |
| VOLTAGE | AC 100-240V (universal), 50-60Hz |
| STAND-BY | 0.3W |
| POWER SUPPLY | Internal |
| ADDITIONAL HARDWARE | |
| KENSINGTON LOCK SLOT | 1 |
| CONTROLS | |
| PHYSICAL CONTROLS | 1,2,3,4,5,6 (Power) |
| ON SCREEN DISPLAY | Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality) |
| OPERATING CONDITIONS | |
| TEMPERATURE | 32-104º F (0 - 40º C) |
| HUMIDITY (NON-CONDENSING) | 20-90% |
| MOUNT | |
| VESA COMPATIBLE | 100 x 100 mm |
| VIDEO SIGNAL | |
| FREQUENCY HORIZONTAL | 15 ~ 82 KHz |
| FREQUENCY VERTICAL | 24 ~ 75 Hz |
| VIDEO INPUT | |
| DIGITAL SYNC | TMDS for HDMI (v1.4), PCI-E for DisplayPort (v1.2), Micro-Packet for USB Type C |
| ERGONOMICS | |
| HEIGHT ADJUST | 130 mm / 5.1 in |
| SWIVEL | 120º |

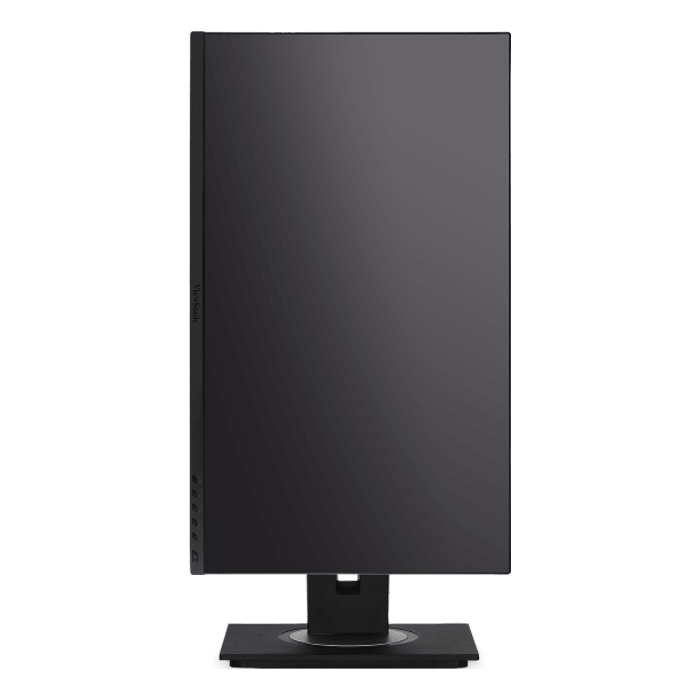

| PIVOT (RIGHT/LEFT) | 90º / 90º |
| TILT (FORWARD/BACK) | 40º / 5º |
| WEIGHT (IMPERIAL) | |
| NET (LBS) | 14.1 |
| NET WITHOUT STAND (LBS) | 8.8 |
| GROSS (LBS) | 20.7 |
| WEIGHT (METRIC) | |
| NET (KG) | 6.4 |
| NET WITHOUT STAND (KG) | 4.0 |
| GROSS (KG) | 9.4 |
| DIMENSIONS (IMPERIAL) (WXHXD) | |
| PACKAGING (IN.) | 23.4 x 8.3 x 15.6 |
| PHYSICAL (IN.) | 21.2 x 16.0 x 8.0 |
| PHYSICAL WITHOUT STAND (IN.) | 21.2 x 12.6 x 2.0 |
| DIMENSIONS (METRIC) (WXHXD) | |
| PACKAGING (MM) | 595.0 x 210.0 x 396.0 |
| PHYSICAL (MM) | 539.0 x 406.2 x 202.0 |
| PHYSICAL WITHOUT STAND (MM) | 539.0 x 320.0 x 52.0 |
| GENERAL | |
| REGULATIONS | cTUVus, FCC-B, ICES003, Energy Star Certified, EPEAT Certified, MX-CoC, Mexico Energy |
| PACKAGE CONTENTS | VG2456 Display, Power Cable, DP to DP Cable, USB Type C Cable, USB 3.2 Uplink Cable, Quick Start Guide |
| RECYCLE/DISPOSAL | Please dispose of in accordance with local, state or federal laws. |
| WARRANTY | Three-year limited warranty on parts, labor and backlight |
