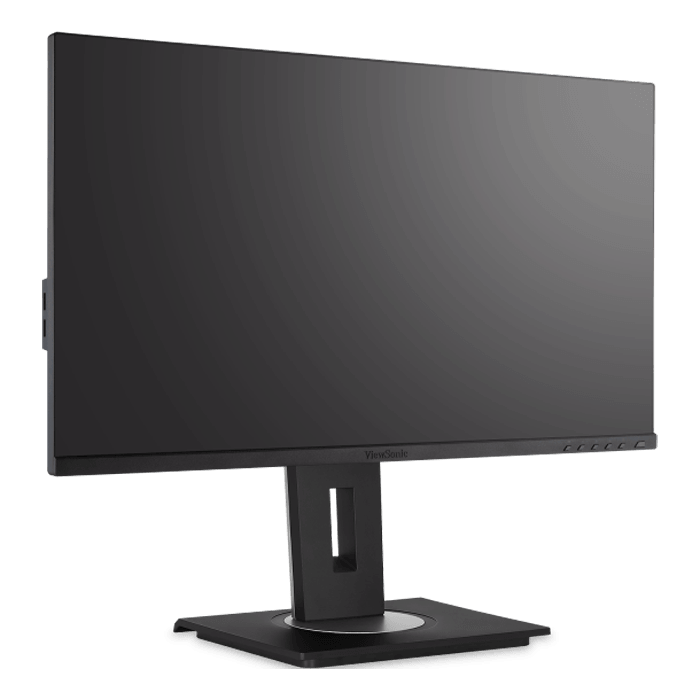

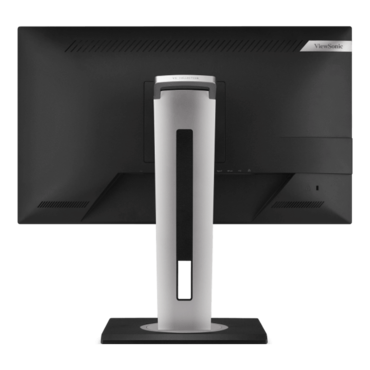

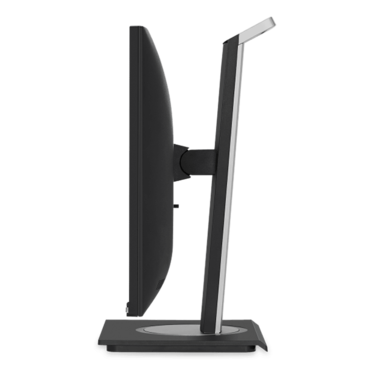

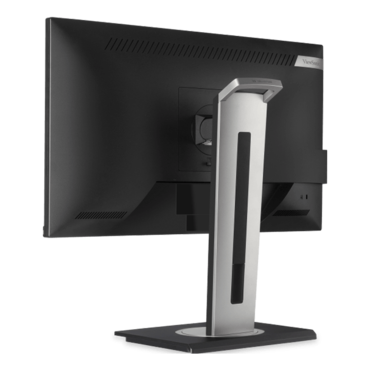

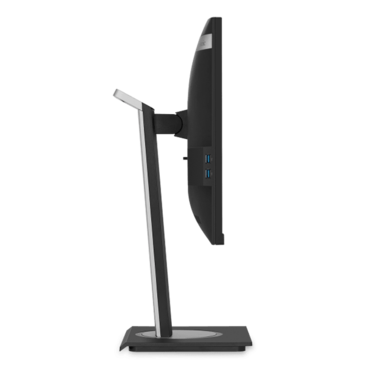

Designed to boost productivity and maximize output, the ViewSonic® VG2456a is a 24” docking monitor that transforms your desktop into a streamlined and efficient workspace. Enjoy reliable and flexible network connectivity with the integrated gigabit Ethernet port, while the latest USB-C connectivity makes dual-monitor setup a breeze and provides up to 90W power delivery to your laptop. That’s not all, the integrated USB hub also provides single-cable simplicity for connecting and charging your peripherals and accessories. A best-in-class ergonomic design features 40-degree tilt and bi-directional pivot so your screen and workspace are as comfortable as you need. In addition, the included vDisplay software gives you quick and easy OSD control, as well as customized screen templates for easy multi-tasking. This monitor is also shipped in eco-friendly biodegradable packaging, along with an easy-to-install quick release stand that makes for quick deployment and a lower total cost of ownership.
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
ViewSonic’s unique ViewMode feature offers “Game,” “Movie,” “Web,” “Text,” and “Mono” presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
This is an ENERGY STAR certified product that can save on energy costs* while reducing greenhouse gases.
*Energy savings may vary based on actual usage and other factors.
With EPEAT Certification, this monitor delivers a reduced environmental impact over the complete product lifecycle, making it a great eco-friendly, long-term investment.
Have peace of mind in the quality and reliability of your ViewSonic monitor—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.
DISPLAY | |
DISPLAY SIZE (IN.) | 24 |
VIEWABLE AREA (IN.) | 23.8 |
PANEL TYPE | IPS |
RESOLUTION | 1920 x 1080 |
RESOLUTION TYPE | Full HD (1920x1080) |
STATIC CONTRAST RATIO | 1,000:1 |
DYNAMIC CONTRAST RATIO | 50,000,000:1 |
LIGHT SOURCE | LED |
BRIGHTNESS | 250 cd/m2 |
COLORS | 16.7M |
COLOR SPACE SUPPORT | 6 bit + A-FRC |
ASPECT RATIO | 16:9 |
RESPONSE TIME (TYPICAL GTG) | 5ms |
VIEWING ANGLES | 178º horizontal, 178º vertical |
BACKLIGHT LIFE (HOURS) | 30,000 |
PANEL SURFACE | Anti-Glare type, Hard-coating (3H), Haze 25% |
COMPATIBILITY | |
PC RESOLUTION (MAX) | 1920 x 1080 |
MAC® RESOLUTION (MAX) | 1920 x 1080 |
CONNECTOR | |
USB TYPE A | 2 |
USB TYPE B | 1 |
USB TYPE C | 1 |
ETHERNET LAN (RJ45) | 1 |
HDMI 1.4 IN | 1 |
DISPLAYPORT | 1 |
DISPLAYPORT OUT | 1 |
AUDIO | |
INTERNAL SPEAKERS | 2W (x2) |
POWER | |
ECO MODE (CONSERVE) | 18W |
ECO MODE (OPTIMIZED) | 21W |
CONSUMPTION (TYPICAL) | 24W |
CONSUMPTION (MAX) | 46W |
VOLTAGE | AC 100-240V (universal), 50-60Hz |
STAND-BY | 0.5W |
POWER SUPPLY | Internal |
CONTROLS | |
PHYSICAL CONTROLS | Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power) |
ON SCREEN DISPLAY | Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu |
OPERATING CONDITIONS | |
TEMPERATURE | 32-104º F (0 - 40º C) |
HUMIDITY (NON-CONDENSING) | 20-90% |
MOUNT | |
VESA COMPATIBLE | 100 x 100 mm |
VIDEO SIGNAL | |
FREQUENCY HORIZONTAL | 15 ~ 82 KHz |
FREQUENCY VERTICAL | 50 ~ 75 Hz |
ERGONOMICS | |
HEIGHT ADJUST | 130 mm / 5.1 in |
SWIVEL | 120º |
PIVOT (RIGHT/LEFT) | 90º / 90º |
TILT (FORWARD/BACK) | 5º / 40º |
WEIGHT (IMPERIAL) | |
NET (LBS) | 13.9 |
NET WITHOUT STAND (LBS) | 8.6 |
GROSS (LBS) | 20.3 |
WEIGHT (METRIC) | |
NET (KG) | 6.3 |
NET WITHOUT STAND (KG) | 3.9 |
GROSS (KG) | 9.2 |
DIMENSIONS (IMPERIAL) (WXHXD) | |
PACKAGING (IN.) | 23.4 x 8.3 x 15.6 |
PHYSICAL (IN.) | 21.2 x 15.99~20.15 x 8.0 |
PHYSICAL WITHOUT STAND (IN.) | 21.2 x 12.6 x 2.0 |
DIMENSIONS (METRIC) (WXHXD) | |
PACKAGING (MM) | 595.0 x 210.0 x 396.0 |
PHYSICAL (MM) | 539.0 x 406.19~511.9 x 202.0 |
PHYSICAL WITHOUT STAND (MM) | 539.0 x 320.0 x 52.0 |
GENERAL | |
REGULATIONS | cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Silver, CEC, MX-CoC, Mexico Energy |
PACKAGE CONTENTS | VG2456a Display, Power Cable, DisplayPort Cable, USB Type C cable, USB A/B Cable, Quick Start Guide |
RECYCLE/DISPOSAL | Please dispose of in accordance with local, state or federal laws. |
WARRANTY | Three-year limited warranty on parts, labor and backlight |
