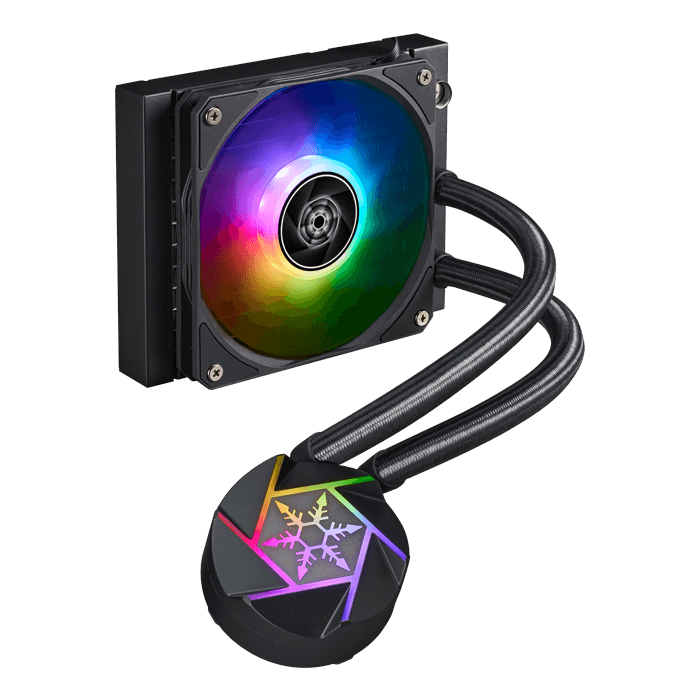

- 38mm total thickness for fan and radiator
- SilverStone’s unique 22mm radiator design, allows for effective heat dissipation in cases with space constraints.
- Water pump integrated within the radiator
- Aluminum alloy cavity pump strengthens the overall structure
- Three phase, six pole motor design
- 9-bladed pressure optimized fan blades
- Rotatable CPU water block
- Integrated rubber padding on fan mounts to further reduce vibrational noise
- ARGB controller included with 10 lighting modes, and adjustable brightness and color changing speed
Model No. | SST-VD120-SLIM | |
Application |
Intel LGA 115X/1200/1700/2011/2066 AMD Socket AM4/AM5 |
|
Water block | Dimension |
74mm (W) x 41mm (H) x 74mm (D) 2.9" (W) x 1.6" (H) x 2.9" (D) |
Material | Copper base with plastic body | |
Pump | Motor speed | 4200 ±10% RPM |
Rated Voltage | 12V | |
Rated Current | 0.39A | |
Connectors | 2510 - 3 pin & 4-1 pin ARGB (5V LED) | |
Radiator | Dimension |
120mm (W) x 22mm (H) x 154mm (D) 4.72" (W) x 0.87" (H) x 6.02" (D) |
Material | Aluminum | |
Tube | Length | 400mm |
Material | Rubber | |
Fan | Dimension |
120mm (W) x 16mm (H) x 120mm (D) 4.72" (W) x 0.63" (H) x 4.72" (D) |
Speed | 300 ~ 1800 RPM | |
Noise level | 15.9 ~ 33.9 dBA | |
Rated Voltage | 12V | |
Max airflow | 66.83 CFM | |
Max air pressure | 2.59 mmH2O | |
Connector | 4 pin PWM & 4-1 pin ARGB (5V LED) | |
Remark | * Please check to make sure the control box and motherboard RGB port that you want to connect are the same as VD120-SLIM’s RGB port definition. Incorrect connection may cause malfunction or damage. |
