VX882e, Internal, 8 channels, 24-bit 192kHz, PCI Express 3.0 x1, Sound Card
Quantity:
- SKU: 14584846
- Manufacturer: Digigram
- MPN: VB1873A0201
- Availability: CONTACT US
Starting At
$3,316.78
VX882e, Internal, 8 channels, 24-bit 192kHz, PCI Express 3.0 x1, Sound Card

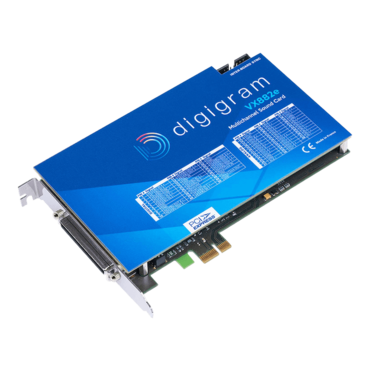

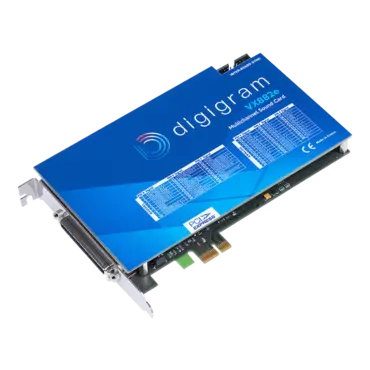

Digigram VX882e is a professional linear (PCM) multichannel sound card based on the PCI Express bus interface. It is designed for use in any professional system running under Windows or Linux. It is a reference card in radio broadcast automation for applications such as automated recording and play-out and multichannel production.
| Form Factor | Internal |
| Channels of I/O | 8 Input / 8 Output |
| Max Sample Rate/Resolution | 192 kHz / 24-Bit |
| Number of Mic Preamps | None |
| Connectivity | |
| Analog Audio I/O |
8 x XLR 3-Pin Input (on Included Breakout Cable) 8 x XLR 3-Pin Output (on Included Breakout Cable) |
| Digital Audio I/O |
4 x XLR 3-Pin AES3 / S/PDIF Input (on Included Breakout Cable) 4 x XLR 3-Pin AES3 / S/PDIF Output (on Included Breakout Cable) |
| Host Connection / USB | PCI |
| Sync I/O |
1 x XLR 3-Pin AES11 Input (on Breakout Cable) 1 x BNC Word Clock Input (on Breakout Cable) 1 x BNC Word Clock Output (on Breakout Cable) 1 x BNC Video Sync Input (on Breakout Cable) 1 x RCA Coaxial SMPTE/LTC Input (on Breakout Cable) |
| MIDI I/O | None |
| Performance | |
| Frequency Response | 20 Hz to 20 kHz ±0.2 dB |
| Dynamic Range | 104 dBA |
| THD+N |
Inputs: < -97 dB (1 kHz, at -1 dBFS) Outputs: < -94 dB (1 kHz, at -1 dBFS) |
| Digital Audio | |
| Sample Rates | Up to 192 kHz |
| Bit Depths | 24-Bit |
| Compatibility | |
| OS Compatibility |
Windows XP Windows Server Windows Vista |
| Required Hardware | Available PCIe Card Slot |
| Packaging Info | |
| Package Weight | 4.15 lb |
| Box Dimensions (LxWxH) | 12.7 x 5.8 x 3.9" |
