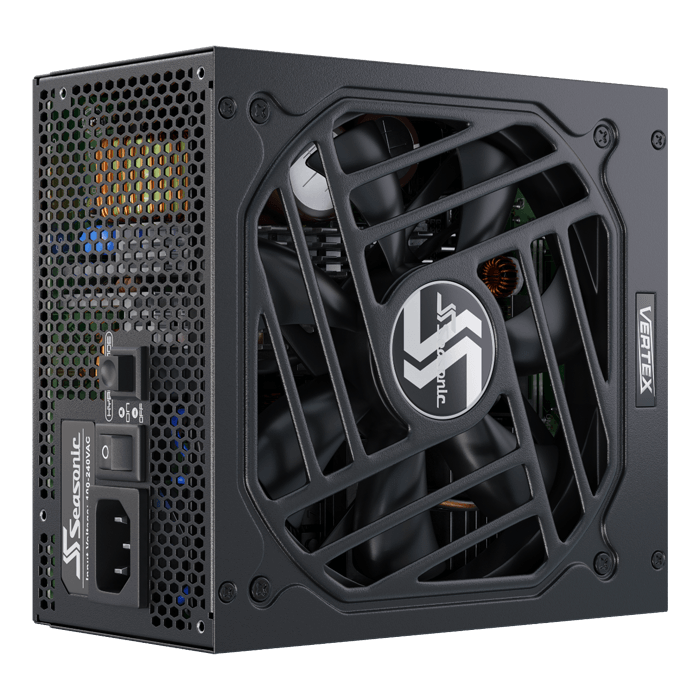

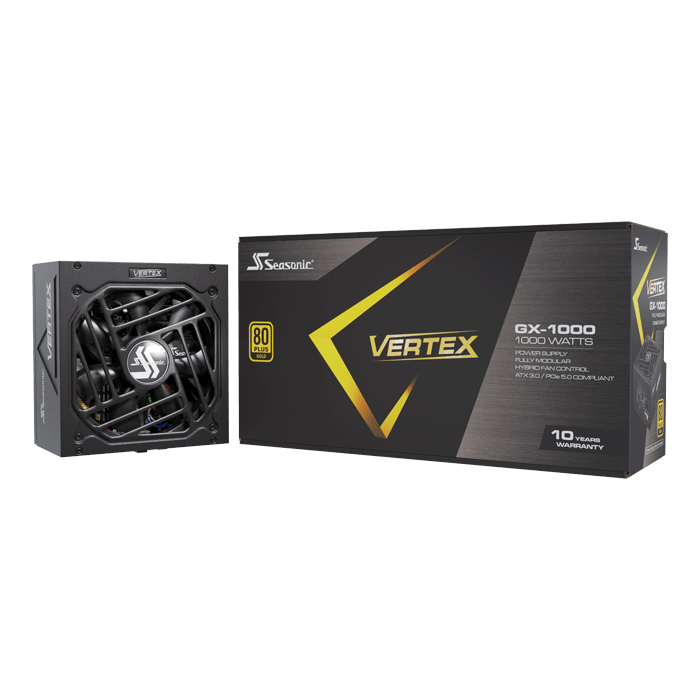

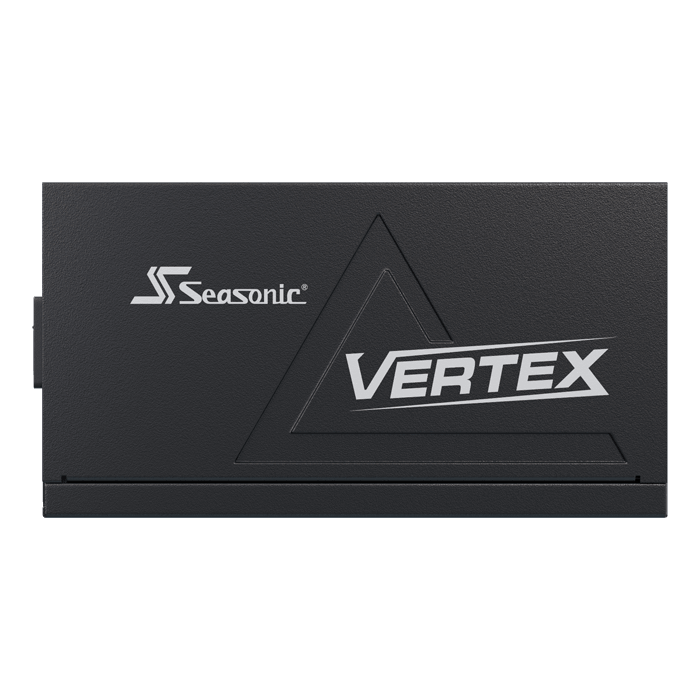

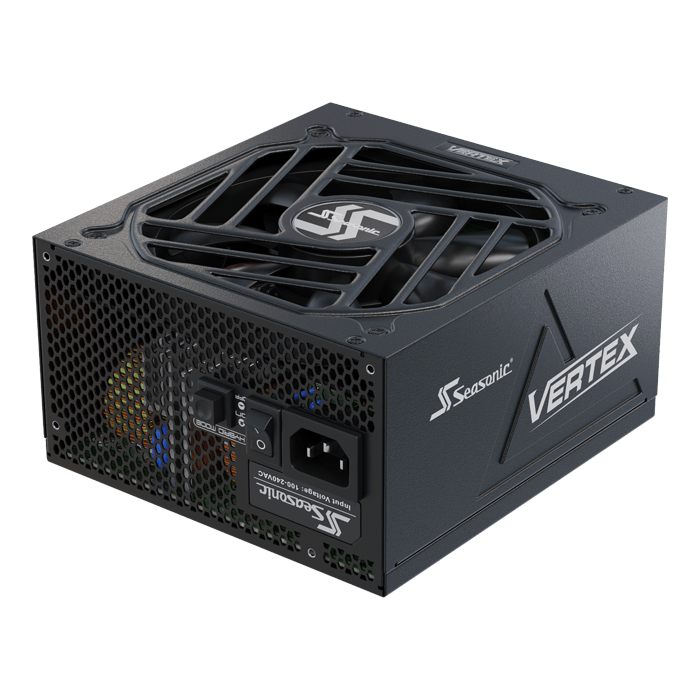

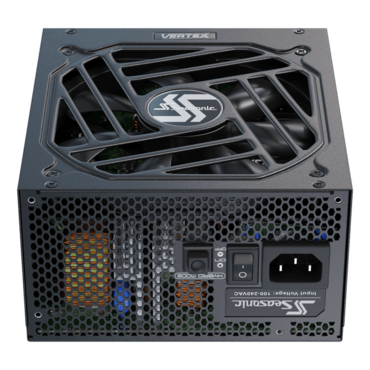

Vertex GX-1000, 80 PLUS Gold 1000W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 15582956
- Manufacturer: SEASONIC
- MPN: VERTEX1000G
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$219.83
Vertex GX-1000, 80 PLUS Gold 1000W, Fully Modular, ATX Power Supply
The new VERTEX Series units will provide 1200 W / 1000 W / 850 W and 750 Watts of true power in both Platinum and Gold levels of efficiency, with all the best features you can expect from a Seasonic power supply:
Full modularity for the best cable management options:
- Added 12VHPWR cable to comply with the new graphic cards

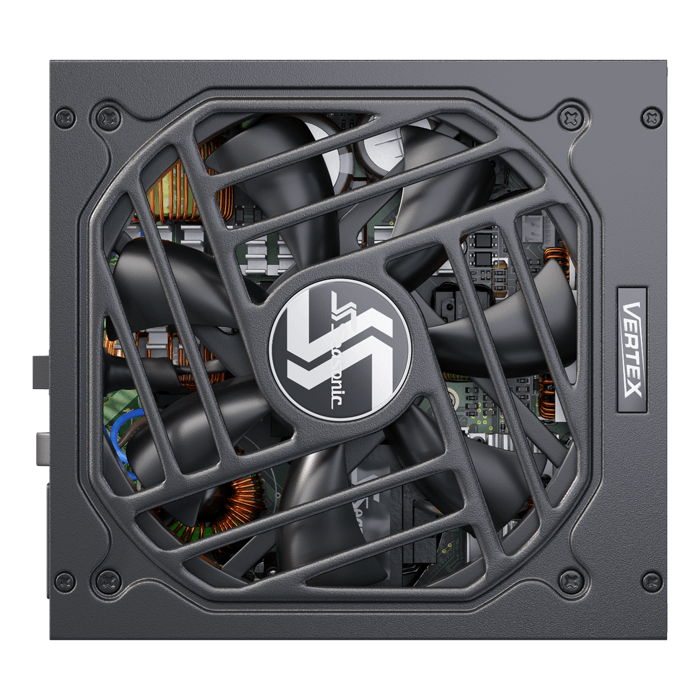

- 135mm Fluid Dynamic Bearing (FDB) fan for quiet operation
- Seasonic Hybrid Silent Fan Control for optimal cooling
- Complete protection features: OPP / OVP / UVP / SCP / OCP / OTP
- 10 years warranty - our commitment to high quality
- Super-High Efficiency, 80 PLUS® Gold Certified
- Fully Modular
- ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)
- Top-Quality 135 mm Fluid Dynamic Bearing Fan
- Premium Hybrid Fan Control
- Tight Voltage Regulation (12 V, 5 V and 3.3 V) [± 3 %]
- Gold Plated High Current Terminal (MB, CPU and PCIe)
- 10 Years Warranty
| Technical Specifications | |||||||
| 80PLUS ® | Gold | ||||||
| Cybenetics Efficiency Level | TBA | ||||||
| Cybenetics Noise Level | TBA | ||||||
| Form Factor | Intel ATX 12 V | ||||||
| Dimensions | 160 mm (L) x 150 mm (W) x 86 mm (H) | ||||||
| Fan Information | Fan Size | 135 mm | |||||
| Fan Control | Premium Hybrid Fan Control | ||||||
| Fan Bearing | Fluid Dynamic Bearing | ||||||
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | ||||||

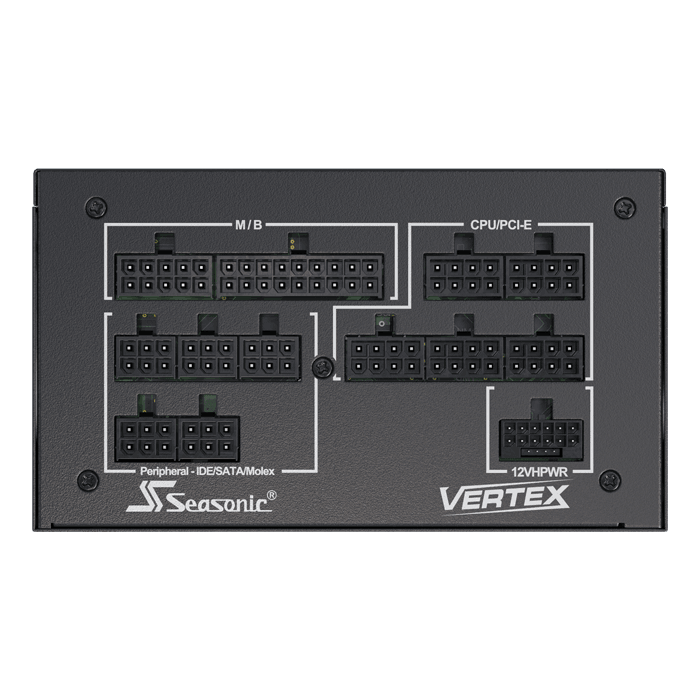

| Cable Information | Modularity | Fully Modular | |||||
| Cable type | Flat black cables | ||||||
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) | |||||
| MTBF @ 25 °C, excl. fan | 150,000 hours | ||||||
| AC Input | Full Range | ||||||
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | ||||||
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE | |||||
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | ||||||
| Warranty | 10 Years | ||||||
| Power Output | |||||||
| AC Input | Voltage: 100 V - 240 V | ||||||
| Current: 13 - 6.5 A | |||||||
| Frequency: 50 Hz - 60 Hz | |||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB | |
| Maximum Power | 25 A | 25 A | 83 A | 0.3 A | 3 A | ||
| 125 W | 996 W | 3.6 W | 15 W | ||||
| Total continuous power | 1000 W | ||||||
