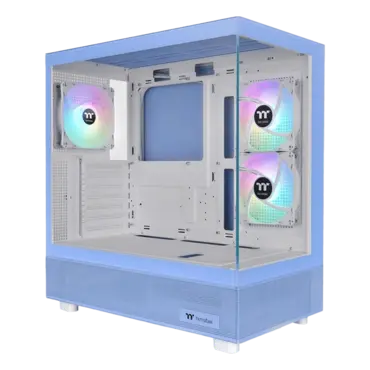

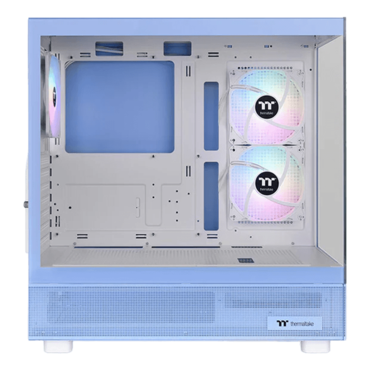

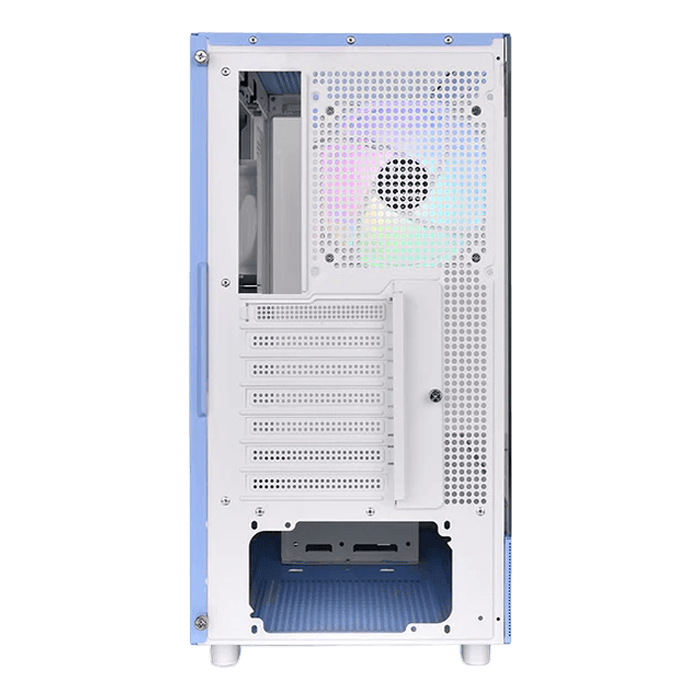

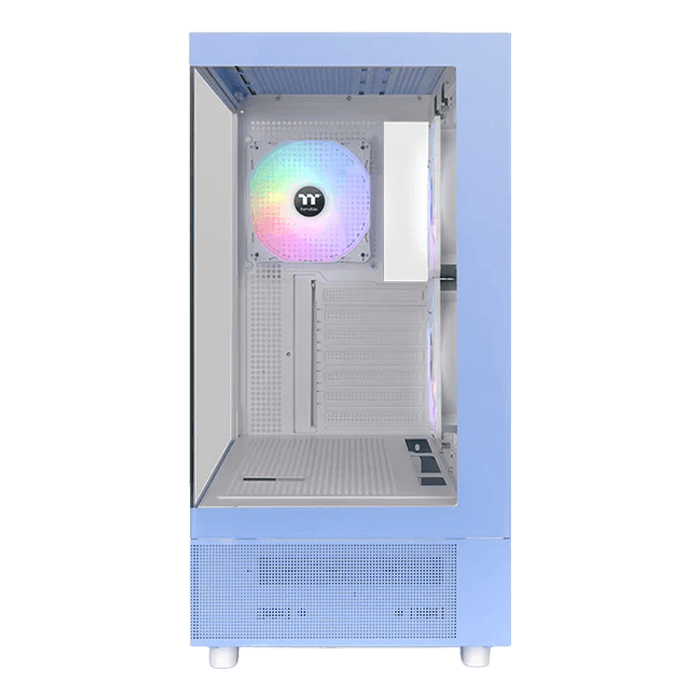

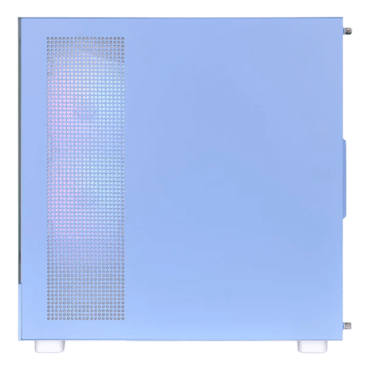

View 270 Plus TG ARGB, Tempered Glass, No PSU, ATX, Hydrangea Blue, Mid Tower Case
Designed to provide gorgeous panoramic viewing angles, the View 270 TG Plus ARGB Hydrangea Blue comes in a mid-tower package, supporting a full ATX motherboard and enough space to accommodate up to 9 fans for cooling. (Three 120mm ARGB Lite Fans pre-installed.)
P/N | CA-1Y7-00MFWN-01 |
Series | View |
Case Type | Mid Tower |
Dimensions | 456 x 230 x 454 mm (18 x 9.1 x 17.9 inch) |
Weight | 6.35 kg / 14 lbs. |
Side Panel | Tempered Glass x 2 |
Color | Hydrangea Blue |
Material | SPCC |
Cooling System | Right(intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2 Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
Drive Bays | 2 x 3.5”, 1 x 2.5” or 2 x 2.5” |
Expansion Slots | 7 |
Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
PSU | Standard PS2 PSU (optional) |
Fan Support | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right (M/B Side): 2 x 120mm, 1 x 120mm Rear: 1 x 120mm, 1 x 140mm Power Cover: 3 x 120mm, 2 x 120mm, 1 x 120mm |
Radiator Support | Top: 1 x 360mm, 1 x 240mm, 1 x 120mm Rear: 1 x 120mm |
Clearance | CPU cooler max height: 180mm VGA max length: 420mm PSU max length: 220mm |
