View 300 MX, Tempered Glass, No PSU, E-ATX, Black, Mid Tower Case

Quantity:
  • SKU: 15097248
  • Manufacturer: THERMALTAKE
  • MPN: CA-1P6-00M1WN-00
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$270.93
Quantity:

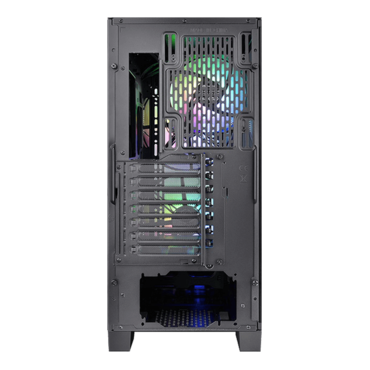

View 300 MX, Tempered Glass, No PSU, E-ATX, Black, Mid Tower Case

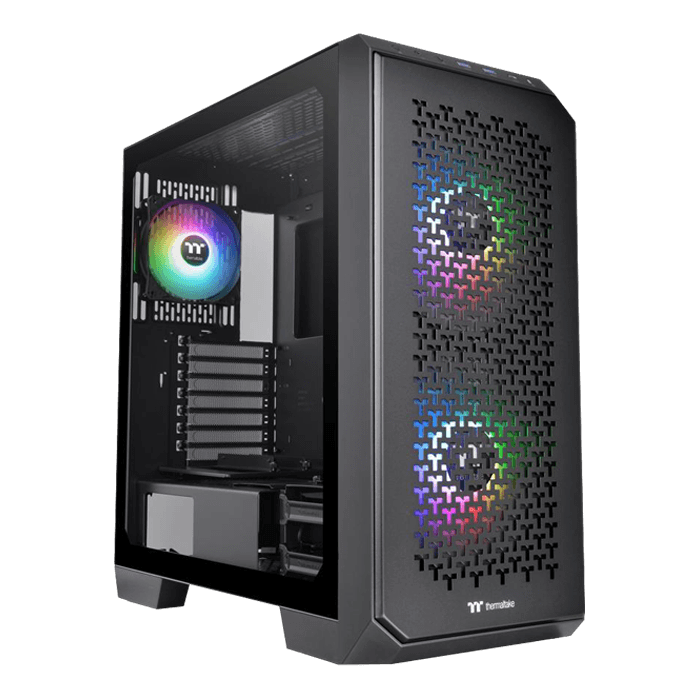

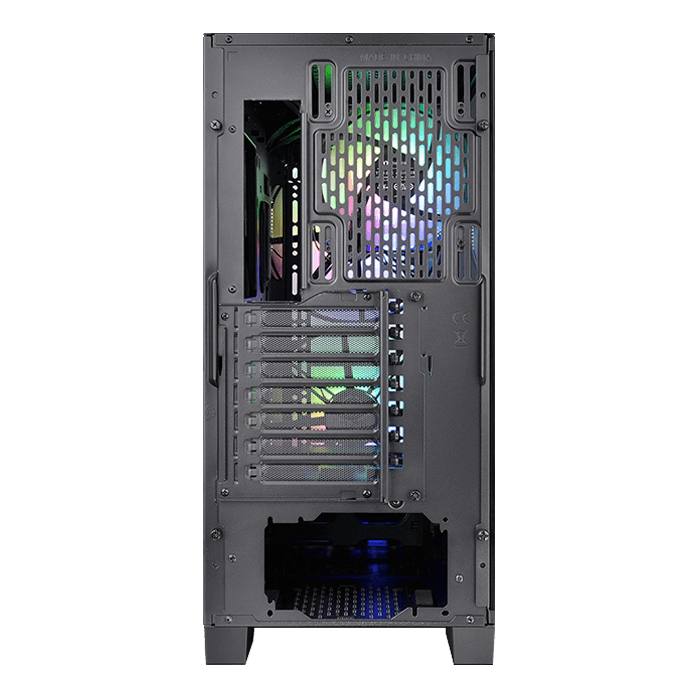

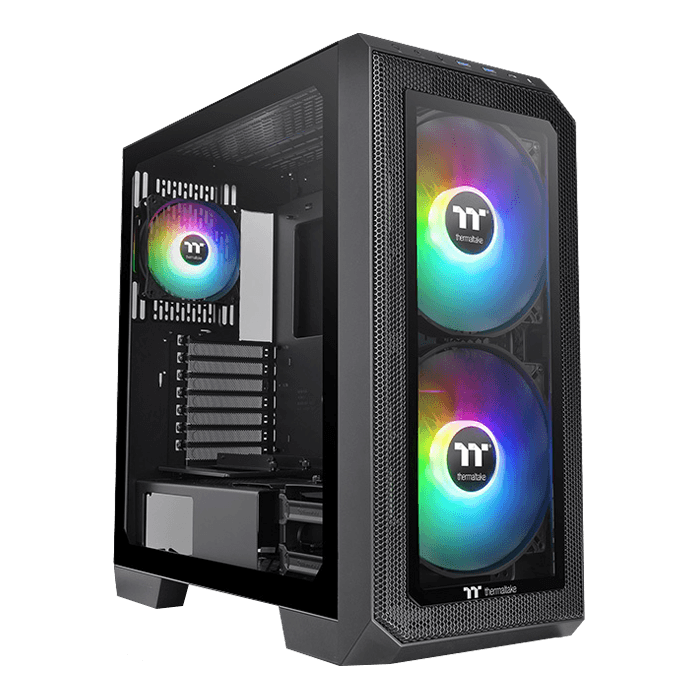

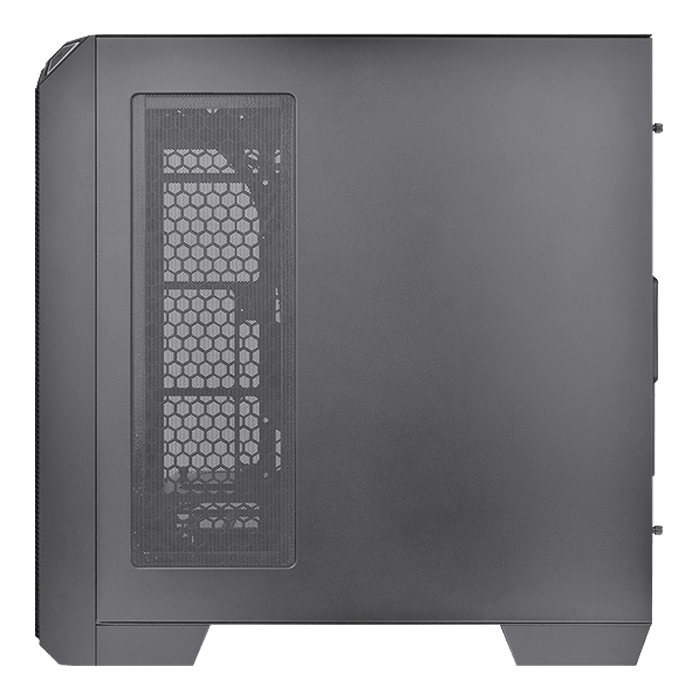

Designed to push the beloved View Series lineup to another level, the View 300 MX Mid-Tower Chassis features two pre-installed 200mm ARGB PWM fans in the front and one 120mm ARGB PWM fan at the rear to provide optimal cooling performance. Noteworthy, the View 300 MX series is the first chassis of the Thermaltake collection that comes with dual front panels, including a tempered glass panel and a perforated metal panel featuring the TT Logo, allowing users to choose their own style. Moreover, the View 300 MX features rotational PCI-E Slots, removable filters, a removable PSU cover, and supports up to E-ATX motherboards (12” x 13”), up to a 360mm Radiator on the front, top and M/B side. These merits make the View 300 MX an eye-catching chassis that is ideal for you to make your next build epic, high-performing, and one of a kind.

P/N CA-1P6-00M1WN-00
SERIES View
MODEL View 300 MX
CASE TYPE Mid Tower
DIMENSION (H X W X D) 505 x 230 x 506 mm
(19.9 x 9.1 x 19.9 inch)
NET WEIGHT 10.4 kg / 22.9 lbs.
SIDE PANEL 4mm Tempered Glass x 1
COLOR Black
MATERIAL SPCC + ABS
COOLING SYSTEM Front(intake): 200 x 200 x 30 mm ARGB PWM fan (1000rpm, 35.5 dBA) x 2
Rear(exhaust): 120 x 120 x 25 mm ARGB PWM fan (1500rpm, 27.2 dBA) x 1
DRIVE BAYS
-ACCESSIBLE
-HIDDEN
2 x 3.5”, 4 x 2.5” or 6 x 2.5”
EXPANSION SLOTS 7 (Rotatable Patented Design)
MOTHERBOARDS 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13” (E-ATX)
I/O PORT USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
FAN SUPPORT Front: 3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
2 x 200mm, 1 x 200mm
Top: 3 x 120mm, 2 x 120mm, 1 x 120mm,
2 x 140mm, 1 x 140mm
1 x 200mm
Right(M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm (Without HDD Rack)
Rear: 1 x 120mm
RADIATOR SUPPORT Front: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Right(M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm(Without HDD Rack)
Rear: 1 x 120mm
CLEARANCE CPU cooler height limitation: 175mm VGA length limitation: 280mm(With reservoir)
400mm(Without reservoir)
PSU length limitation: 200mm
