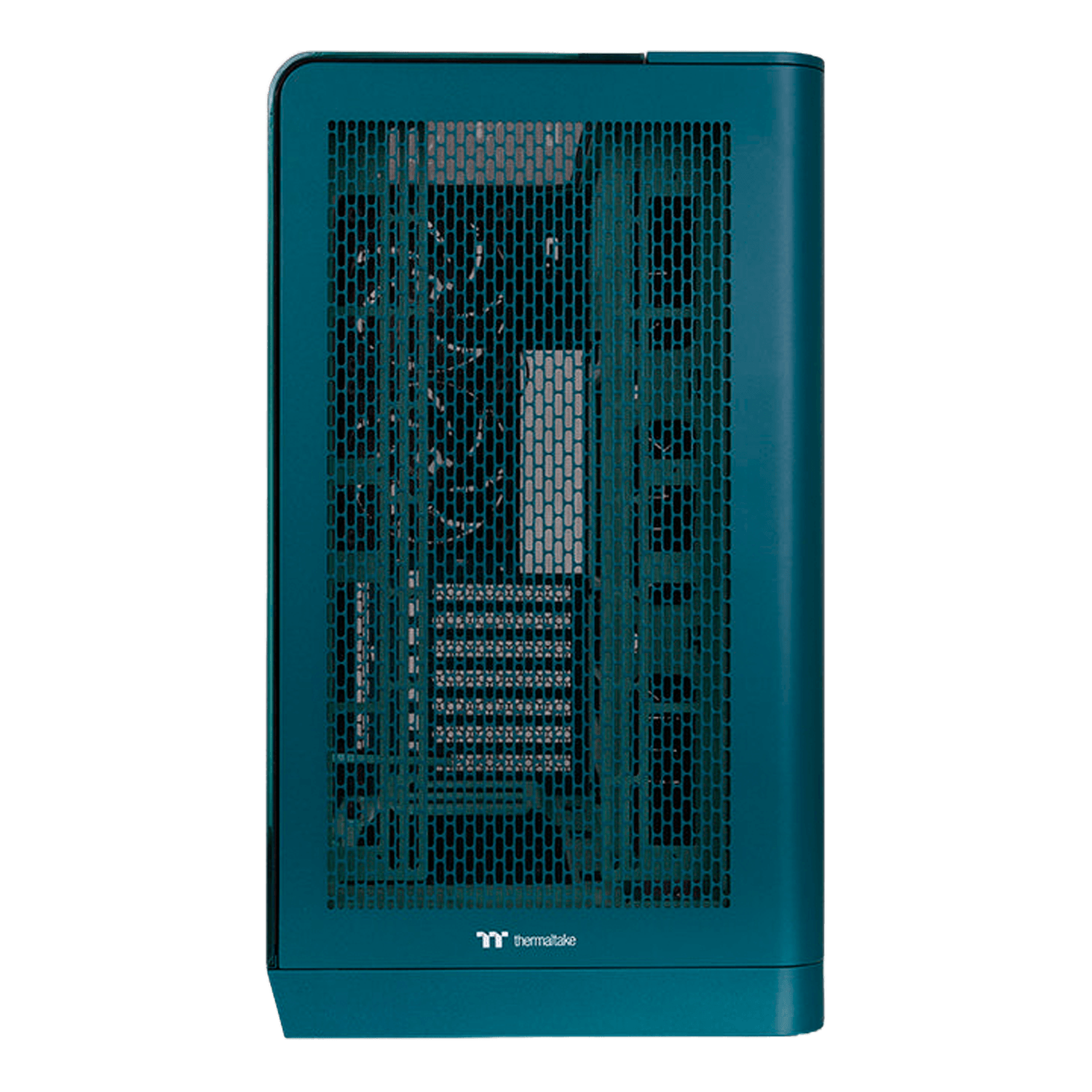

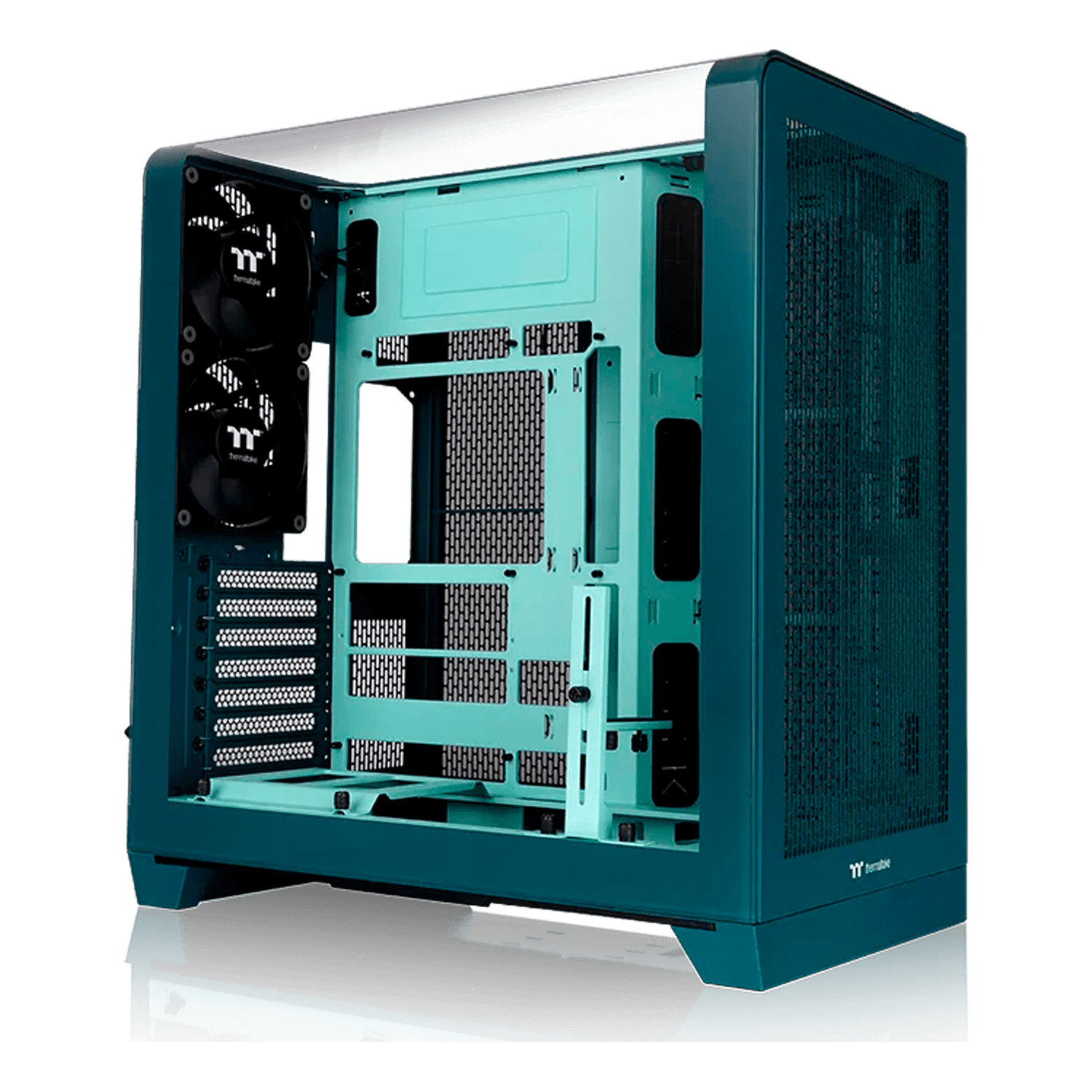

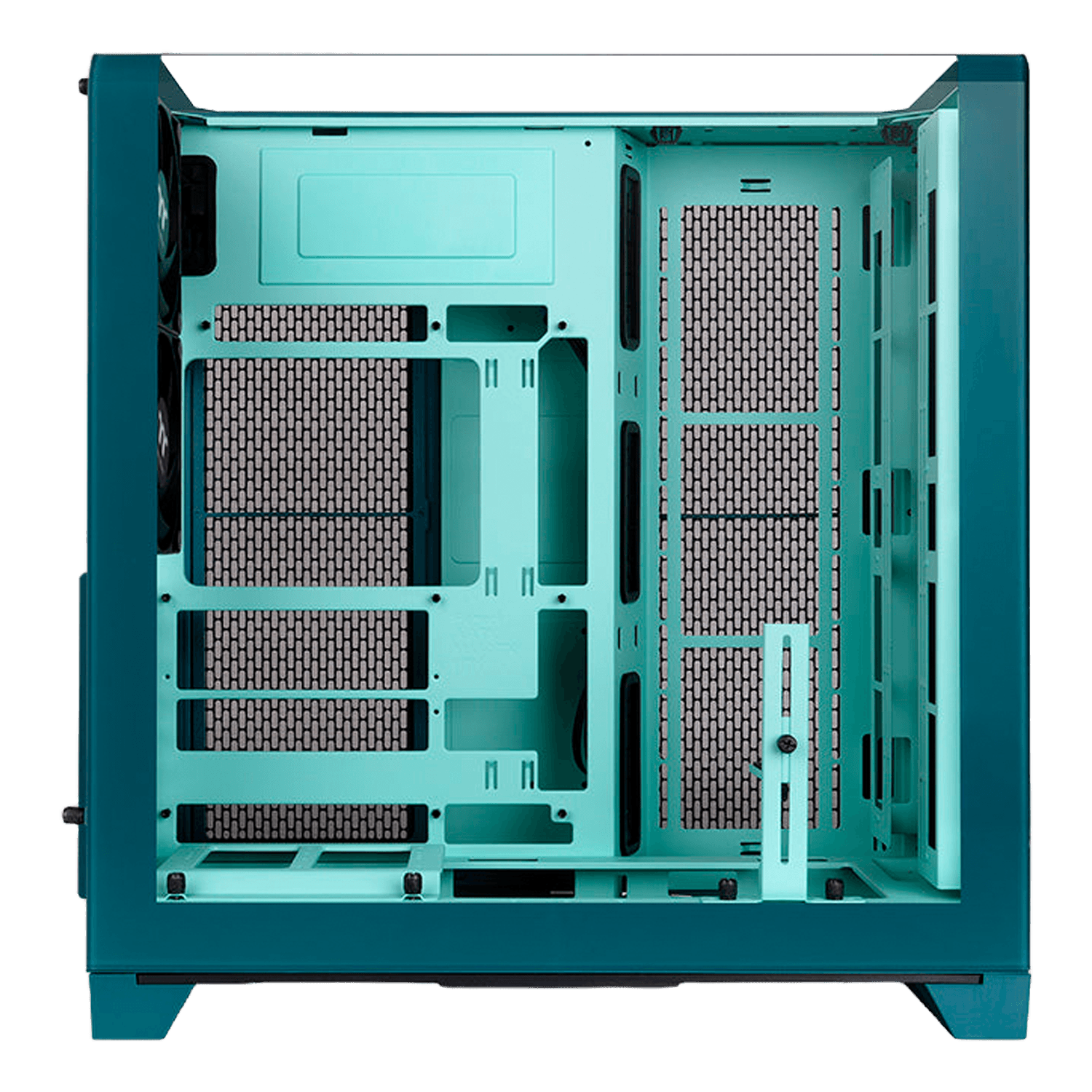

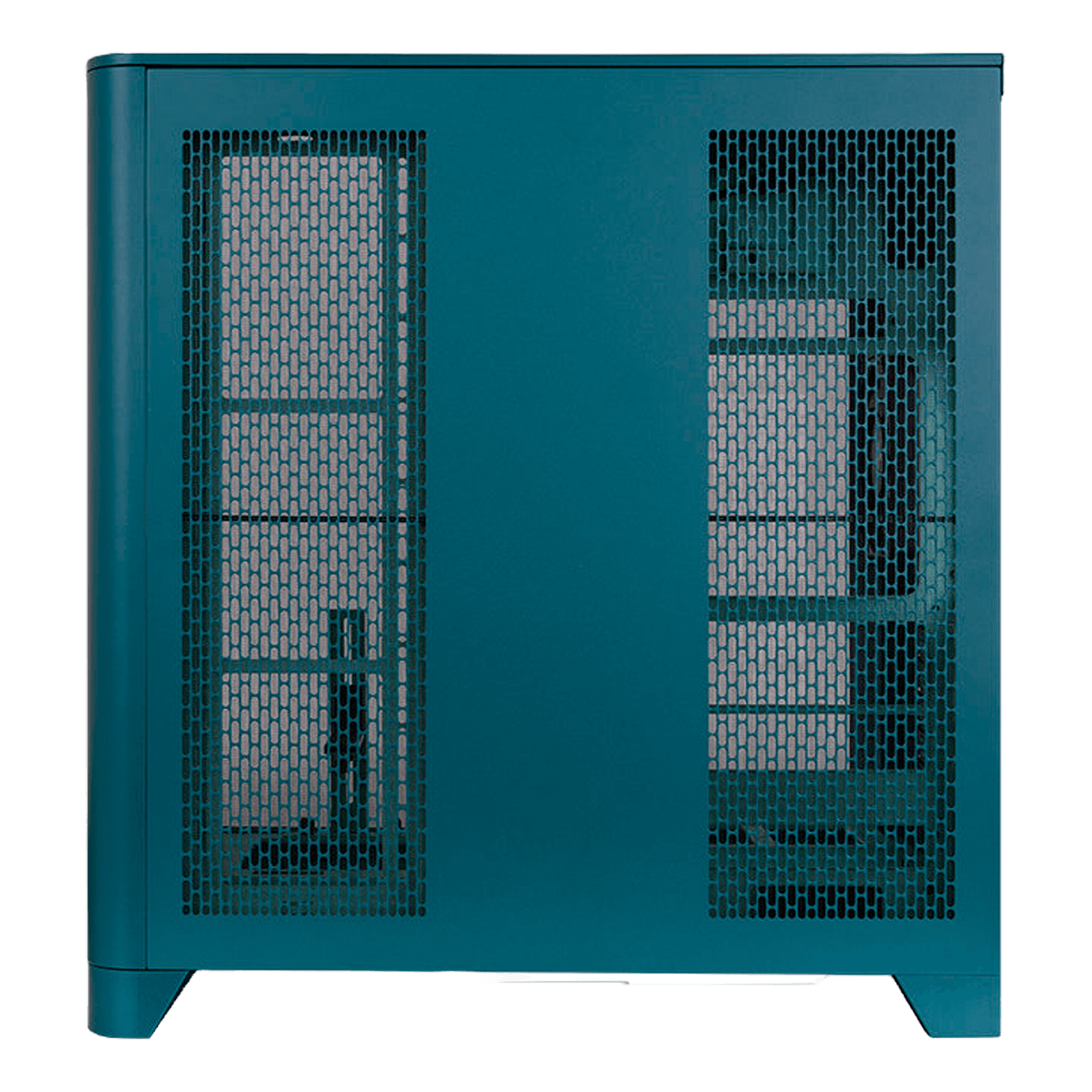

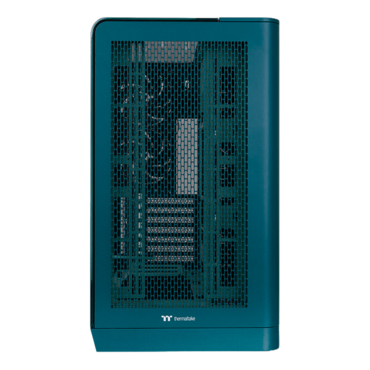

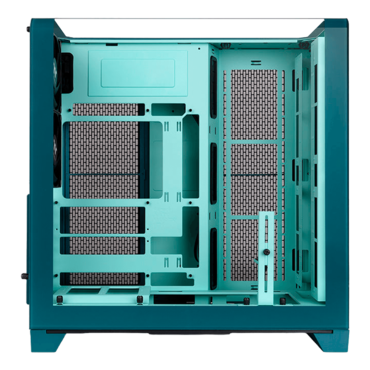

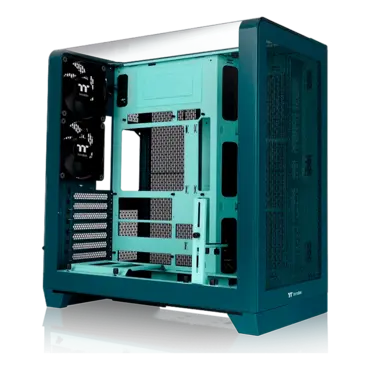

View 390 Air, Tempered Glass, No PSU, ATX, Transformative Teal, Mid Tower Case
- SKU: 20169943
- Manufacturer: THERMALTAKE
- MPN: CA-11F-00MTWN-00
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
View 390 Air, Tempered Glass, No PSU, ATX, Transformative Teal, Mid Tower Case
A throwback to the styling of older View generations, the View 390 Air retains all the sight lines of the original and then surpasses with improved cooling and a curved tempered glass side panel. Supporting components like GPUs up to 420mm in length, radiators up to 360mm in length, and PSUs up to 200mm in length. The updated motherboard tray provides support for both standard and hidden connector motherboards, and the rotatable PCIe tray allows the GPU to be oriented horizontally or vertically.
A throwback to the styling of older View generations, the View 390 Air retains all the sight lines of the original and then surpasses with improved cooling and a curved tempered glass side panel. Supporting components like GPUs up to 420mm in length, radiators up to 360mm in length, and PSUs up to 200mm in length. The updated motherboard tray provides support for both standard and hidden connector motherboards, and the rotatable PCIe tray allows the GPU to be oriented horizontally or vertically.
| P/N | CA-11F-00MTWN-00 |
| Series | View |
| Case Type | Mid Tower |
| Dimensions | 503 x 287 x 485mm (19.80 x 11.30 x 19.1inch) |
| Side Panel | 4mm Tempered Glass x 1 |
| Color | Transformative Teal |
| Material | SPCC |
| Cooling System | Rear (exhaust): 120 x 120 x 25 mm CT120 fan (500~2000rpm, 25.8 dBA) x 2 |
| Drive Bays | 2 x 3.5” , 1 x 2.5” or 3 x 2.5” |
| Expansion Slots | 7 (Rotatable Patented Design) |
| Motherboard |
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) Hidden-Connector Motherboard 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support |
Front: 3 x 120mm 2 x 140mm 2 x 200mm Right: 3 x 120mm Rear: 2 x 120mm Bottom: 3 x 120mm |
| Radiator Support |
Front Side(AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right Side(AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm |
| Clearance |
CPU cooler height limitation: 160mm VGA length limitation: 390mm with Radiator /420mm without Radiator PSU length limitation: 200mm (with 2.5" SSD) 260mm (without 2.5" SSD) |
