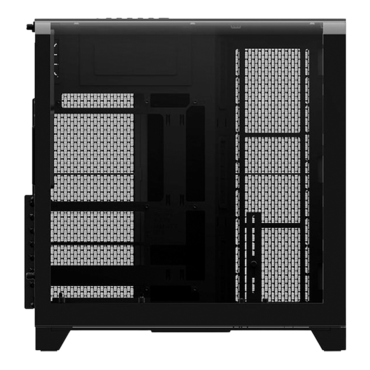

View 390 TG, Tempered Glass, No PSU, ATX, Black, Mid Tower Case
- SKU: 19950391
- Manufacturer: THERMALTAKE
- MPN: CA-11F-00M1WN-01
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
View 390 TG, Tempered Glass, No PSU, ATX, Black, Mid Tower Case

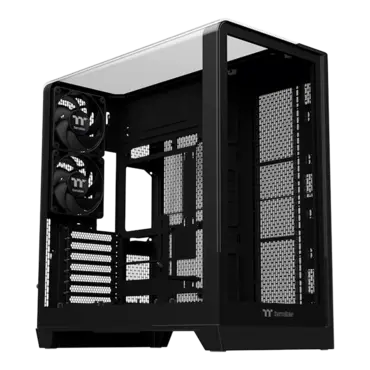

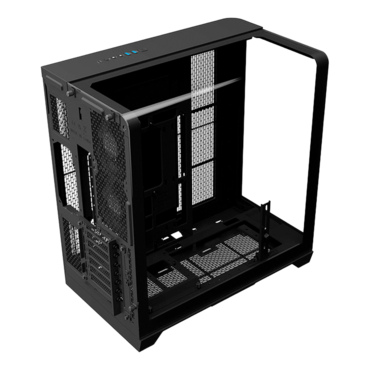

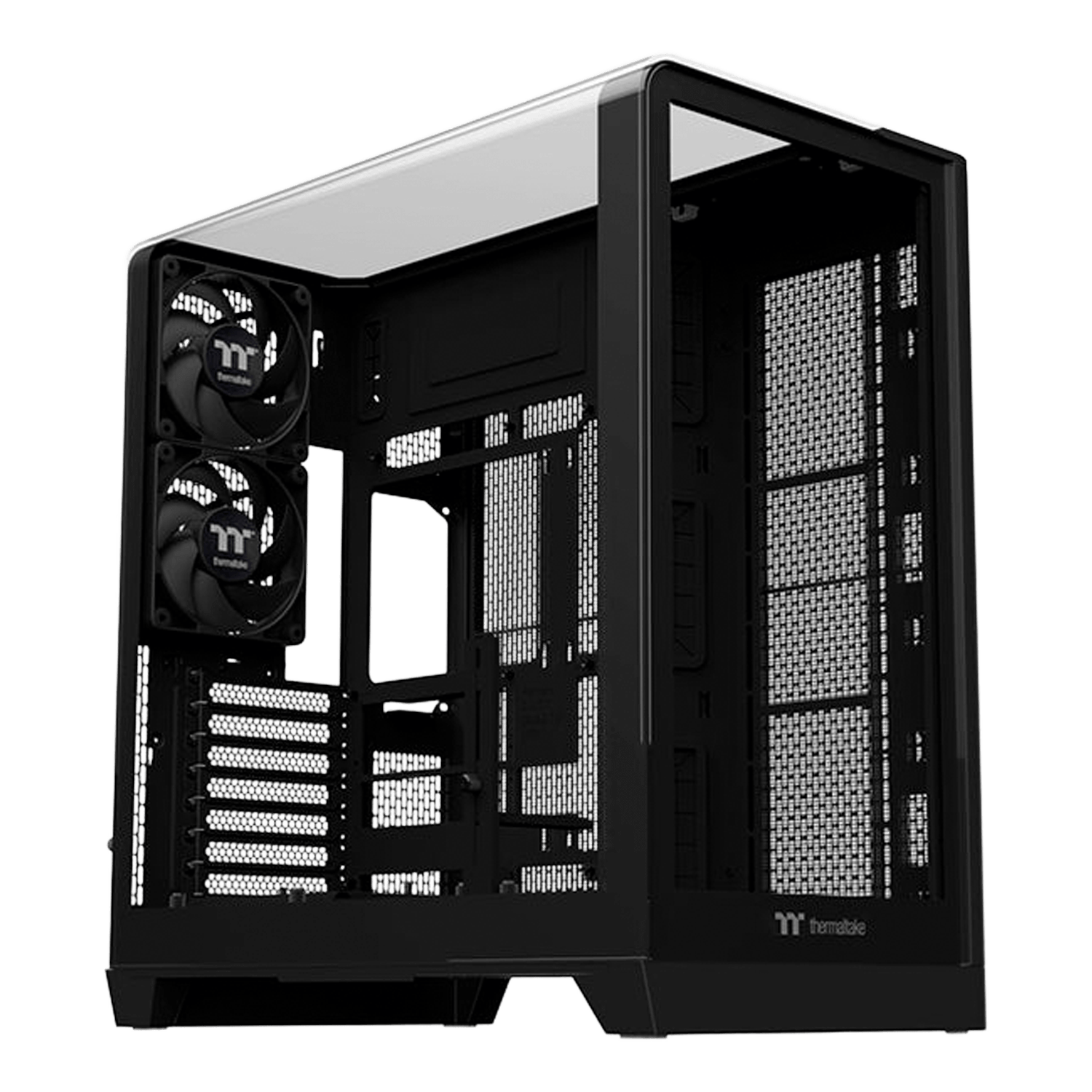

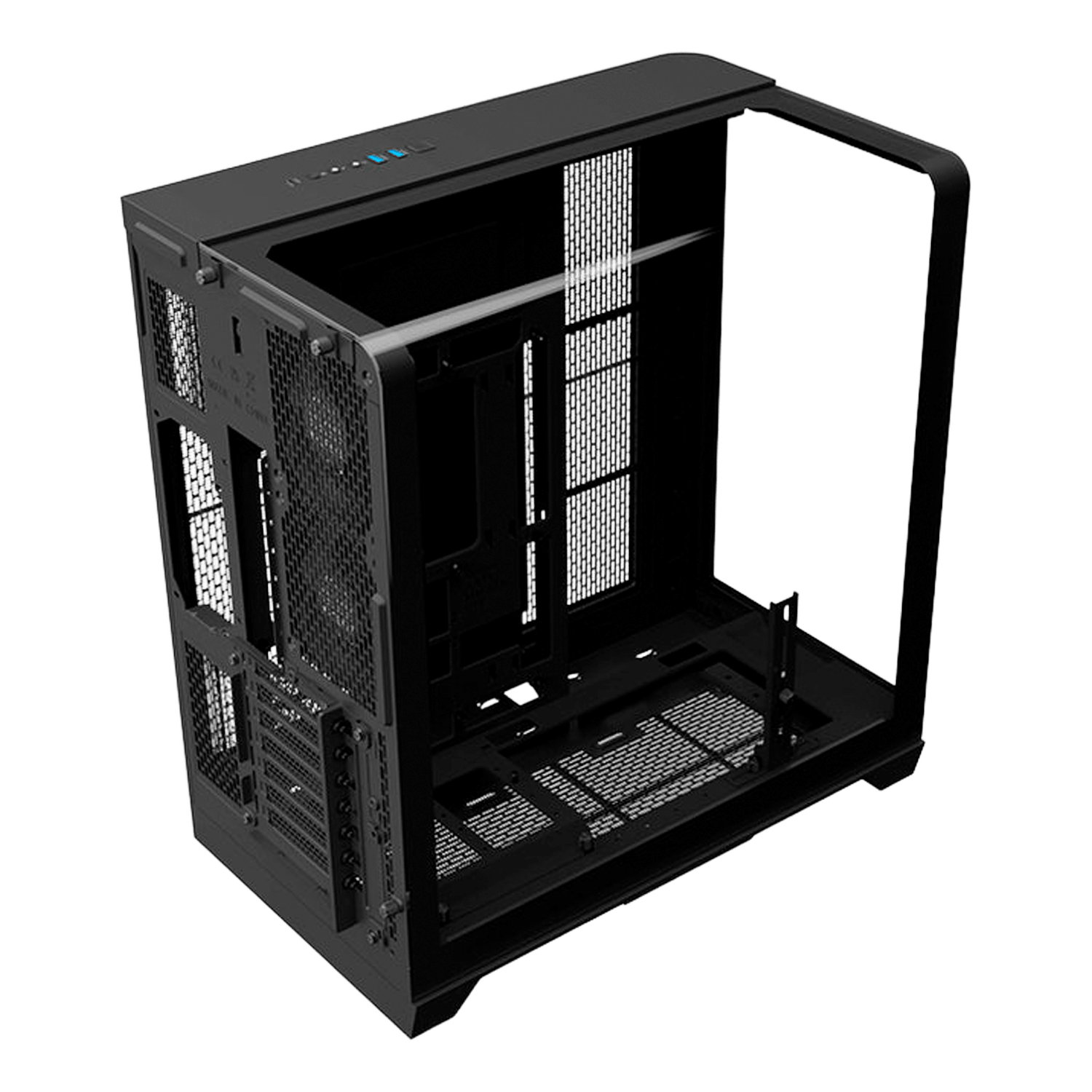

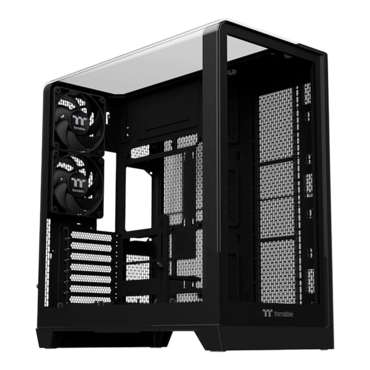

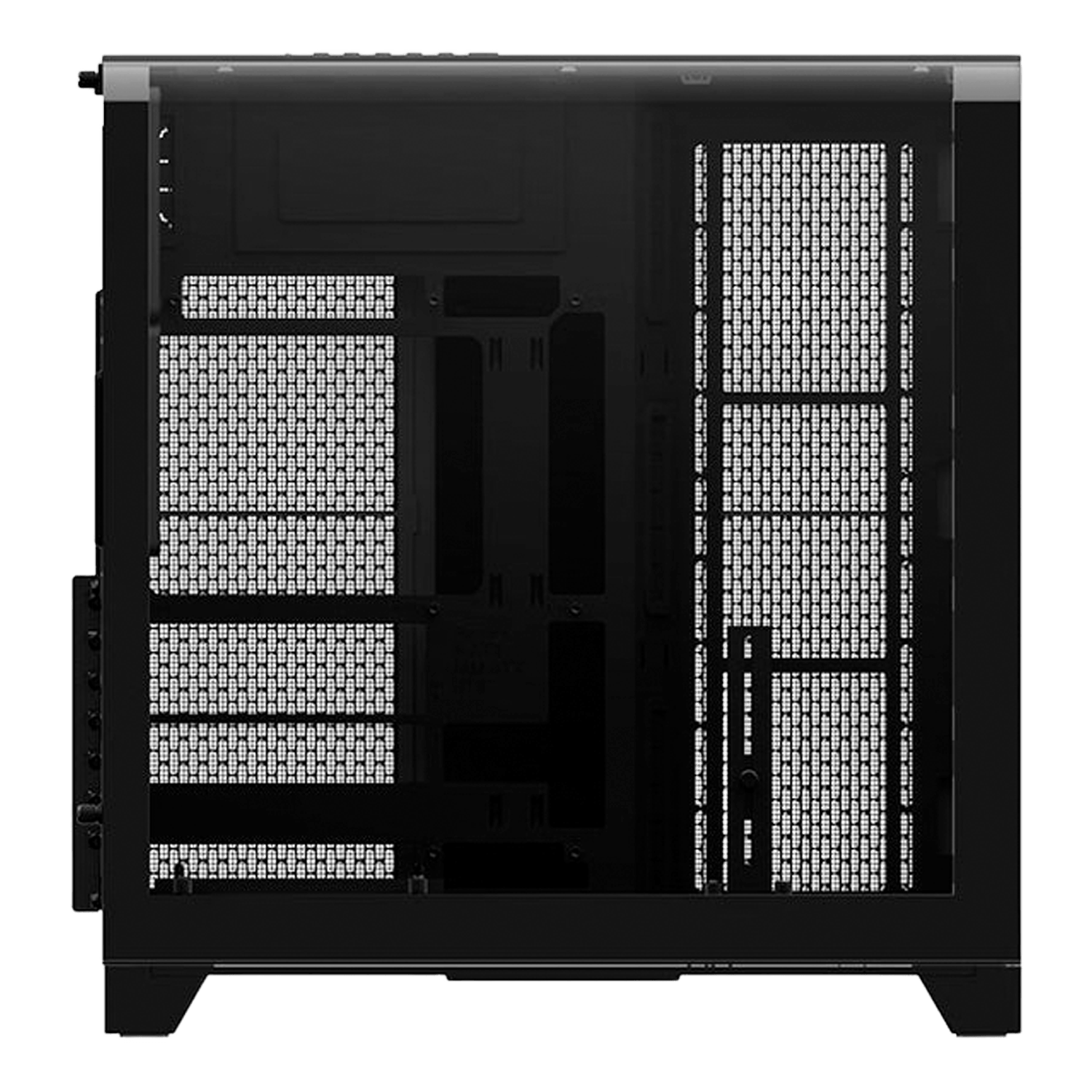

The View 390 TG Mid Tower Chassis is an ATX case featuring a curved panel and a tempered glass panel, rotational PCI-E slots, and two CT120 rear fans. An optional 3.9”/ 6” LCD Screen Kit is available for enhanced visuals.
| P/N | CA-11F-00M1WN-01 |
| Model | View 390 TG |
| Series | View |
| Case Type | Mid Tower |
| Dimensions | 503 x 287 x 485mm (19.80 x 11.30 x 19.1inch) |
| Side Panel | 4mm Tempered Glass x 2 |
| Material | SPCC |

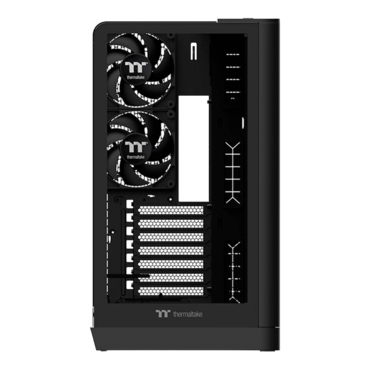

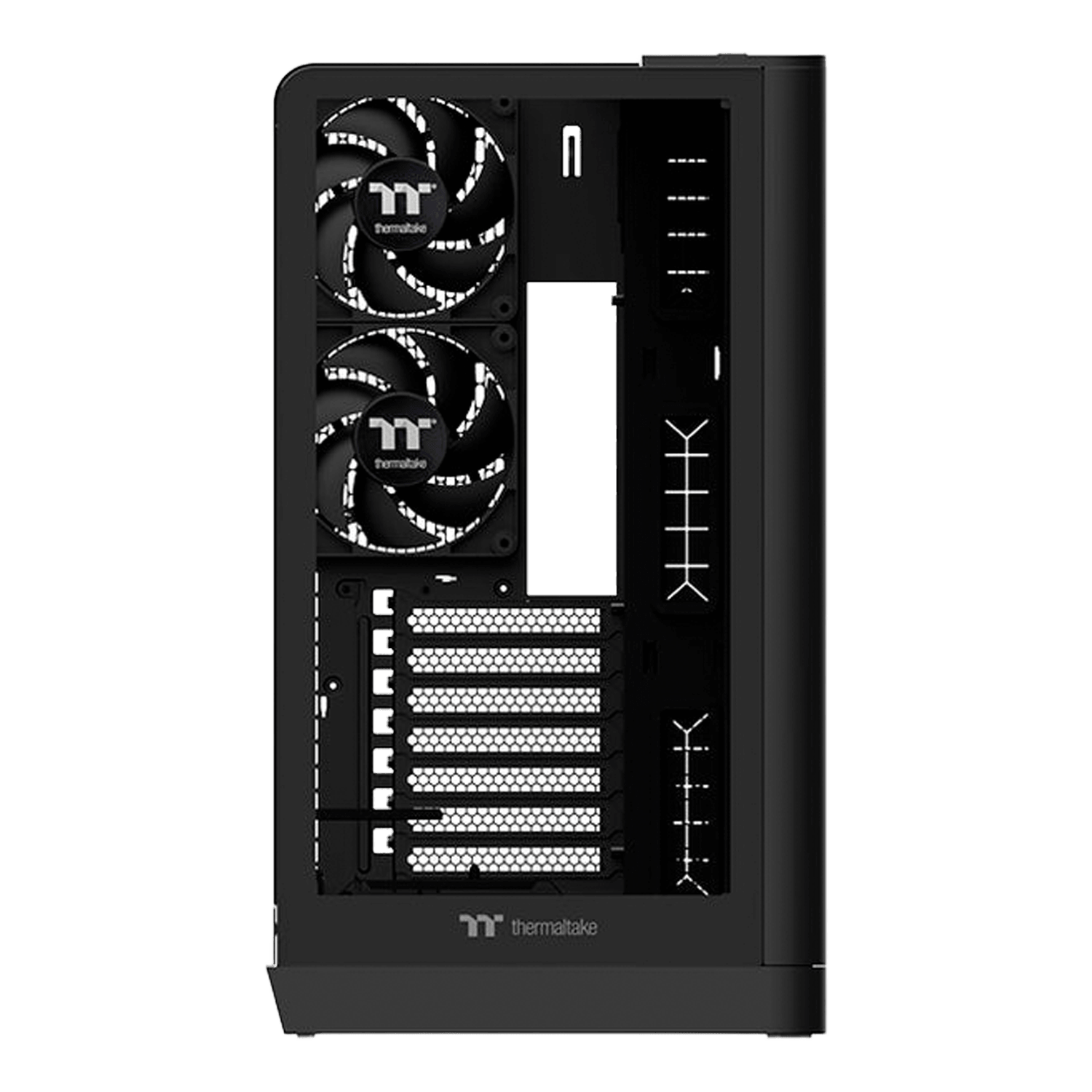

| Cooling System | Rear (exhaust): 120 x 120 x 25 mm CT120 fan (500~2000rpm, 25.8 dBA) x 2 |
| Expansion Slots | 7(Rotatable Patented Design) |
| Motherboard | 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) |
| Hidden-Connector Motherboard | 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Right: 3 x 120mm Rear: 2 x 120mm Bottom: 3 x 120mm |
| Radiator Support | Right Side(AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm |
| Clearance |
CPU cooler height limitation: 160mm VGA length limitation: 460mm PSU length limitation: 200mm (with 2.5" SSD) 260mm (without 2.5" SSD) |
