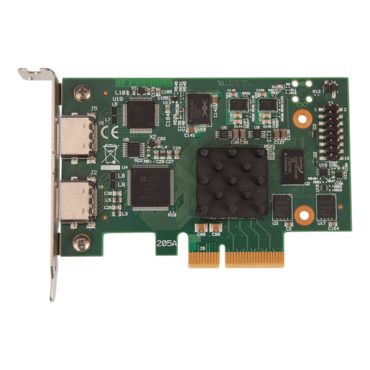

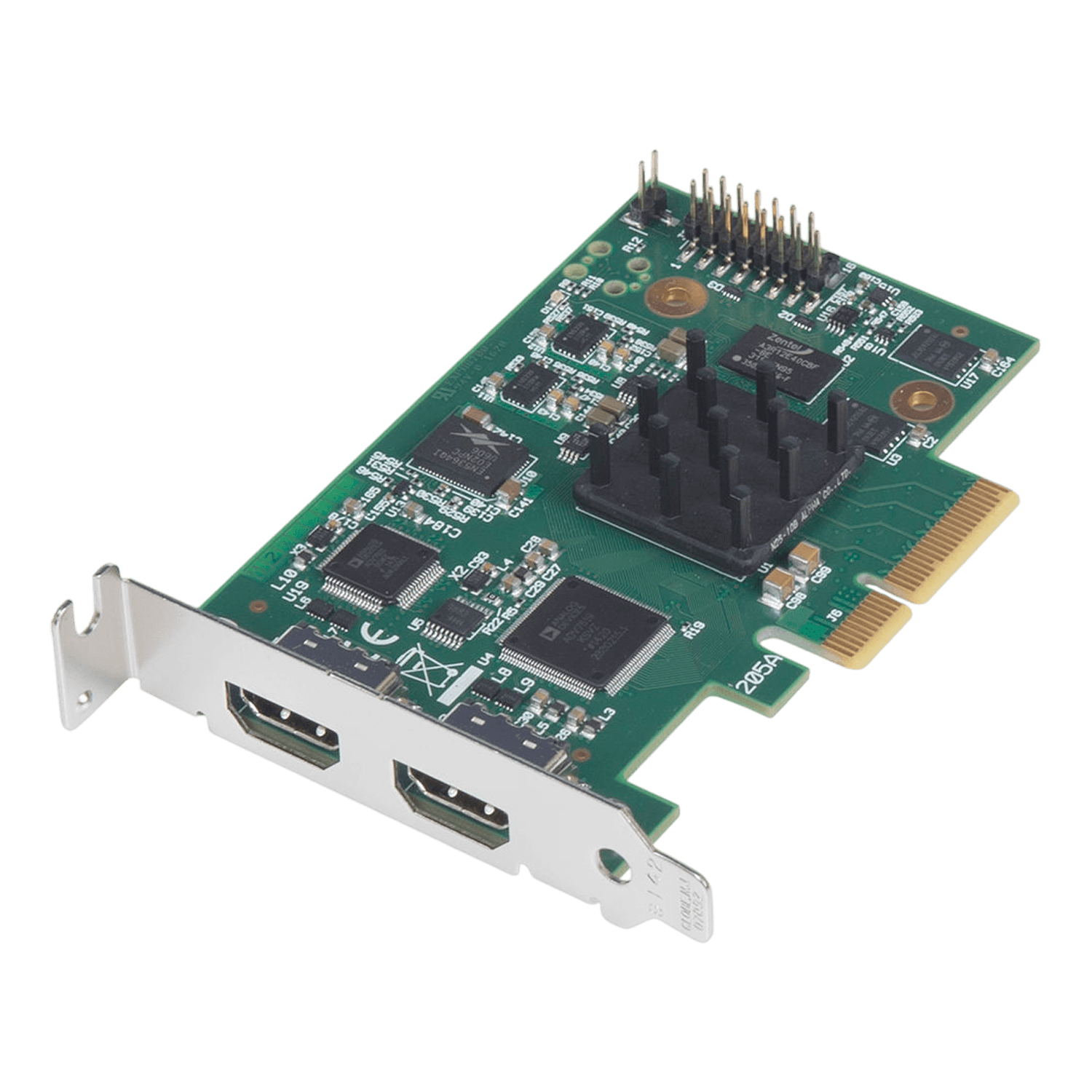

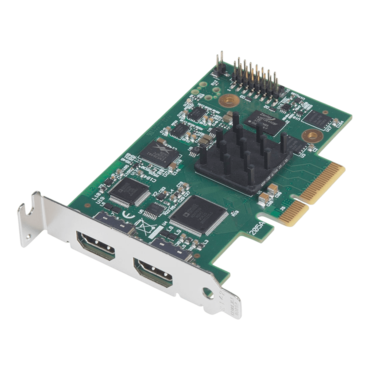

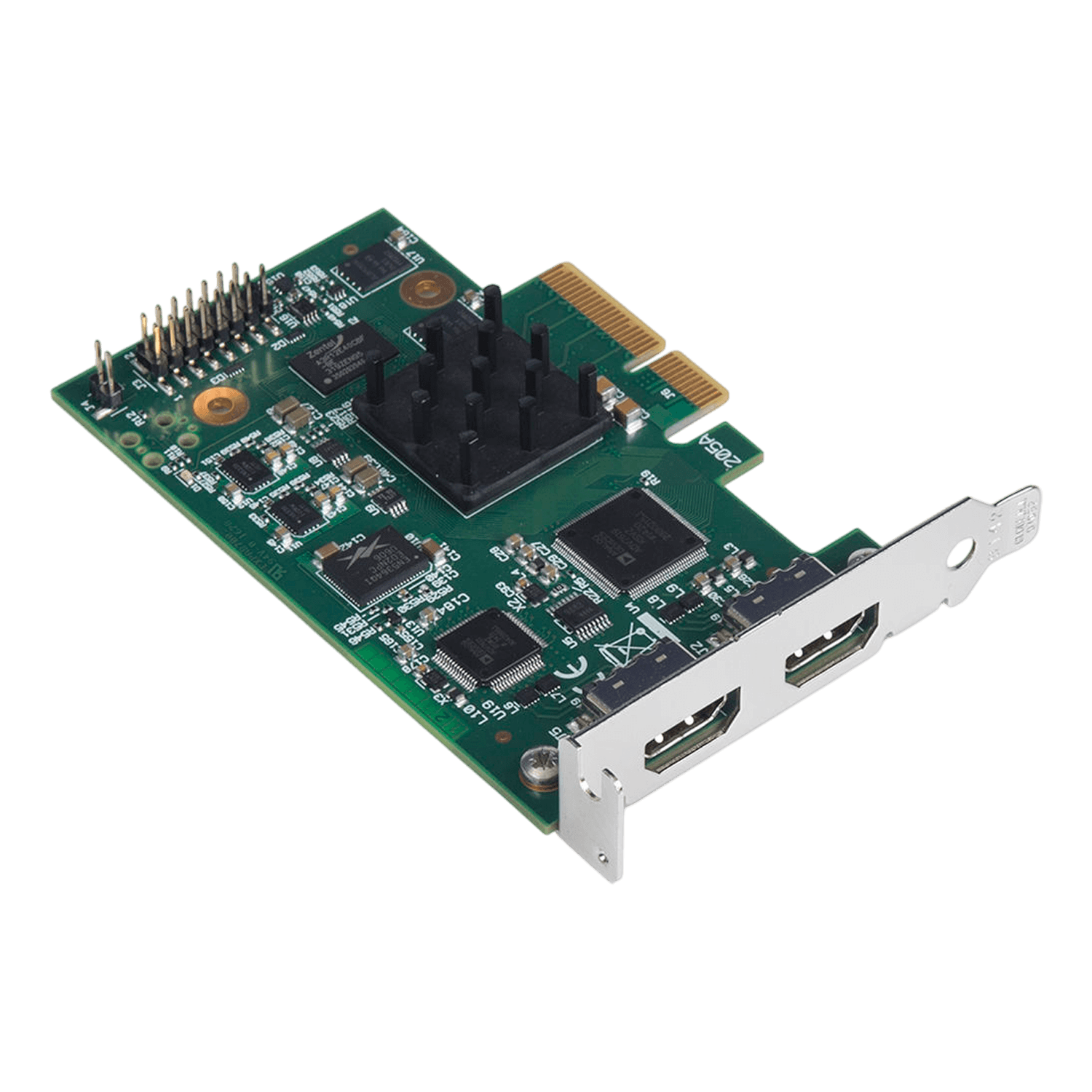

VisionLC-HD2, 1080p 60Hz Passthrough / 2160p 30Hz Capture, PCIe Capture Card
- SKU: 19375599
- Manufacturer: DATAPATH
- MPN: VISIONLC-HD2
- Availability: CONTACT US
| Board Format | PCIe Gen 2 x 4 plug-in card |
| Dimensions | 103mm x 64mm (l x h) |
| Connector | HDMI |
| Pixel Rate |
Channel 1 – 297 Mpixel/s Channel 2 – 165 Mpixel/s |
| Maximum Capture Resolution |
Channel 1 – 3840x2160p @ 30Hz Channel 2 – 1920x1080p @ 60Hz |
| Transfer Rate | 1.6GB maximum DMA transfer rate |
| Hardware Colour Space Conversion |
30 / 24 / 16 bit RGB (4:4:4) 16 bit YUV (4:2:2) 12 bit YUV, NV12, YV12 (4:2:0) |
| Audio Support | Stereo pair PCM audio via each HDMI channel at 16 bits in depth, sampling options include 44.1/ 48/ 96 kHz |
| Low Latency |
LiveStream:Capture Single frame time plus DMA transfer of final line |
| Operating Sysytem Support |
Linux, Windows 10, Windows 11, Windows Server 2019/2022 |
| Power Requirements |
Max current at 1.5A at 3.3V Max power ≈ 5W |
| Operating Temperature | 0 to 35 deg C/ 32 to 96 deg F |
| Storage Temperature | –20 to 70 deg C (-4 to 158 deg F) |
| Relative Humidity | 5% to 90% non-condensing |
| Warranty | 3 years |
