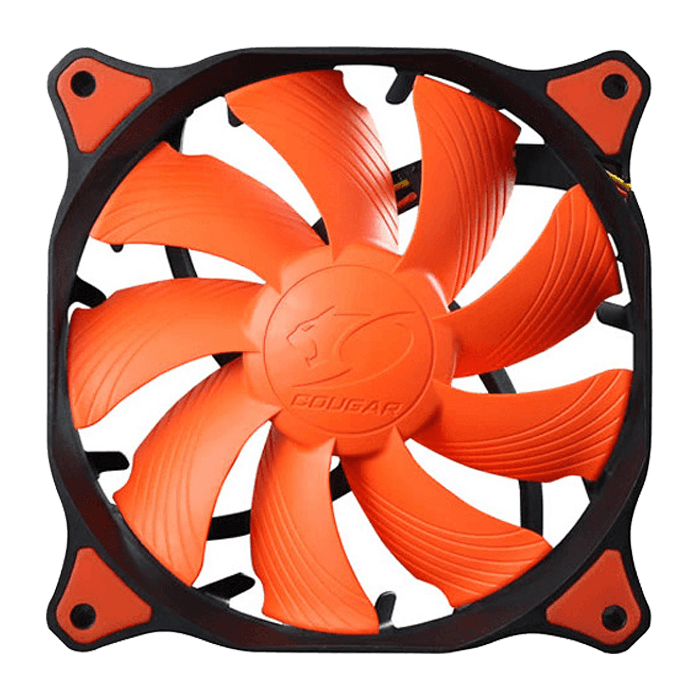

Vortex HDB
Best Cooling Efficiency & Super Silent Performance
Overview:.
- High Vortex Airflow with Turbine Blade & Frame Patented Design
Optimum airflow, air pressure & extremely silent performance
- Diversion Groove Blade Design
Innovative blade design focus air flow & optimum cooling efficiency (Patent)
- Anti-Vibration Pad Design
Reduce the vibrations efficiently & silent operation
- Aero-Dynamical Design
Air-inlet with optimal aero-dynamical design reducing noisy air turbulences
- Hydro-Dynamic Bearing Technology
HDB runs more smoothly with no friction, make it quietly & durability(MTBF300,000hrs)
- Tool-less Fixed Pins
Rubber fixed pins also reduces vibrations (fan run more quietly) and Tool-less makes it easy to mount, with no tools required
Specifications:
|
Model
|
CF-V14H
|
CF-V12H
|
|
Marketing name
|
VORTEX HDB 140
|
VORTEX HDB 120
|
|
Dimensions
|
140 x 140 x 25
|
120 x 120 x 25
|
|
Speed
|
1200rpm
|
700rpm
(w/ adapter)
|
1200
|
|
Air flow @ 12V (CFM, m3/h)
|
70.5 / 119.8
|
55.5 / 94.3
|
60.4 / 102.6
|
|
Air pressure @ 12V (mm H2O)
|
1.38
|
0.74
|
1.73
|
|
Noise
|
19.2dB
|
16.4dB
|
17.7dB
|
|
Bearing type
|
HDB (Hydro-Dynamic Bearing)
|
|
Connector
|
3pin
|
|
Cable length
|
450
|
|
Cable sleeve
|
Yes
|
|
Accessories
|
3 to 4pin adapter
|
3 to 4pin adapter
|
|
Fan speed adjustable cable
|
Tool-less fixed pins
|
|
Tool-less fixed pins
|
Screws
|
|
Screws
|
|
|
Carton
|
Color box with PVC window
|
|
