CPU
|
- 4th Generation Intel® Core™ i7-4700MQ Processor (2.40GHz), 6MB L3 Cache
- 4th Generation Intel® Core™ i7-4800MQ Processor (2.70GHz), 6MB L3 Cache
- 4th Generation Intel® Core™ i7-4900MQ Processor (2.80GHz), 8MB L3 Cache
|
Core Logic
|
|
Display
|
- 17.3" Full HD 16:9 Wide screen (1920x1080) LED-Backlit Display with Matte Finished Screen
|
Memory
|
- Supports Dual Channel DDR3
- Three 204Pin SODIMM sockets, support for DDR3 1333/1600MHz* (Real operation frequency depends on FSB of processor)
- Expandable up to 24GB, depends on 4GB/8GB SODIMM module (32 bit OS editions have a memory limitation of 2.8GB. Other hardware or application limitations may further prevent use of all installed memory. Windows 7 64bit is required for memory configurations of 4GB and above.)
*Two DIMMs per channel option is only available in 4 cores processor
|
Video Controller
|
Switchable GPU by NVIDIA® Optimus™ Technology - NVIDIA® GeForce™ GTX 765M GPU / Intel® GMA HD GPU |
NVIDIA® GeForce™ GTX 765M GPU
- 2GB GDDR5 Video RAM
- Support PCIe x8
- Microsoft® DirectX® 11 compatible
- NVIDIA® PhysX® Technology
- NVIDIA® CUDA™ Technology
- HDMI 1.4
- NVIDIA® Optimus 1.2 Technology
|
4th Generation Intel® GMA HD
- Intel Dynamic Video Memory Technology supporting shared memory up to 1.7GB
- Intel® Quick Sync Video
- Microsoft ® DirectX® 11.1 compatible
- Intel® Clear Video HD Technology / Intel® HD Graphics
- (GPU type depends on processor)
|
Storage
|
- One changeable 12.7mm(H) Super Multi / Blu-ray ODD, SATA interface
- Two changeable 2.5” 9.5mm(H) SATA HDD (RAID 0/1)
|
Sound System
|
- High Definition audio interface
- S/PDIF digital output
- Built-in Microphone
- Built-in two speakers
- Sound Blaster™ Cinema
|

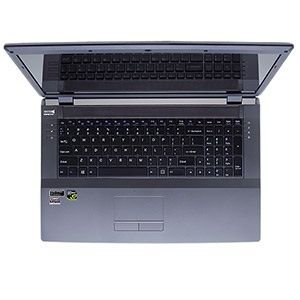

Keyboard
|
- Full size isolated keyboard with numeric pad
- Instant button for Airplane mode on/off
- Independent GPU button, support UMA and Optimus mode
|
Pointing Device
|
- Integrated touchpad with multi-gesture and scrolling function
|

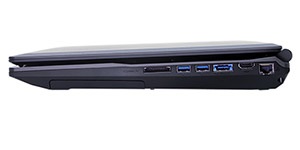

I/O Ports
|
- 1 x HDMI 1.4a output Port (with HDCP)
- 1 x CRT output Port
- 1 x USB 2.0 Port
- 2 x USB 3.0 Ports
- 1 x eSATA Port (USB 3.0 Combo)
- 1 x Headphone Jack
- 1 x Microphone Jack
- 1 x S/PDIF output Jack
- 1 x RJ-45 LAN (10/100/1000Mbps)
|
Card Reader |
- 9-in-1 Push-Push Card reader
- MMC / RSMMC
- SD / mini SD / SDHC / SDXC
- MS / MS Pro / MS Duo
|
Slots
|
Two MiniCard Slots
- 1st for WLAN Combo module (Half size Mini Card with PCIe and USB interface)
- 2nd slot for mSATA SSD (Full size Mini Card with SATA interface)
|
Communication
|
- Built-in Gigabit Ethernet LAN
- Integrated 802.11 b/g/n wireless LAN + Bluetooth™ V4.0 + LE combo half mini card module or
- Intel® Centrino® Advanced-N 6235 - 802.11a/b/g/n wireless LAN + Bluetooth™ combo half mini card module or
- Intel® Centrino® Ultimate-N 6300 - 802.11a/b/g/n wireless LAN half mini card module or
- Qualcomm Killer™ Wireless-N 1202, 802.11a/b/g/n Wireless LAN + Bluetooth 4.0 Combo or
- Qualcomm Atheros Killer™ Wireless-N 1103 802.11 a/b/g/n wireless LAN half mini card module
|
Other Features
|
- Built-in 2.0M HD Video Camera
- Intel® Rapid Start Technology
- Intel® Smart Response Technology
- Intel® Anti-Theft Technology
|
Power
|
- Full Range 120W AC Adapter AC-in 100~240V, 50~60Hz, DC output 19.5V, 6.15A
- Removable 8 cells smart Lithium-Ion battery pack 76.96Wh
|
Security
|
|
OS Support
|
|
Certificate
|
- Windows® 8 (64-bit) Logo
- HDMI Logo
|
Dimension
|
- 16.26" (w) x 10.93" (d) x 0.69~1.73" (h)
- 7.06 lbs including ODD and Battery Pack
|
