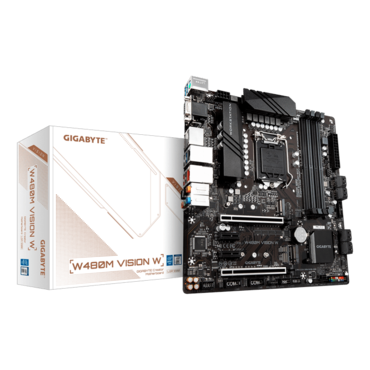

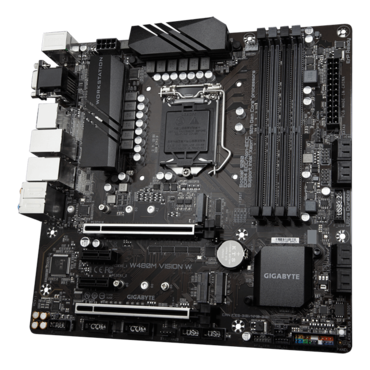

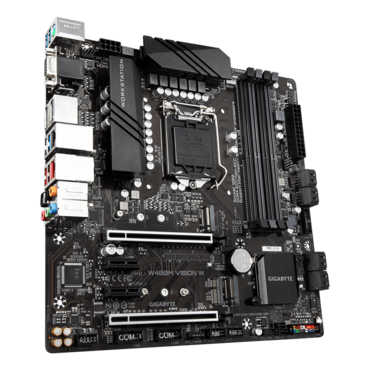

W480M VISION W, Intel® W480 Chipset, LGA 1200, 2x DP, microATX Motherboard
W480M VISION W, Intel® W480 Chipset, LGA 1200, 2x DP, microATX Motherboard
W480M VISION W, Intel® W480 Chipset, LGA 1200, 2x DP, microATX Motherboard
W480M VISION W, Intel® W480 Chipset, LGA 1200, 2x DP, microATX Motherboard
W480M VISION W, Intel® W480 Chipset, LGA 1200, 2x DP, microATX Motherboard

W480M VISION W, Intel® W480 Chipset, LGA 1200, 2x DP, microATX Motherboard

Quantity:
  • SKU: 13560653
  • Manufacturer: GIGABYTE
  • MPN: W480M VISION W
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$233.43
Quantity:
W480M VISION W, Intel® W480 Chipset, LGA 1200, 2x DP, microATX Motherboard

VISION Series motherboards are built for creator pc. It featured with reliable performance, impressive connectivity, expandable on graphics, and ultra-fast storage for creators to deal with heavy design workloads such as video editing and 3D rendering. It's the perfect fit for DIY creators to build their own ideal machine.

  • Powerful performance with Intel® Xeon® W processors and supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors*
  • Reliability ensuring by DDR4 ECC & Non-ECC memory with 4 physical DIMM slots
  • Multi-graphics configurations offer better graphics performance
  • Fully Quadro® QVL Tested
  • High-bandwidth and low-latency network support by Intel® 2.5GbE + GbE Dual LAN with cFosSpeed
  • Intel® vPro technology provides the enterprise-grade security
  • Effective cooling solution design for the better thermal dissipation
  • Smart Fan 5 features hybrid fan headers and numerous temperature sensors to configure fan mode
  • Dual Ultra-Fast M.2 with PCIe Gen3 x4 interface
  • 8 SATA3 ports support for large storage capacity
  • Comprehensive connectivity with USB 3.2 Gen2 Type-A connection
  • Supports up to three monitor displays simultaneously
  • Commercial features with dual COM port headers and HDDs monitor by SGPIO
  • Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
CPU
  • LGA1200 package:
    Intel® Xeon® W series processors
    10th Generation Intel® Core™ processors/Intel® Pentium® processors/ Intel® Celeron® processors
  • L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  • Intel® W480 Express Chipset
Memory
  • Intel® Xeon® W-1290/W-1270 series processors/Intel® Core™ i9/i7 processors:
    Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  • Intel® Xeon® W-1250 series processors/Intel® Core™ i5/i3/Pentium® / Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    * To support ECC, you must install an Intel® Xeon® processor.
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  • 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
  • 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 512 MB
Audio
  • Realtek® ALC1200 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
LAN
  • 1 x Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)(LAN1)
  • 1 x Intel® GbE LAN chip (1 Gbit/100 Mbit)(LAN2)
Expansion Slots
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  • 2 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
  • 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
Supports up to ASPM L1.2 power management protocols.
Multi-Graphics Technology
  • Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_CPU)
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB)
  • 8 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • Intel® Optane™ Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
USB Chipset:
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 3 x system fan headers
  • 8 x SATA 6Gb/s connectors
  • 2 x SATA detection headers
  • 2 x M.2 Socket 3 connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 2 x Thunderbolt™ add-in card connectors
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 2 x serial port headers
  • 1 x Clear CMOS jumper
  • 1 x Q-Flash Plus button

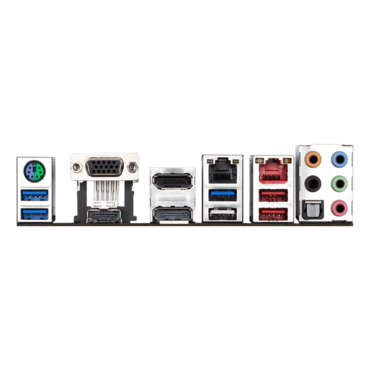

Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port
  • 1 x HDMI port
  • 2 x DisplayPorts
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 4 x USB 3.2 Gen 1 ports
  • 2 x RJ-45 ports
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks
I/O Controller
  • iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
Bundled Software
  • Norton® Internet Security (OEM version)
  • cFosSpeed
Operating System
  • Support for Windows 10 64-bit
Form Factor
  • Micro ATX Form Factor; 24.4cm x 24.4cm
Remark
  • Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  • Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
