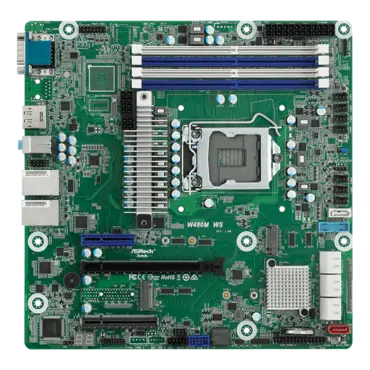

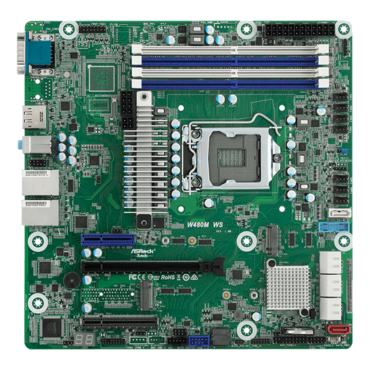

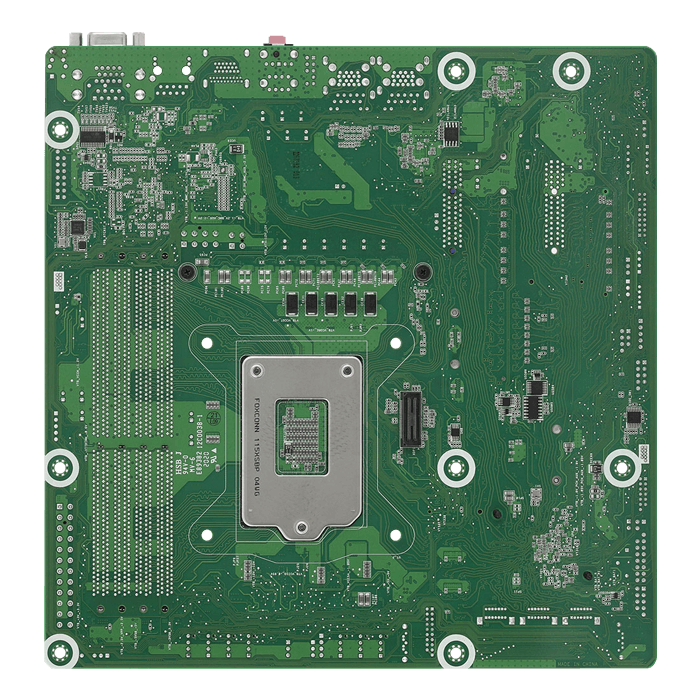

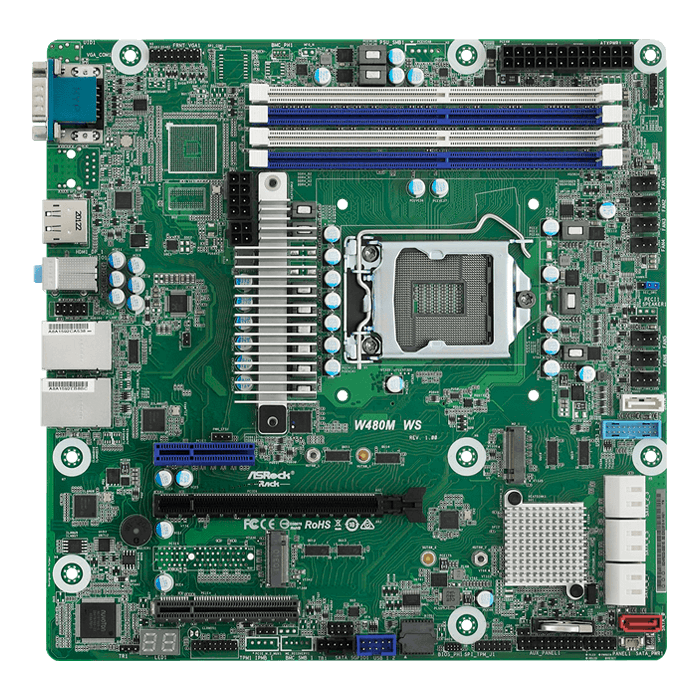

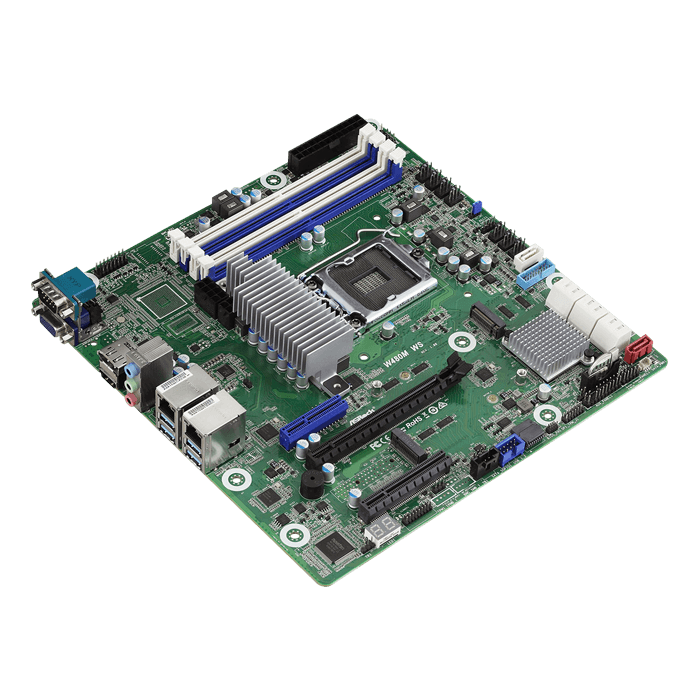

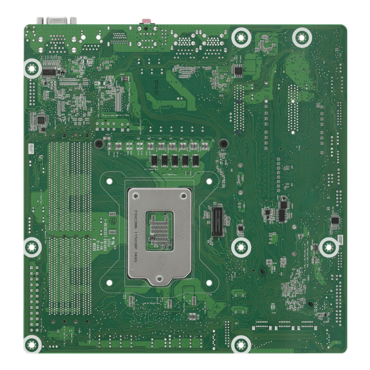

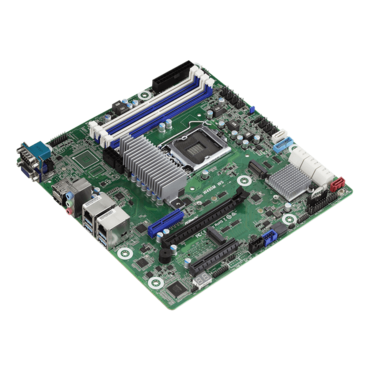

W480M WS, Intel® W480, LGA 1200, DDR4-3200 128GB ECC UDIMM / 4, SATA DOM, Display Port, M.2 / 2, USB 3.2 / 4, GbLAN / 2, microATX Retail

  • SKU: 14694112
  • Manufacturer: ASROCK
  • MPN: W480M WS
Starting At
Physical Status
Form Factor micro-ATX
Dimensions 9.6"x 9.6" (244mm x 244mm)
Processor System
CPU Intel® Xeon® W-1200, Intel® 10th Gen Intel® Core™ Processors
Socket LGA 1200
Chipset Intel® W480
System Memory
Capacity 4 x 288-pin DDR4 DIMM slots (2 DIMMs per channel)
Type DDR4 288-pin ECC*/ non-ECC UDIMM
* ECC Memory (ECC mode) supported by Intel® Xeon® W-1200 processors
DIMM Size Per DIMM 32GB, 16GB, 8GB, 4GB
DIMM Frequency 2933*/2666/2400 MHz
*2933 MHz supported by Intel® Xeon® W-1290/W-1270 series processors, and 10th Gen Intel® Core™i9/i7 processors
Voltage 1.2V
Expansion Slot
PCIe x 16 SLOT6: Latch PCIe3.0 x16, auto switch to x8 when SLOT4 is occupied
PCIe x 8 SLOT4: PCIe3.0 x8
PCIe x 4 SLOT7: PCIe3.0 x4
M.2 2 M-key (PCIe3.0 x4); supports 2280/2242 form factor
SATA Controller Intel® W480 (6Gb/s; RAID 0/1/5/10):
7 SATA 7-pin
1 SATA 7+2 pin for SATA DOM
Additional GbE Controller 2 RJ45 (1GbE) by Intel® i210
Controller CPU integrated Intel® UHD Graphics:
1 HDMI, 1 DP, 1 DB15, 1 (15-pin) header
Audio Codec ALC892

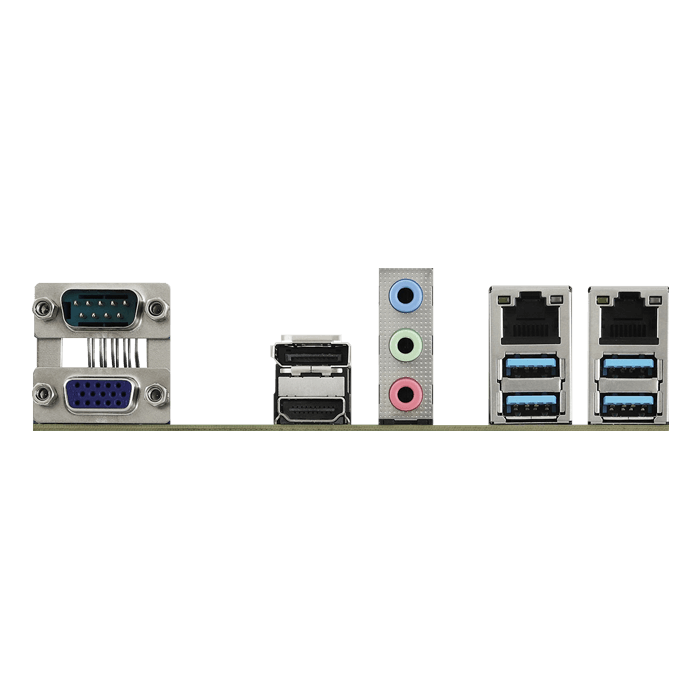

Rear Panel I/O
VGA Port 1
USB 3.2 Gen1 Port 2 Type A
USB 3.2 Gen2 Port 2 Type A
Lan Port 2 RJ45 (1GbE)
Serial Port 1 DB9 (COM port)
Display Port 1
UID Button/UID LED 1
Audio 3 jack
Internal Connector
Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
TPM Header 1 (17-pin, LPC)*, 1 (13-pin, SPI)
*support LPC interface TPM module by default. Please contact ASRock Rack sales for SPI interface TPM module support.
Thermal Sensor Header 1
VGA Header 1
Buzzer 1
Fan Header 7 (4-pin)
USB 3.2 (Gen1) Header 1 (supports 2 USB3.2 Gen1 ports)
USB 2.0 Header 1 ( supports 2 USB2.0 ports)
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
Speaker Header 1
SGPIO Header 1
Power Connector 24-pin (ATX), 8-pin (12V), 4pin (12V)
ME/SPS Recovery 1
Clear CMOS 1 (contact pads)
Onboard LED
Standby PWR LED 5vsb 1
80 Debug Port LED 1
System BIOS
BIOS Type AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
BIOS Features Plug and Play, ACPI 3.0 compliance wake up events, SMBIOS 3.2, ASRock Rack Instant Flash
Hardware Monitor
Temperature CPU,MB,Card Side sensing
Fan Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Multi-Speed Control
Voltage +12V, +5V, +3.3V, CPU Vcore, DRAM, V1.0M,+BAT, 3VSB, 5VSB
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity - Non operation humidity: 20% ~ 90% ( Non condensing)
