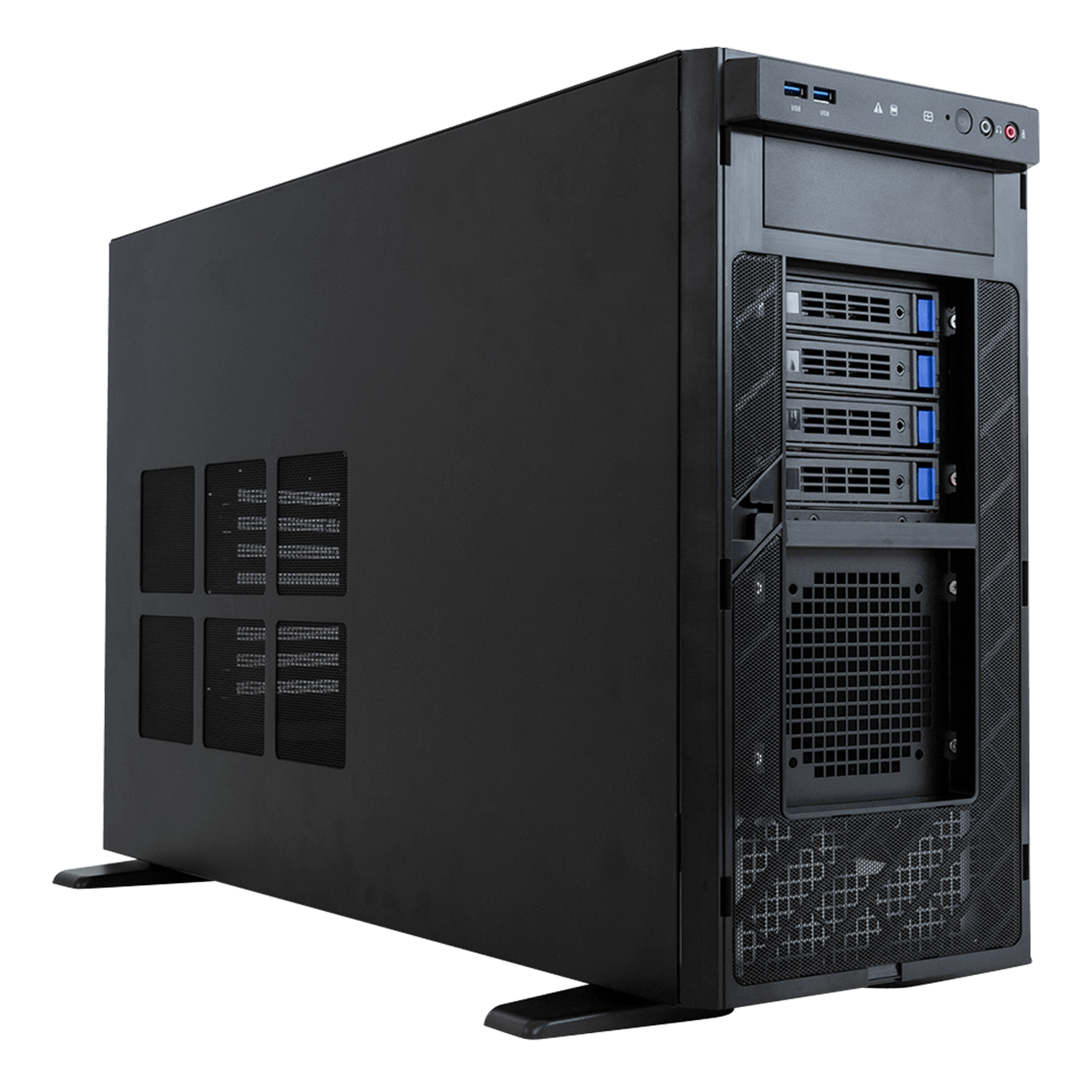

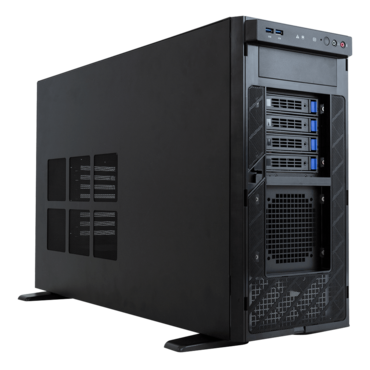

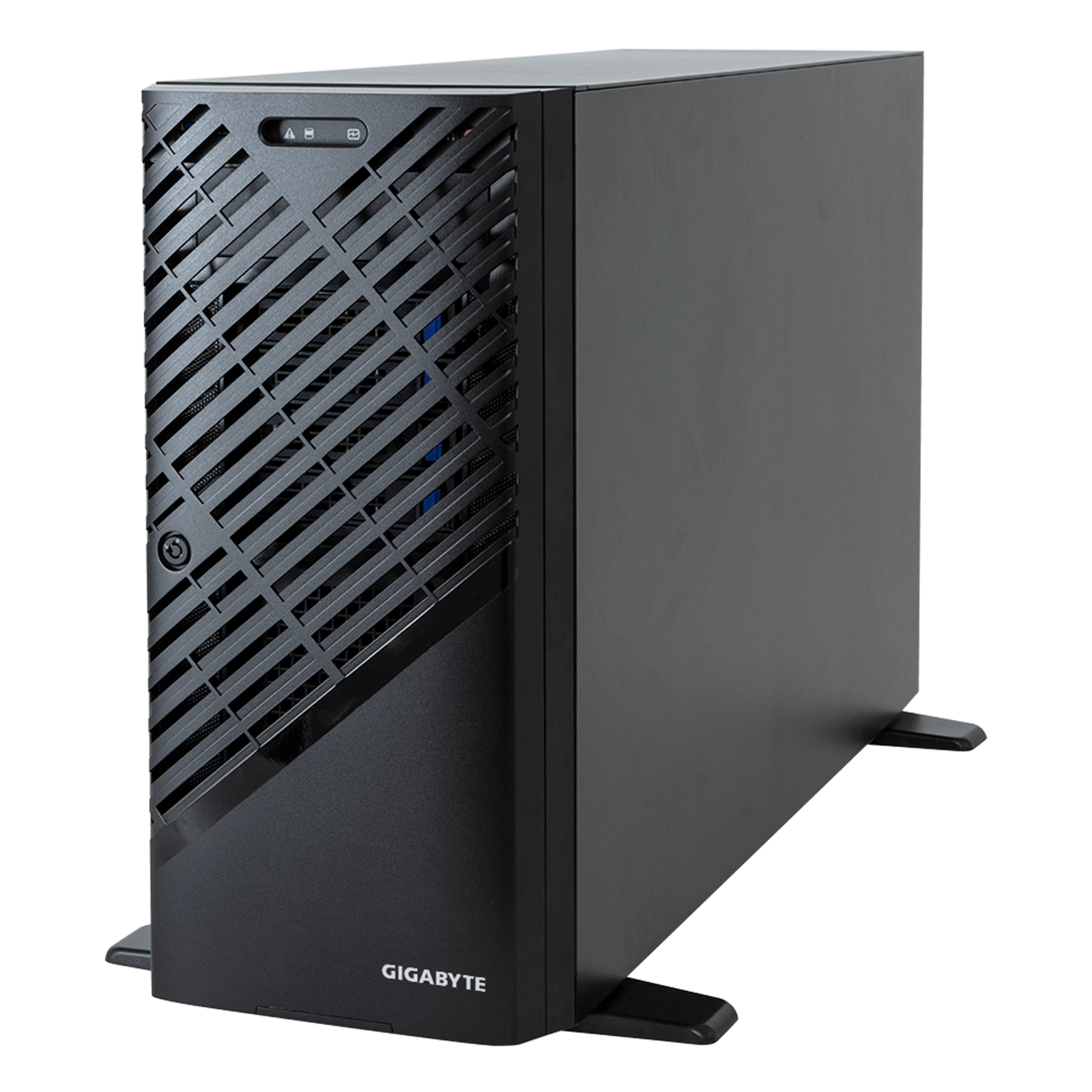

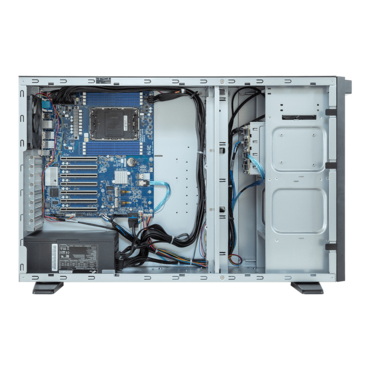

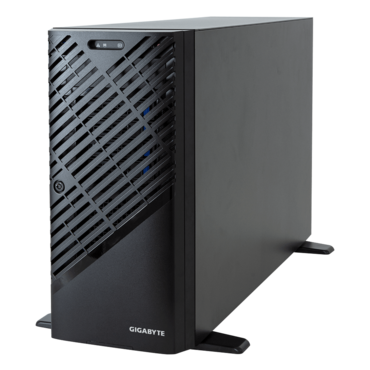

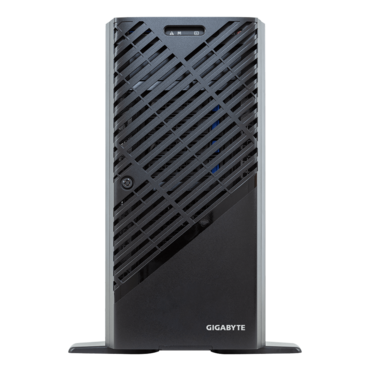

W773-W80, Tower, Intel® W790, 4x 3.5"/2.5" SATA Hotswap, 2x M.2, 8x DDR5, 2x 10Gb Ethernet, 2000W PSU
- SKU: 18559053
- Manufacturer: GIGABYTE
- MPN: W773-W80
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
- Supports up to 4 x dual-slot Gen5 GPUs
- Single Intel® Xeon® W-3500/3400 Processors
- Single Intel® Xeon® W-2500/2400 Processors*
- 8-Channel DDR5 RDIMM per CPU with 8 x DIMMs
- Intel® W790 Chipset
- 2 x 10 Gb/s LAN ports via Intel® X710-AT2
- 2 x M.2 slots with PCIe Gen4 x4
- Up to 8 x 3.5"/2.5" SATA bays
- 5 x PCIe x16 slots with Gen5 x16 lanes
- 2 x PCIe x16 slots with Gen4 x16 lanes
- Single 2000 W ATX 80 PLUS Gold power supply
| Dimensions (WxHxD, mm) |
Pedestal 218 x 455 x 726.3 |
| Motherboard | MW83-RP0 |
| CPU |
Intel® Xeon® W-3500 Processors Intel® Xeon® W-2500 Processors [1] Intel® Xeon® W-3400 Processors Intel® Xeon® W-2400 Processors [1] Single processor, TDP up to 385 W [1] Carriers for Intel® Xeon® W-2500/2400 Processors are not included. Please refer to the optional parts for proper support. [Note] Please select Intel® Xeon® W-3500/3400 Processors to enable all functions. |
| Socket |
1 x LGA 4677 Socket E |
| Chipset | Intel® W790 |
| Memory |
8 x DIMM slots Support DDR5 RDIMM 8-channel memory per processor Up to 4800 MT/s [Note] Only 4 x DIMM slots are supported with Intel® Xeon® W-2500/2400 Processors. [Note] When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0. |
| LAN |
2 x 10 Gb/s LAN (1 x Intel® X710-AT2) - Support NCSI function 1 x 10/100/1000 Mb/s Management LAN |
| Video |
Integrated in ASPEED® AST2600 - 1 x VGA port |
| Audio |
Realtek® ALC897 HD Audio Codec Supports 2/4/5.1/7.1 channel configurations Rear: 3 x Audio jacks (Audio in/Audio out/Mic) Front: 2 x Audio jacks (Audio out/Mic) |
| Storage |
Front hot-swap: 4 x 3.5"/2.5" SATA Optional 4 x 3.5"/2.5" SATA Internal M.2: 2 x M.2 (2280), PCIe Gen4 x4, from PCH [Note] Storage card is required to support NVMe and SAS drives. |
| RAID | Intel® SATA RAID 0/1/10/5 |
| Peripheral Drives | 5.25" space reserved for ODD device |
| PCIe Expansion Slots |
Slot_7: PCIe x16 (Gen5 x16) Slot_6: PCIe x16 (Gen5 x16) [1] Slot_5: PCIe x16 (Gen5 x16) [1] Slot_4: PCIe x16 (Gen5 x16) [1] Slot_3: PCIe x16 (Gen4 x16) Slot_2: PCIe x16 (Gen5 x16) Slot_1: PCIe x16 (Gen4 x16) [1] Slot_4/5/6 are not supported with Intel® Xeon® W-2500/2400 Processors.
[Note] The system supports the following GPU configurations: |

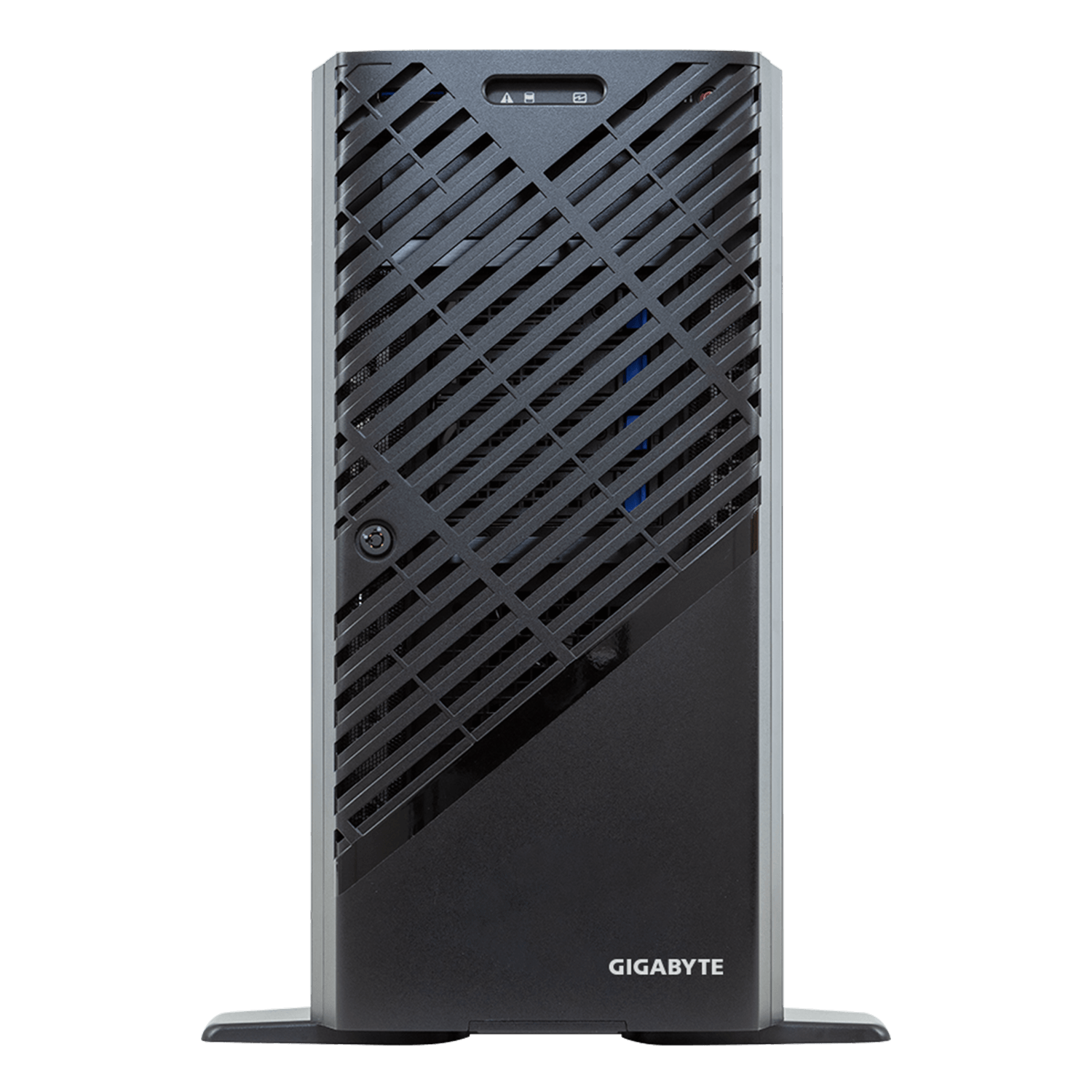

| Front I/O |
2 x USB 3.2 Gen1 ports (Type-A) 2 x Audio jacks (Audio out/Mic) 1 x Power button 1 x Reset button 1 x Power LED 1 x Storage activity LED 1 x System status LED |

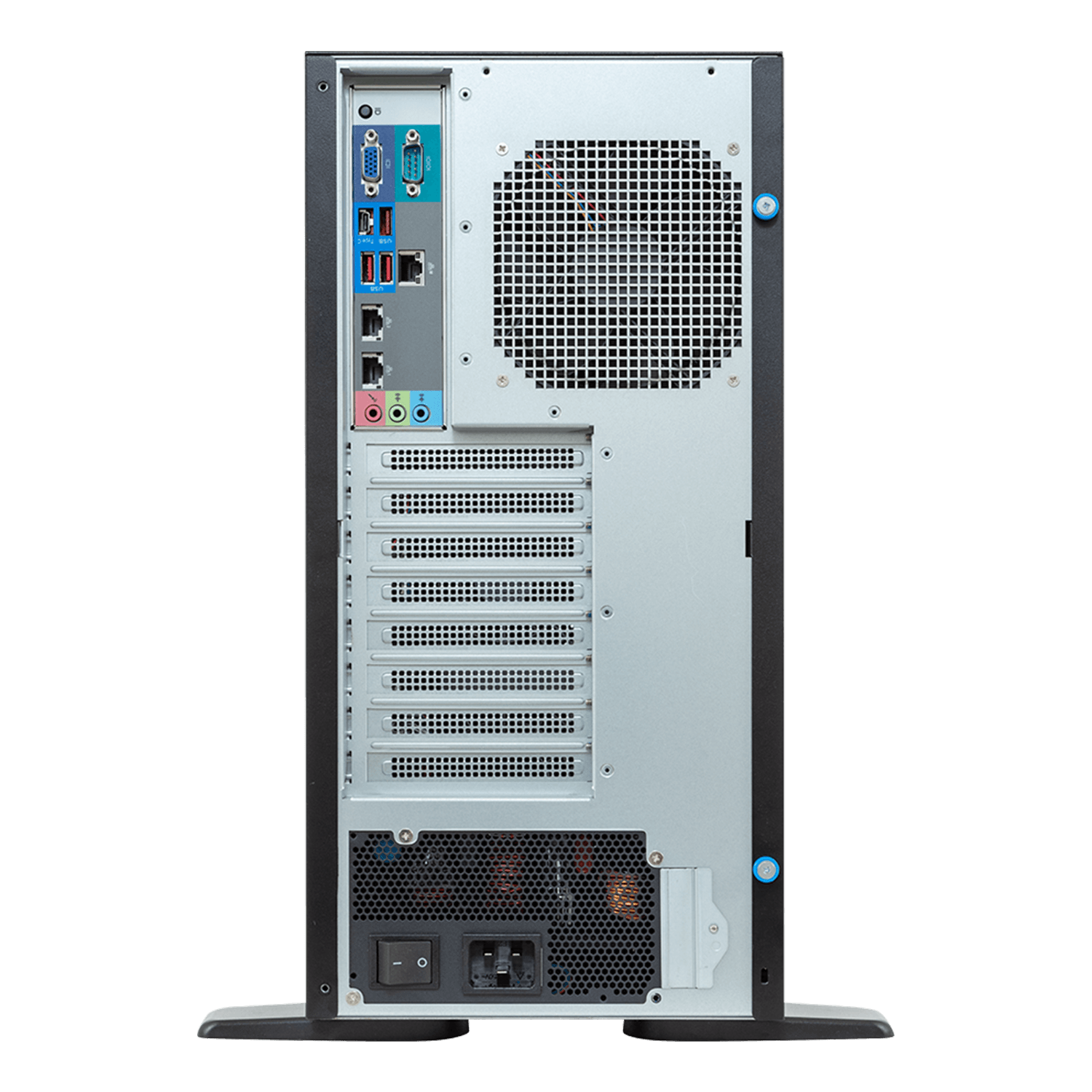

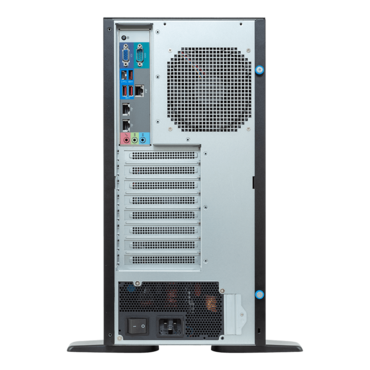

| Rear I/O |
1 x USB 3.2 Gen2x2 port (Type-C) 3 x USB 3.2 Gen2x1 ports (Type-A) 1 x VGA port 1 x Serial port 2 x RJ45 ports 1 x MLAN port 3 x Audio jacks (Audio in/Audio out/Mic) 1 x ID button with LED |
| Security Modules |
1 x TPM header with SPI interface - Optional TPM 2.0 kit: CTM010 |
| Power Supply[#1] |
Single 2000 W ATX 80 PLUS Gold power supply [1] AC Input: - 100-240V~/ 15-12A, 60-50Hz DC Output: - Max 1200W/ 100-115V~ +12V/ 100A +5V/ 25A +3.3V/ 25A +5Vsb/ 4A - Max 1500W/ 115-200V~ +12V/ 125A +5V/ 25A +3.3V/ 25A +5Vsb/ 4A - Max 2000W/ 200-240V~ +12V/ 166.6A +5V/ 25A +3.3V/ 25A +5Vsb/ 4A [1] The system power supply requires C19 power cord. [Note] 220-240 V AC input is recommended for optimized user experience. |
| System Management |
ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface
|
| OS Compatibility |
CentOS Stream 9 Debian 11.5.0 Red Hat Enterprise Linux 9.0 Ubuntu 22.04 LTS Windows 11 Enterprise |
| System Fans |
Middle: 3 x 120x120x38mm Rear: 1 x 120x120x25mm |
| Operating Properties |
Operating temperature: 10°C to 30°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) |
| Weight |
Net Weight: 21.57 kg Gross Weight: 34 kg |
| Packaging Dimensions | 1050 x 417 x 594 mm |
| Packaging Content |
1 x W773-W80 1 x CPU fansink 1 x W-3500/3400 (E1A) carrier [1] [1] Carriers for Intel® Xeon® W-2500/2400 Processors are not included. Please refer to the optional parts for proper support. |
| Part Numbers |
- Barebone package (Refresh): 6NW773W80MR-000-3* - Barebone package: 6NW773W80MR-000-1* - Motherboard: 9MW83RP0NR-000* - I/O shield: 12AIO-MW83RP-00R - CPU fansink: 25ST0-0Z9221-A3R - W-3500/3400 (E1A) carrier: 12KRC-0I4677-00R - M.2 heatsink: 12SP2-080027-00R - Middle fan: 25ST2-113824-S1R - Rear fan: 25ST2-112522-S1R - Power supply: 25EP0-22000I-F3S Optional parts: - W-2500/2400 (E1B) carrier: 12KRC-0I4677-12R
- Rail kit for W7x3 series ((A)+(B)+(C)+(D)):
(A) 25HB2-A66126-K0R (Slide Rail), Q'ty: 1 set (B) 25HB4-W77304-C0R (Rack Ear Right), Q'ty: 1 set (C) 25HB4-W77305-C0R (Rack Ear Left), Q'ty: 1 set (D) 25HB7-W77300-C0R (Top Cover for Assembly), Q'ty: 1 set |
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
