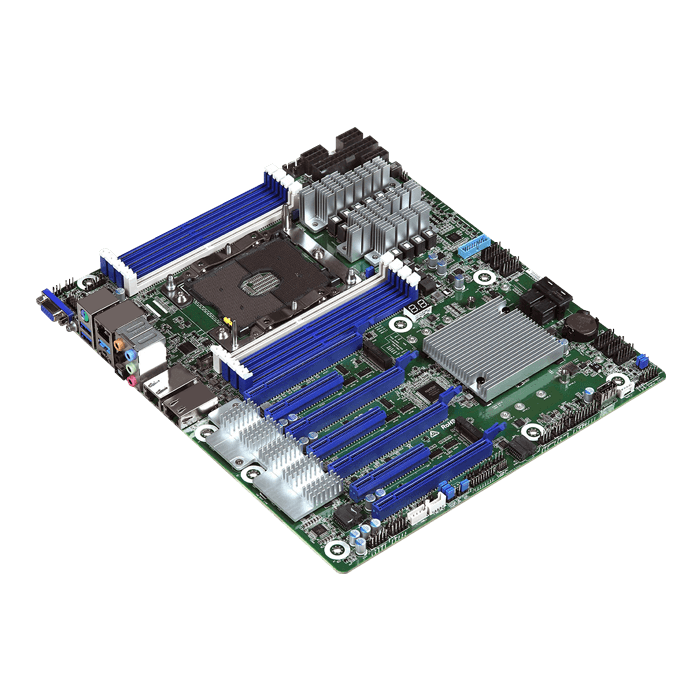

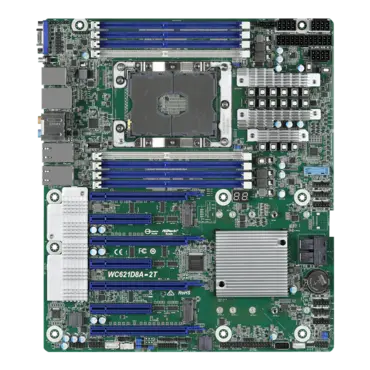

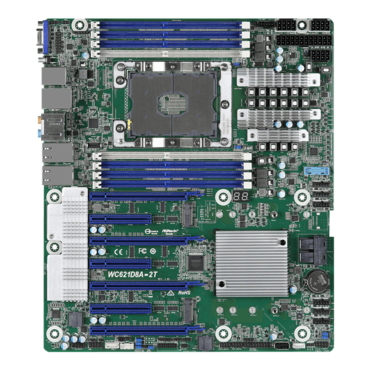

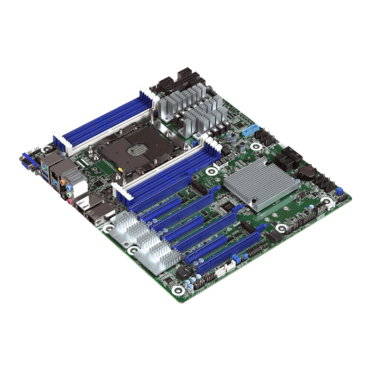

- CEB 12'' x 10.5''
- Single Socket P(LGA3647) support Intel Xeon W-3200 Processors
- Supports DDR4 2933/2666/2400 R DIMM & LR DIMM and Intel Optane™ DC Persistent Memory in memory mode, 8 x DIMM slots
- Supports 10 x SATA3 6.0 Gb/s by INTEL C621(including 2 x miniSAS, 2 x M.2)
- Supports 4 x PCIe3.0 x16, 3 x PCIe 3.0 x8
Physical Status | |
Form Factor | CEB |
Dimensions | 12'' x 10.5'' (30.5 cm x 26.7 cm) |
Processor System | |
CPU | Intel® Xeon® Scalable Processors (Max 205W) and Intel® Xeon® W Processor (MAX 255W) |
Socket | Single Socket P |
Chipset | Intel® C621 |
System Memory | |
Capacity | 8 DIMM slots |
Type |
- Six Channel Memory Technology - Support DDR4 2933/2666/2400 RDIMM, LR DIMM and Intel® Optane™ DC Persistent Memory in memory mode |
Voltage | 1.2V |
Expansion Slot | |
PCIe 3.0 x 16 |
SLOT1: Gen3 x16 link* SLOT3: Gen3 x16 link, auto switch to x8 link if SLOT2 is occupied SLOT5: Gen3 x16 link, auto switch to x8 link if SLOT4 is occupied SLOT7: Gen3 x16 link, auto switch to x8 link if SLOT6 is occupied *PCIE1 is only supported for Intel® Xeon® W-3200 Processors. |
PCIe 3.0 x 8 |
SLOT2: Gen3 x8 link SLOT4: Gen3 x8 link SLOT6: Gen3 x8 link |
Storage | |
SATA Controller | PCH : 10x SATA3 (2x mini-SAS HD, 2x M.2) |
Ethernet | |
Interface | 10Gbps/1000Mbps/100Mbps |
LAN Controller |
- 2 x RJ45 10GbE by Intel® X550-AT2 - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function - Supports PXE - LAN1 Supports NCSI |
Management | |
BMC Controller | ASPEED AST2500 |
IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
Features | NMI |
Graphics | |
Controller | ASPEED AST2500 |
VRAM | DDR4 256MB |
Audio | |
Audio Codec | Realtek ALC892 |

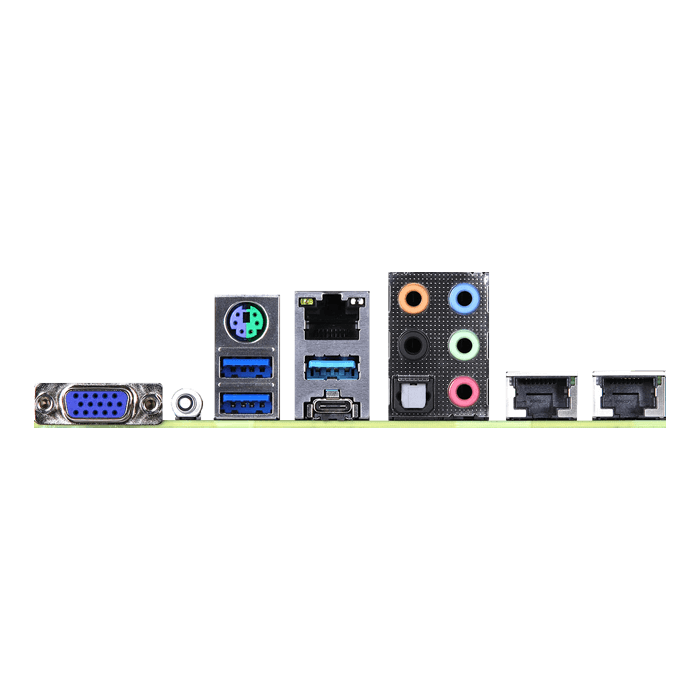

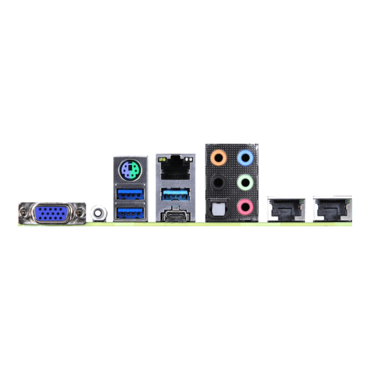

Rear Panel I/O | |
PS/2 KB/Mouse | 1 |
VGA Port | 1 x D-Sub |
USB 3.2 Gen1 Port | 3 |
USB 3.2 Gen2 Port | 1 (type C) |
Lan Port |
- 2 x RJ45: 2x 10GbE by Intel® X550-AT2 - 1x IPMI dedicated LAN" - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
UID Button/UID LED | 1 |
Audio | 1 (5+1 jack) |
Internal Connector | |
COM Header | 1 |
M.2 | 2 (up to 22110) |
Auxiliary Panel Header | 1 (includes chassis intrusion, location button & LED, front LAN LED) |
TR1 Header | 1 |
TPM Header | 1 |
IPMB Header | 1 |
Fan Header | 6 x System Fans |
ATX Power | 1 (24-pin) + 3 (8-pin) |
USB 3.2 (Gen1) Header | 2 (support 4 USB 3.1 Gen1 ports) |
USB 3.2 (Gen2) Header | 1 (supports 1 USB 3.1 Gen2 port) |
Type A USB 2.0 Port | 1 |
PSU SMB Header | 1 |
NMI Button | 1 |
Front VGA Panel | 1 |
Speaker Header | 1 (4-pin) |
BMC_SMB Header | 1 |
SGPIO Header | 1 |
SATA RAID KEY | 1 |
Clear CMOS | 1 (short pad) |
System BIOS | |
BIOS Type | 256Mb AMI UEFI Legal BIOS |
BIOS Features |
- Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8 Support - ASRock Rack Instant Flash |
Hardware Monitor | |
Temperature |
- CPU Temperature Sensing - System Temperature Sensing |
Fan |
- CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control |
Voltage | Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_ PCH, +BAT, 3VSB, 5VSB |
Support OS | |
OS |
Microsoft® Windows® (Server OS) - Server 2012 R2 (64 bit) - Server 2016 (64 bit) - Server 2019 (64 bit) Microsoft® Windows® (Client OS) - Windows® 10 (64 bit) Linux - Red Hat Enterprise Linux Server 6.9 ( 64 bit) / 7.6 ( 64 bit) - CentOS 6.9 ( 64 bit) / 7.6 ( 64 bit) - SUSE Enterprise Linux Server 12 SP4 ( 64 bit) / 15 SP1 ( 64 bit) - FreeBSD 11.3 ( 64 bit) - Ubuntu 16.04 (64 bit) / 18.04 ( 64 bit) Virtual - VMWare® ESXi 6.5 u1/ vSphere 6.5 u1 - Citrix XenServer 7.5 - Win hyper-V Server 2016 * Please refer to our website for the latest OS support list. * The SUSE Enterprise Linux Server 12 SP4 ( 64 bit) / 15 SP1 ( 64 bit) system only supports UEFI BOOT. * On the Ubuntu 16.04 (64bit) / 18.04 (64 bit), the Intel® Raid mode only supports UEFI BOOT. * Cascade lake CPU supports Red Hat 7.6 / CentOS 7.6. |
Environment | |
Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
