The WG (WG-129) Cabinet Series is optimized for office, small/medium business (SMB), research and academic institutions or professional studio environments (movie animation, music production, etc.). The 6U,7U,9U,12U space supports any combination of standard rack mount servers or equipment in a compact form factor offering ease of maintenance and flexibility for different IT applications.
WG Cabinet's desk-side design features security and mobility. It's sleek and compact Element ID design makes it suitable for customers looking for IT solutions in a dynamic office environment.
WG Series Cabinet is built with high-quality aluminum/steel structures. With vented doors and cooling fans, WG series provides excellent air circulation for servers and other devices. Cabinets are completely lockable from the front/ rear doors and side panels to prevent unauthorized access. This stylish and secure 19" rack-mount cabinet protects your investment in computer equipment against environmental elements heat and dust. WG Series offer a superior environment for mission-critical equipment.

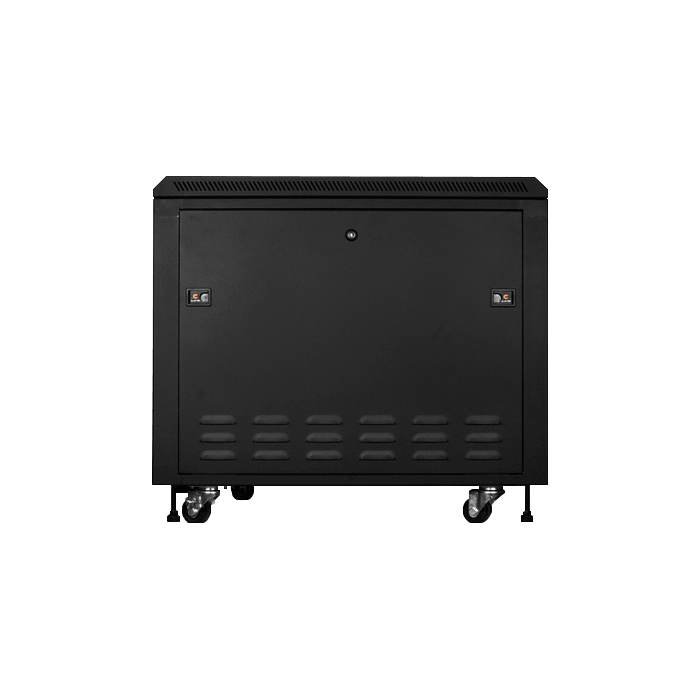

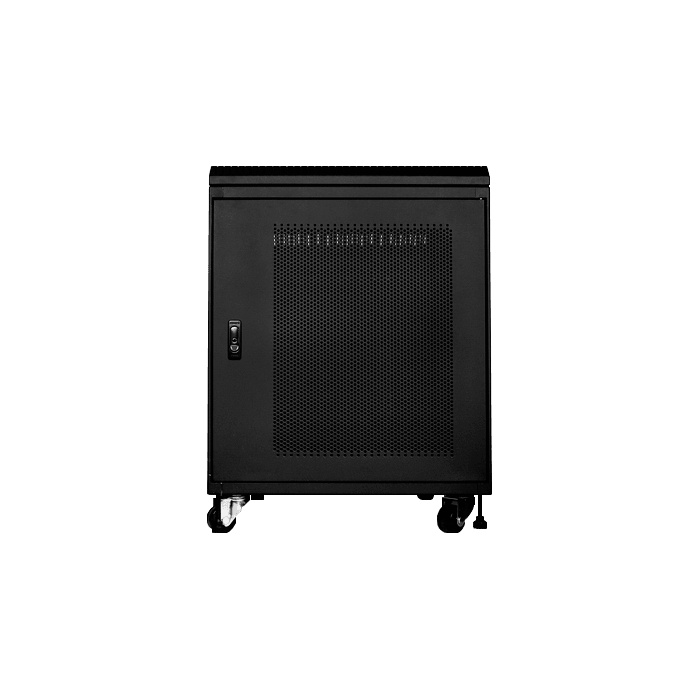

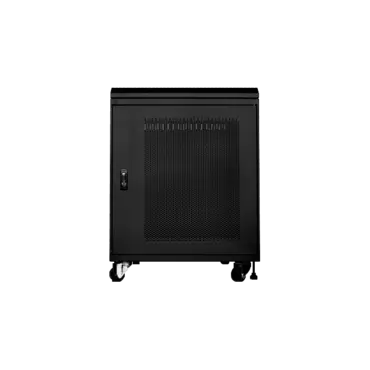

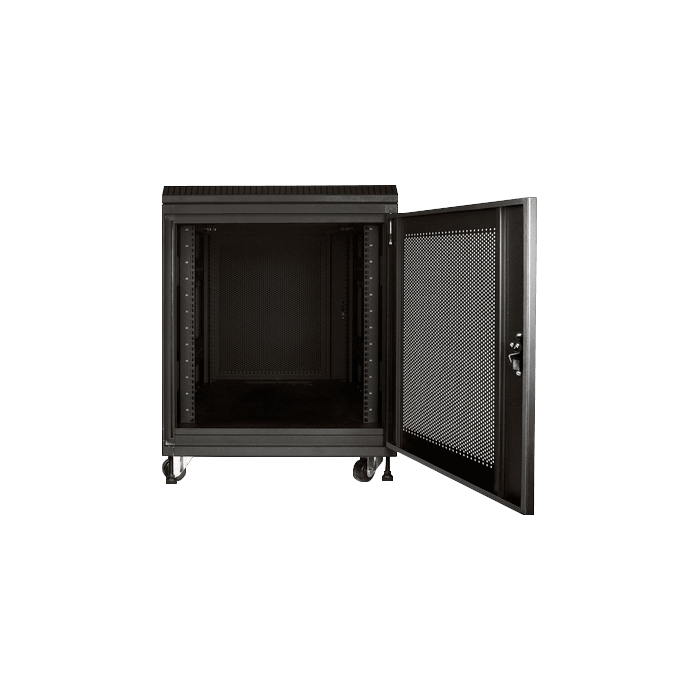

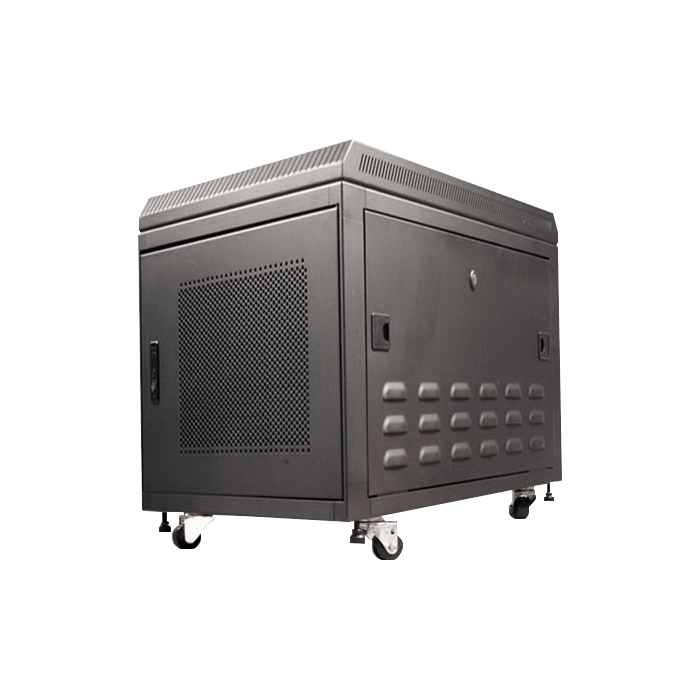

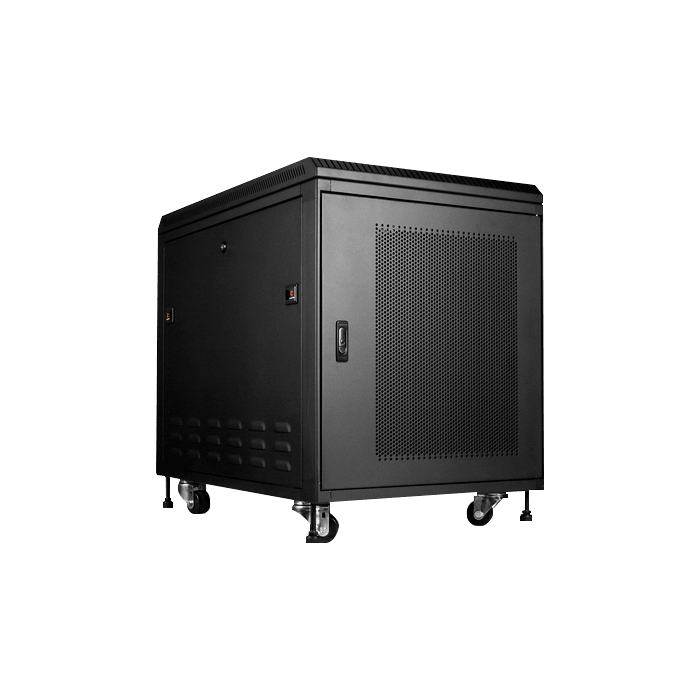

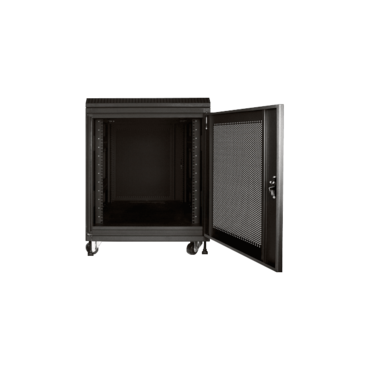

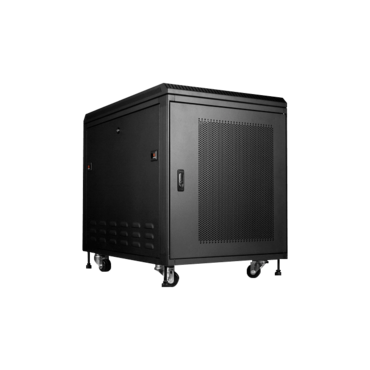

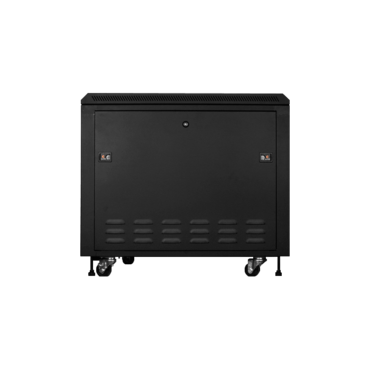

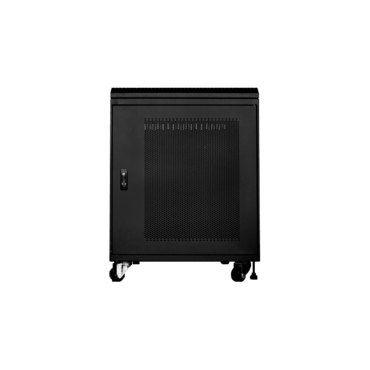

WG-129 12U 900mm Depth Rack-mount Server Cabinet
- Universal Fit Most of Rackmount Chassis and Equipment
- Front, Rear, and Side Security Lock to Prevent Unauthorized Access to Equipment and Data
- Easy Cabling Management. Cable Entry Provided from Top/ Bottom
- Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best Fit of Rack-mount Chassis
- Optional 120mm AC Cooling Fans Provide Excellent Air Circulation
- Custom Front Panel Door with Silk Screen Option Enhance Product Image and Uniformity in Product Line
- Optional Monitor Mount
- Vented Doors Provide Maximum Air Flow
- Locking Mechanism Design on Casters
- Comes with M5 Mounting Screws and Cage Nuts
Model Number | WG-129 |
RoHS Compliance | Yes |
Form Factor | 12U |
Industry Standard | EIA-310 |
Material | Frame:Aluminum
Base:SPCC Cold Rolled Steel t1.2 Mounting Rails:SPCC Cold Rolled Steel t2.0 Top Panel:SPCC Cold Rolled Steel t1.2 Side Panels:SPCC Cold Rolled Steel t1.2 Doors: SPCC Cold Rolled Steel t1.5 |
Color | Black (Special Color on Request) |
Loading Capacity | 2200 lbs |
Supported Chassis Depth | 29" and under |
Internal Dimensions | Depth: 29" max |
Cooling | Optional 3 sets of 120mm 120V AC fans can be installed on top (p/n: WA-SF120-2FAN) |
Dimensions (WxHxD) | 23.60" x 31.50" x 35.40"
599 mm x 800 mm x 899 mm |
Notes | - for HP/ DELL/ IBM servers equipped with sliding rails, please contact sales person for availability of model number WG-129-EX.
- HTS code: 8473.30.5100 (ECCN is not applicable). |
