WN Series WN158 Cabinet is built with high-quality aluminum/steel structures. With vented doors and cooling fans, WN series provides excellent air circulation for servers and other devices. Cabinet is completely lockable from the front/ rear doors and side panels to prevent unauthorized access. This stylish and secure 19" rack-mount cabinet protects your investment in computer equipment against environmental elements heat and dust. WN Series offer a superior environment for mission-critical equipment.

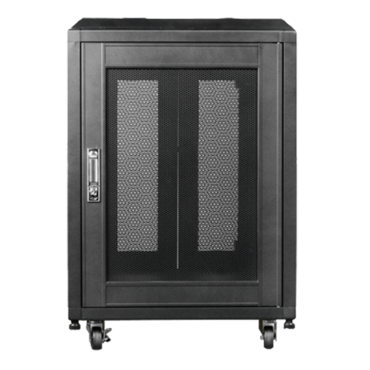

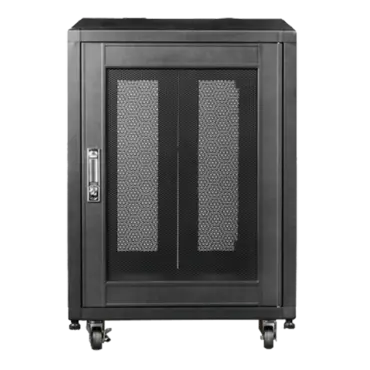

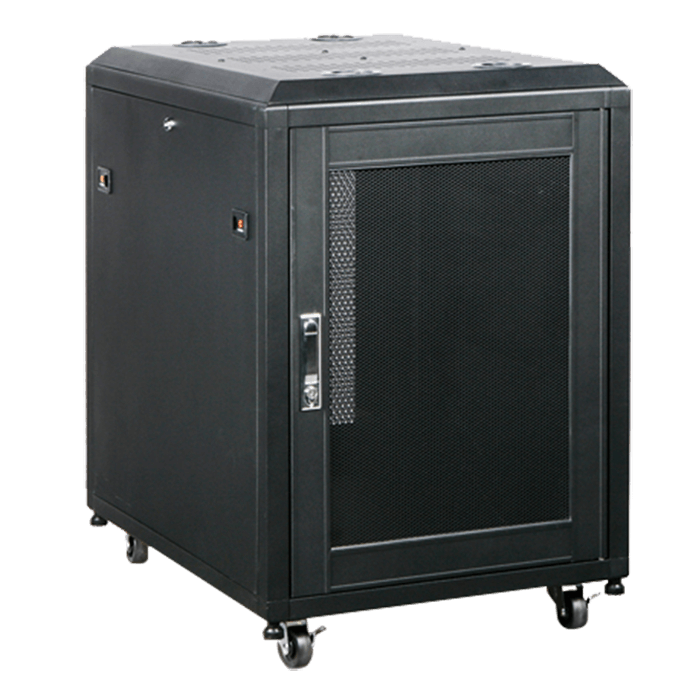

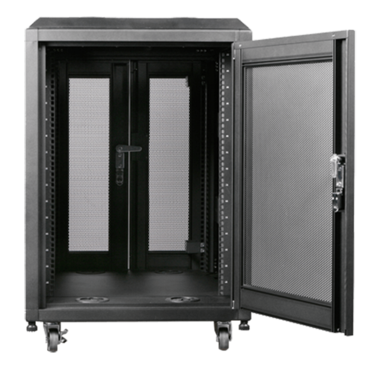

WN158 15U 800mm Depth Rack-mount Server Cabinet
|RoHS Compliance Version||Yes|
|Material||Side Panel:SPCC t:0.8mm
Horizontal Rails:SPCC t:2.0mm
Vertical Rails:SPCC t:2.0mm
Top Panel:SPCC t:1.2mm
|Loading Capacity||2200 lbs|
|Supported Chassis Depth||27.5" and under|
|Internal Dimensions||Height: 27.25"
Depth: outer post-to-post 26.5" max
|Cooling||Up to 3 sets of 120mm 120V AC fans can be installed on the top (p/n: WA-SF120-2FAN) Pre-installed 1 set.|
|Dimensions (WxHxD)||23.50" x 35.25" x 31.50"
597 mm x 895 mm x 800 mm
|Notes||- for HP/ DELL/ IBM servers equipped with sliding rails, please contact sales person for availability of model number WN158-EX.
- HTS code: 8473.30.5100 (ECCN is not applicable).
