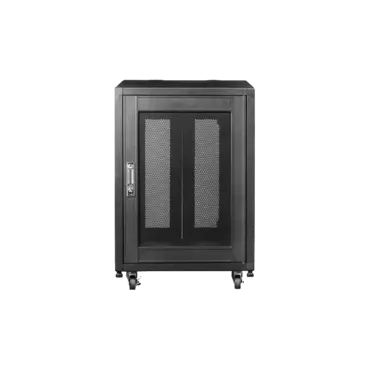

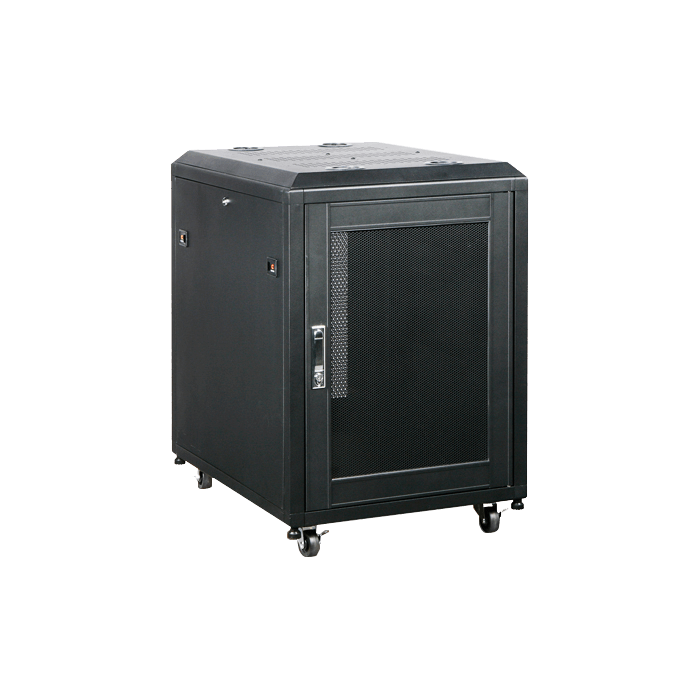

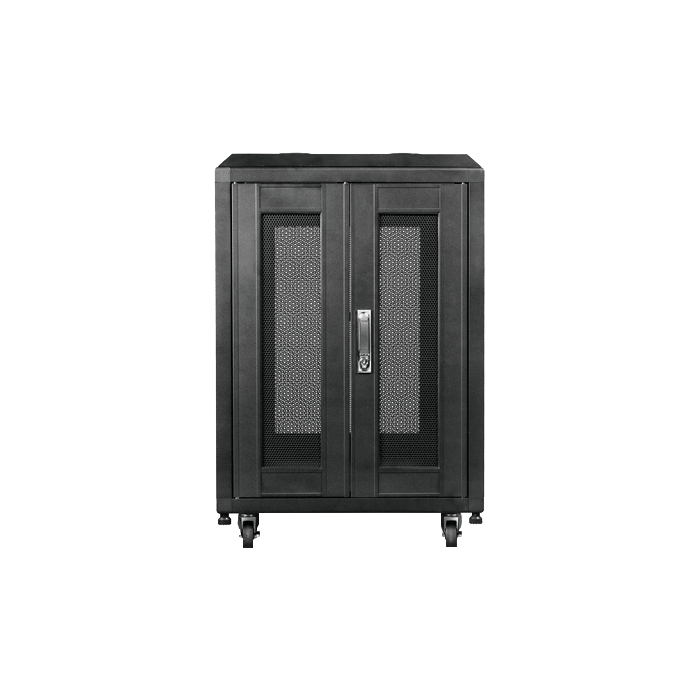

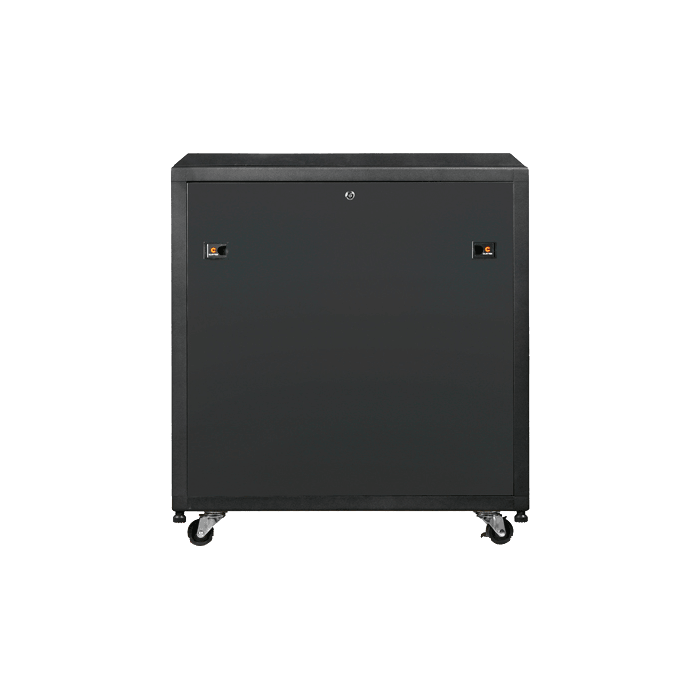

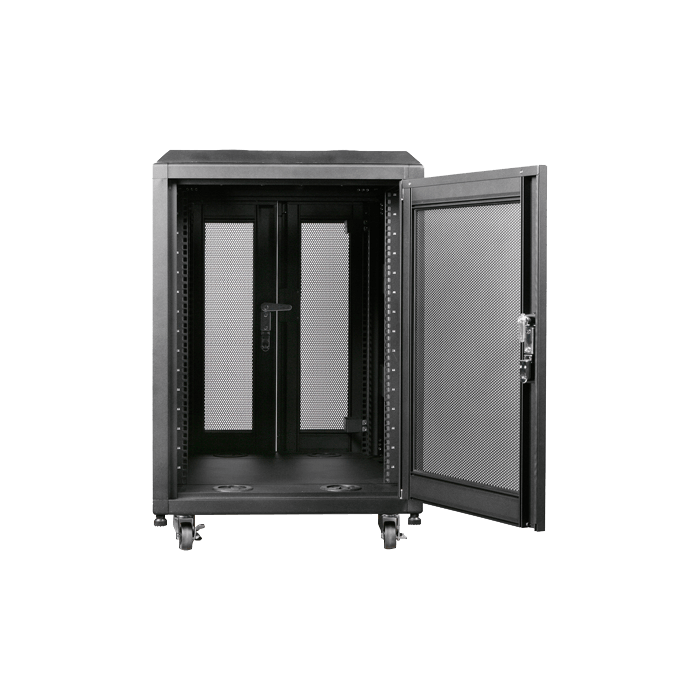

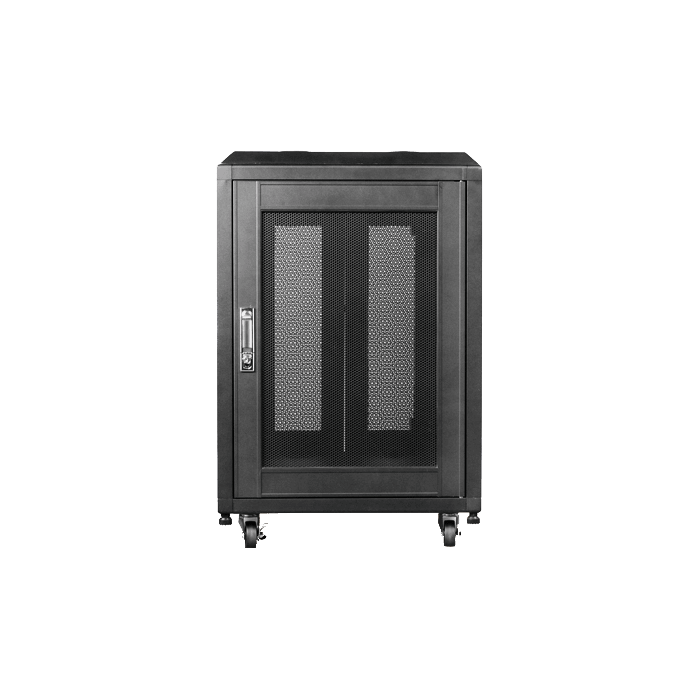

WN158-EX, 15U, 800mm Depth, Rack-mount Server Cabinet With Widened Mounting Posts
- SKU: 7283323
- Manufacturer: ISTARUSA
- MPN: WN158-EX
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
| RoHS Compliance | Yes |
| Form Factor | 15 |
| Loading Capacity | 2200 lb (997.90 kg) |
| Cooling | Up to 3 sets of 4.72" (120 mm)
120 VAC fans can be installed on the top (p/n: WASF120-2FAN) pre-installed 1 set |
| Material | Side panel: SPCC t: 0.8" (20.32 mm)
Horizontal rails: SPCC t: 2" (50.8 mm) Vertical rails: SPCC t: 2" (50.8 mm) Top panel: SPCC t: 1.2" (30.48 mm) |
| Supported Chassis Depth | 27.5" (698.5 mm) and under |
| Internal Dimensions | 27.25 x 27.5" (692.15 x 698.5 mm) maximum |
| Dimensions (W x H x D) | 23.5 x 35.25 x 31.5 " (596.9 x 895.35 x 800.1 mm) |
| Weight | 157 lb (71.21 kg) |
| Package Weight | 157.0 lb |
| Box Dimensions (LxWxH) | 40.0 x 33.0 x 25.0" |
