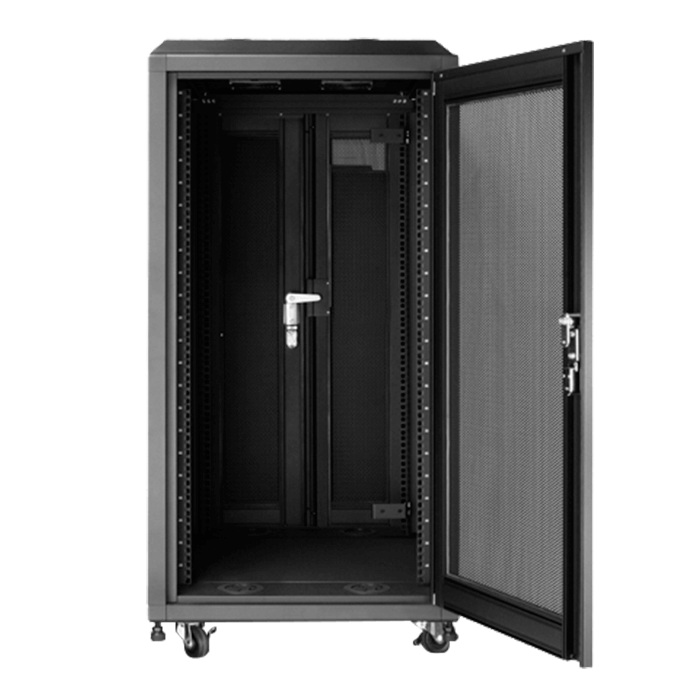

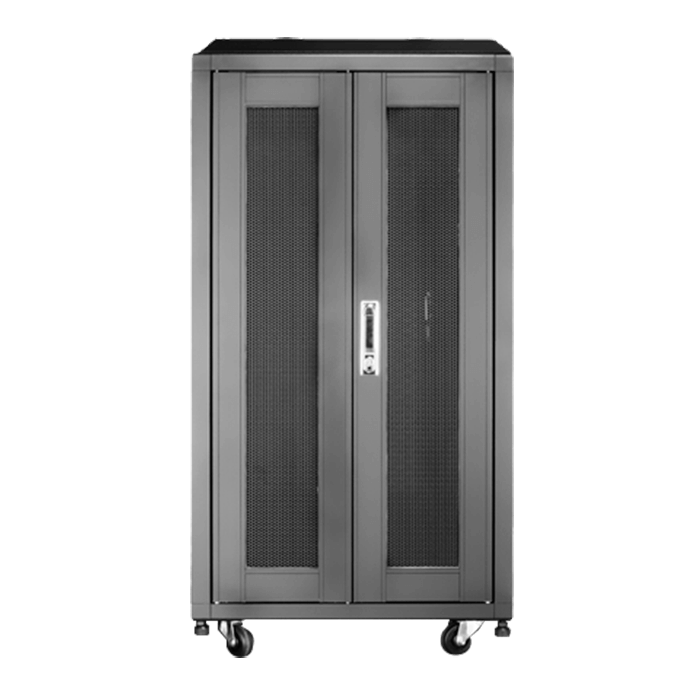

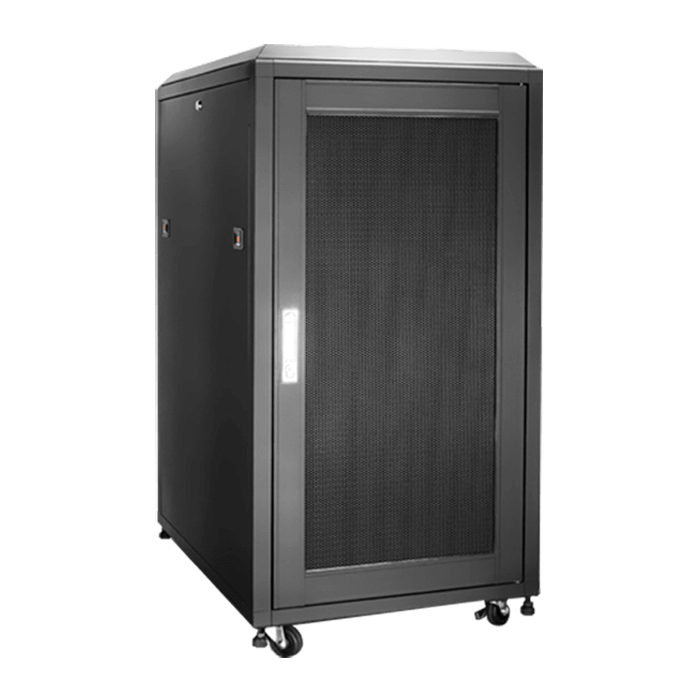

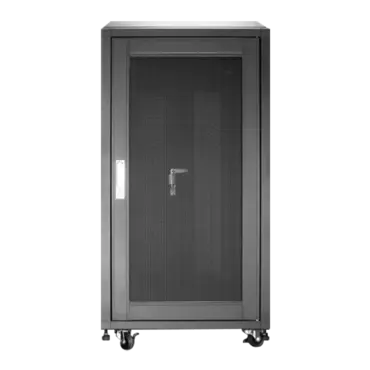

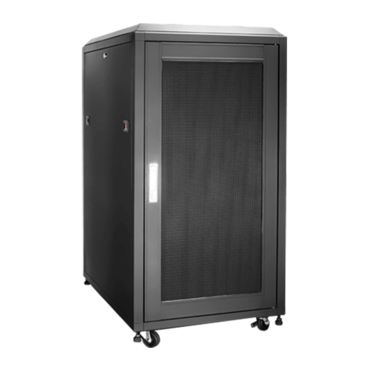

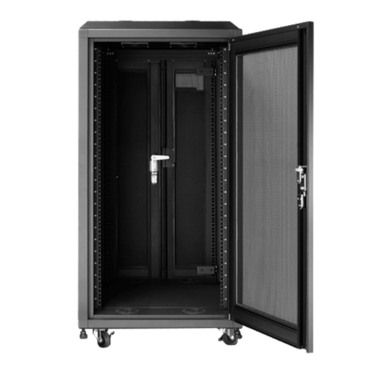

WN228, 22U, 800mm Depth, Rack-mount Server Cabinet

  • SKU: 2138756
  • Manufacturer: ISTARUSA
  • MPN: WN228
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
WN228, 22U, 800mm Depth, Rack-mount Server Cabinet

WN Series WN228 Cabinet is built with high-quality aluminum/steel structures. With vented doors and cooling fans, WN series provides excellent air circulation for servers and other devices. Cabinet is completely lockable from the front/ rear doors and side panels to prevent unauthorized access. This stylish and secure 19" rack-mount cabinet protects your investment in computer equipment against environmental elements heat and dust. WN Series offer a superior environment for mission-critical equipment.

WN228 22U 800mm Depth Rack-mount Server Cabinet

  • Universal Fit Most of Rackmount Chassis and Equipment
  • Double Rear Doors Provide Convenience and Take Less Space to Open
  • Front, Rear, and Side Security Lock to Prevent Unauthorized Access to Equipment and Data
  • Easy Cabling Management. Cable Entry Provided from Top/ Bottom and Front/ Back
  • Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best Fit of Rack-mount Chassis
  • Vented Doors Provide Maximum Air Flow
  • 120mm AC Cooling Fans Provide Excellent Air Circulation
  • Custom Front Panel Door with Silk Screen Option Enhance Product Image and Uniformity in Product Line
  • Locking Mechanism Design on Casters
  • Comes with 50 sets of M5 Mounting Screws and Cage Nuts
Model Number WN228
RoHS Compliance Version Yes
Form Factor 22U
Industry Standard EIA-310
Material Side Panel:SPCC t:0.8mm
Horizontal Rails:SPCC t:2.0mm
Vertical Rails:SPCC t:2.0mm
Top Panel:SPCC t:1.2mm
Color Black (RAL9011)
Loading Capacity 2200 lbs
Supported Chassis Depth 27.5" and under
Internal Dimensions Height: 39.75"
Depth: outer post-to-post 26.5" max
Cooling Up to 3 sets of 120mm 120V AC fans can be installed on the top (p/n: WA-SF120-2FAN) Pre-installed 1 set.
Dimensions (WxHxD) 23.50" x 47.75" x 31.50"
597 mm x 1,213 mm x 800 mm
Notes - for HP/ DELL/ IBM servers equipped with sliding rails, please contact sales person for availability of model number WN228-EX.
- HTS code: 8473.30.5100 (ECCN is not applicable).
