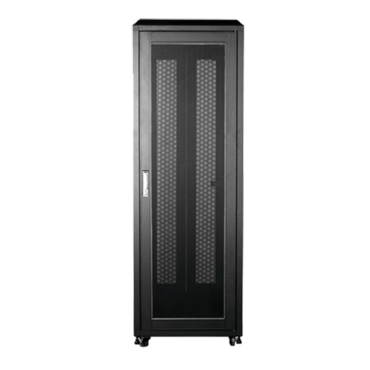

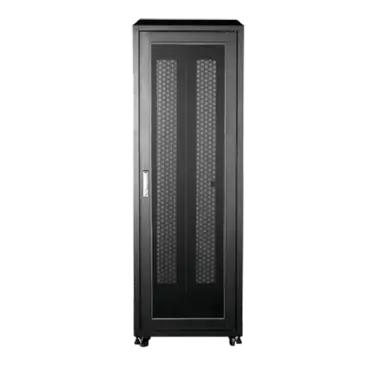

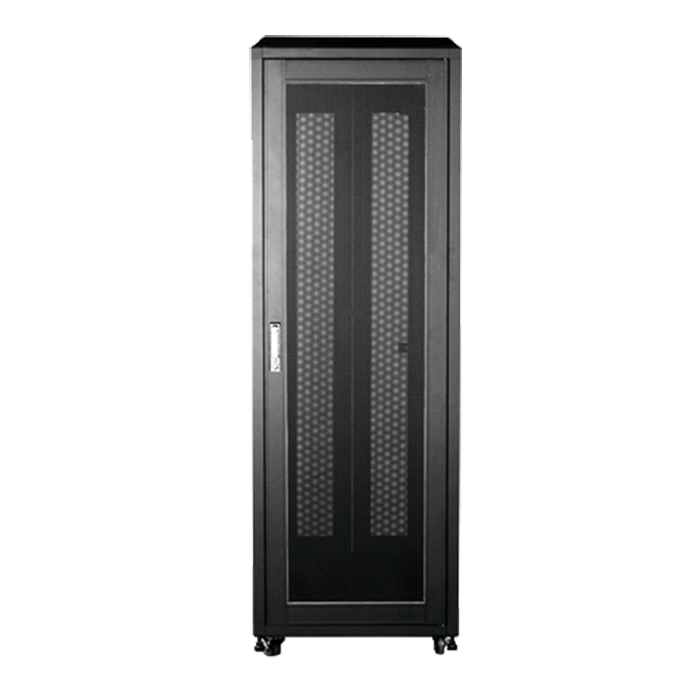

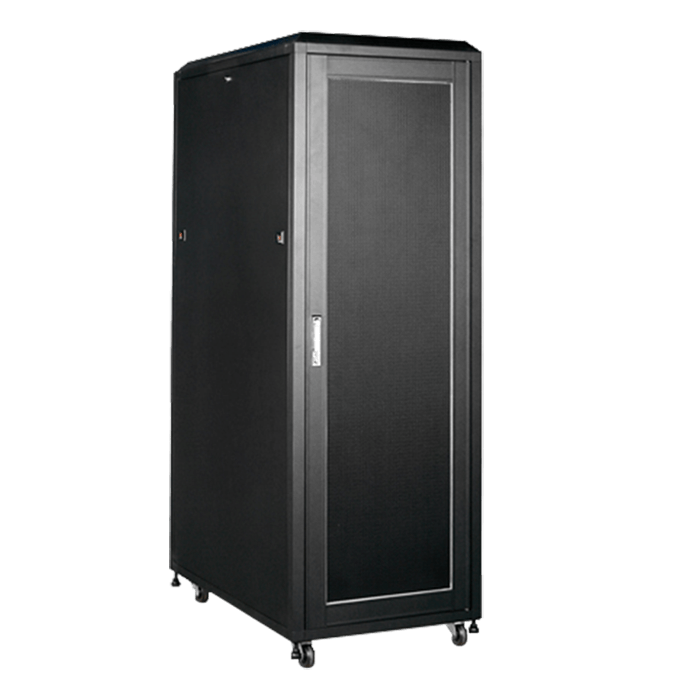

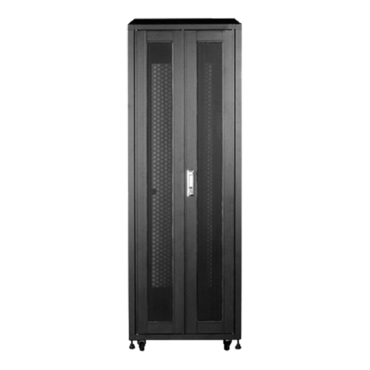

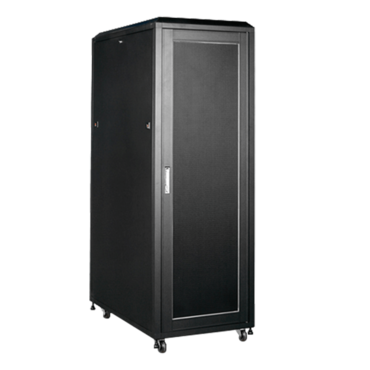

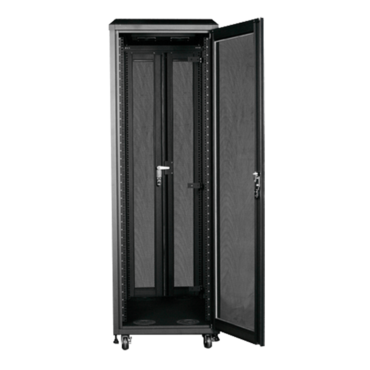

WN3610, 36U, 1000mm Depth, Rack-mount Server Cabinet
WN Series WN3610 Cabinet is built with high-quality aluminum/steel structures. With vented doors and cooling fans, WN series provides excellent air circulation for servers and other devices. Cabinet is completely lockable from the front/ rear doors and side panels to prevent unauthorized access. This stylish and secure 19" rack-mount cabinet protects your investment in computer equipment against environmental elements heat and dust. WN Series offer a superior environment for mission-critical equipment.
WN3610 36U 1000mm Depth Rack-mount Server Cabinet
- Universal Fit Most of Rackmount Chassis and Equipment

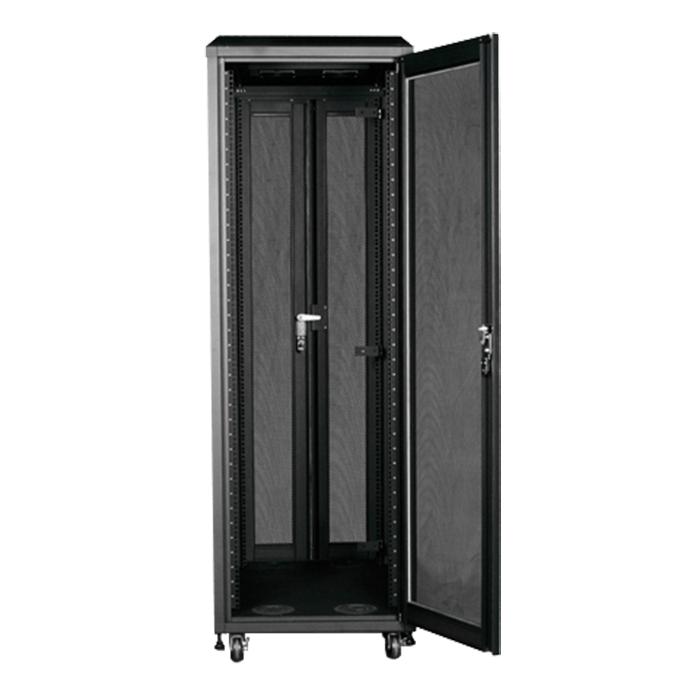

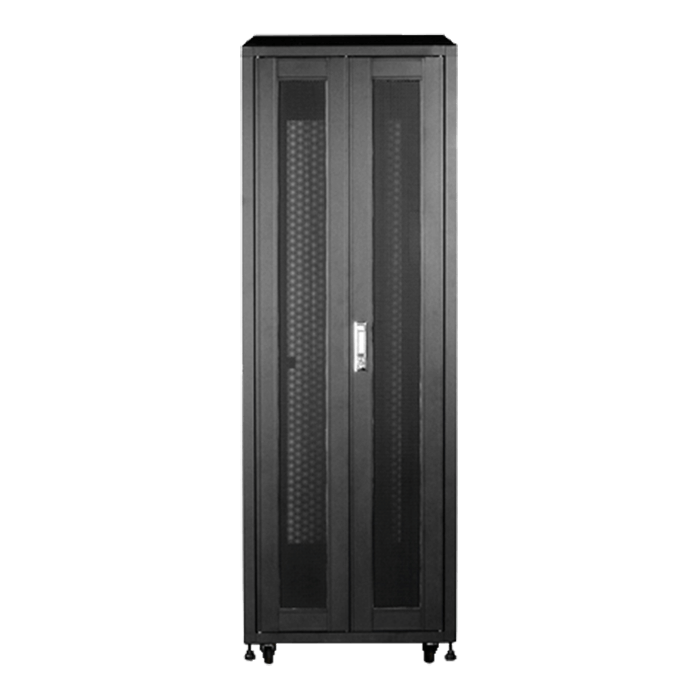

- Double Rear Doors Provide Convenience and Take Less Space to Open
- Front, Rear, and Side Security Lock to Prevent Unauthorized Access to Equipment and Data
- Easy Cabling Management. Cable Entry Provided from Top/ Bottom and Front/ Back
- Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best Fit of Rack-mount Chassis
- Vented Doors Provide Maximum Air Flow
- 120mm AC Cooling Fans Provide Excellent Air Circulation
- Custom Front Panel Door with Silk Screen Option Enhance Product Image and Uniformity in Product Line
- Locking Mechanism Design on Casters
- Comes with 50 sets of M5 Mounting Screws and Cage Nuts
Model Number | WN3610 |
RoHS Compliance Version | Yes |
Form Factor | 36U |
Industry Standard | EIA-310 |
Material | Side Panel:SPCC t:0.8mm Horizontal Rails:SPCC t:2.0mm Vertical Rails:SPCC t:2.0mm Top Panel:SPCC t:1.2mm |
Color | Black (RAL9011) |
Loading Capacity | 2200 lbs |
Supported Chassis Depth | 34" and under |
Internal Dimensions | Height: 64.25" Depth: outer post-to-post 34.25" max |
Cooling | Up to 3 sets of 120mm 120V AC fans can be installed on the top (p/n: WA-SF120-2FAN) Pre-installed 1 set. |
Dimensions (WxHxD) | 23.50" x 71.75" x 39.50" 597 mm x 1,822 mm x 1,003 mm |
Notes | - for HP/ DELL/ IBM servers equipped with sliding rails, please contact sales person for availability of model number WN3610-EX. - HTS code: 8473.30.5100 (ECCN is not applicable). |
