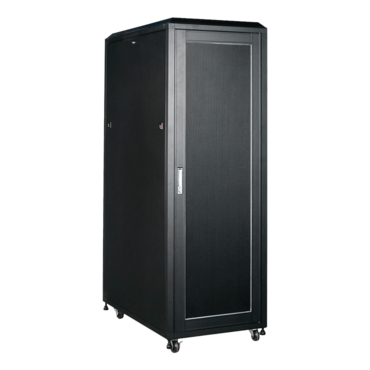

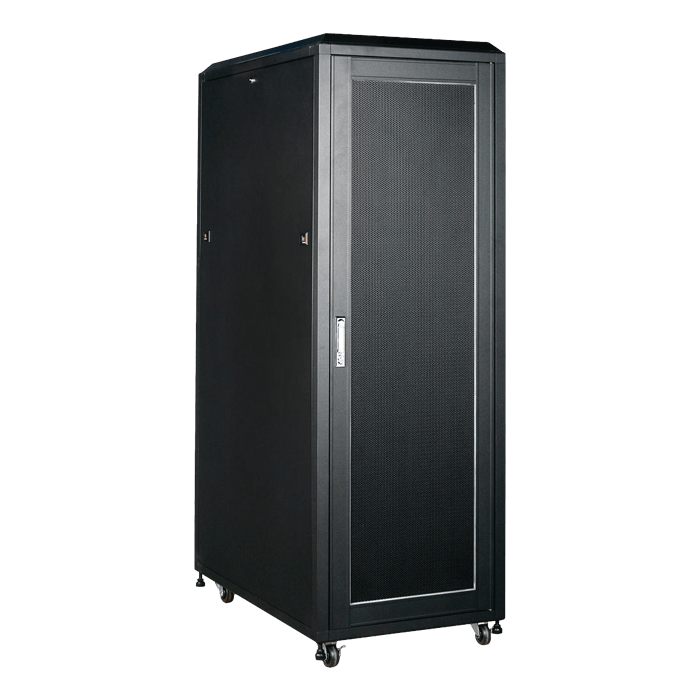

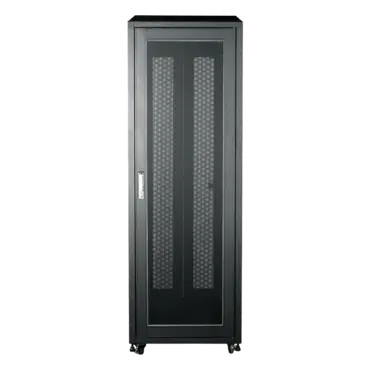

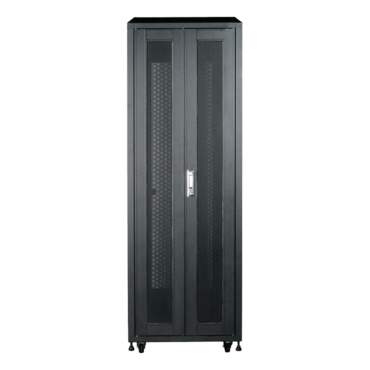

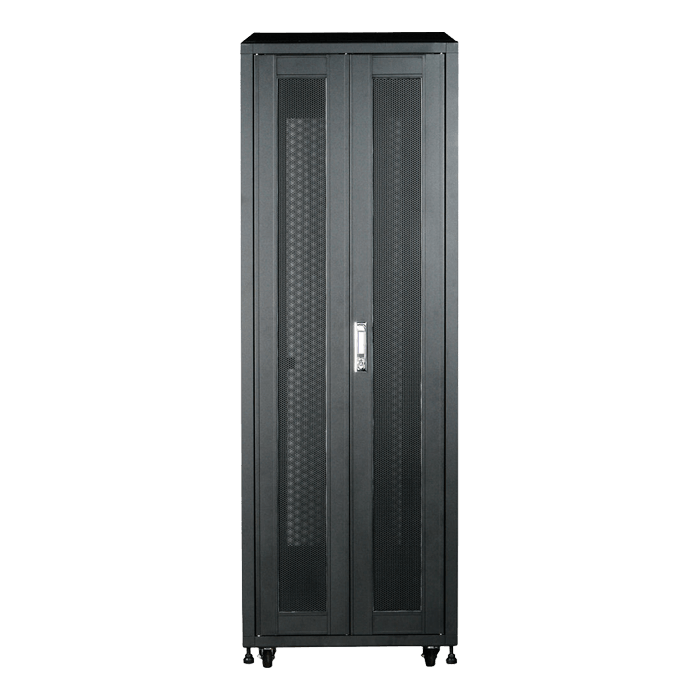

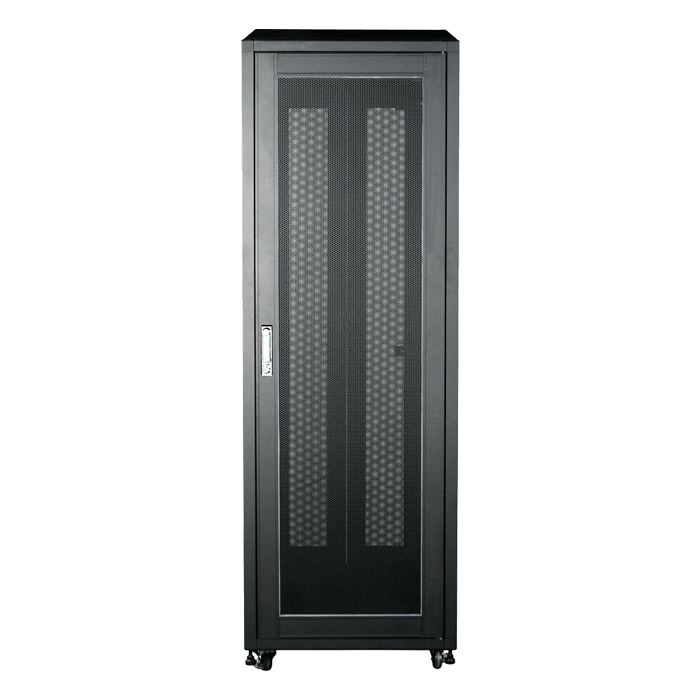

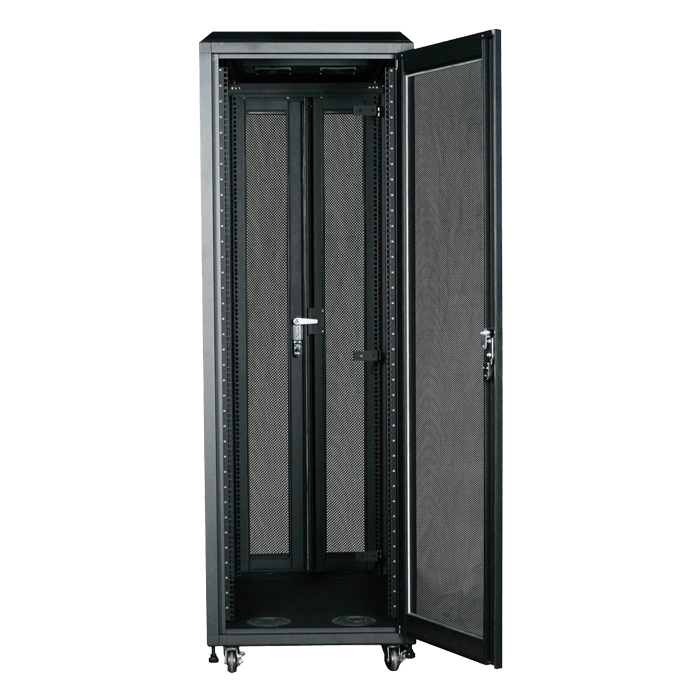

WN Series (WN3610) Cabinet is built with high-quality aluminum/steel structures. With vented doors and cooling fans, WN series provides excellent air circulation for servers and other devices. Cabinet is completely lockable from the front/ rear doors and side panels to prevent unauthorized access. This stylish and secure 19" rack-mount cabinet protects your investment in computer equipment against environmental elements heat and dust. WN Series offer a superior environment for mission-critical equipment.

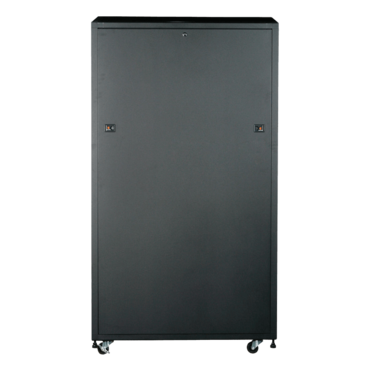

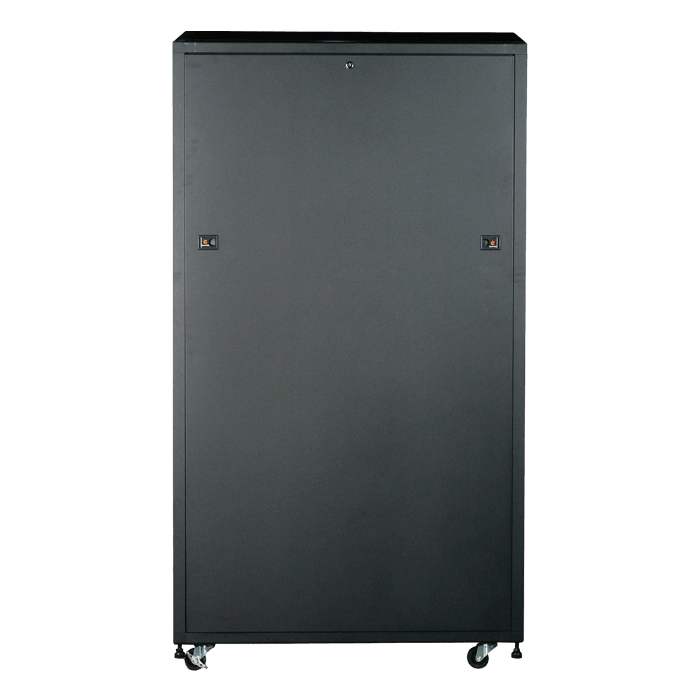

|Material||Side Panel:SPCC t:0.8mm
Horizontal Rails:SPCC t:2.0mm
Vertical Rails:SPCC t:2.0mm
Top Panel:SPCC t:1.2mm
|Loading Capacity||static loading w/o casters:2200lbs/ static loading with casters:880lbs/ dynamic loading:660lbs|
|Supported Chassis Depth||34" and under|
|Internal Dimensions||Height: 64.25"
Depth: outer post-to-post 34.25" max
|Cooling||Up to 3 sets of 120mm 120V AC fans can be installed on the top (p/n: WA-SF120-2FAN) Pre-installed 1 set.|
|Dimensions (WxHxD)||23.50" x 71.75" x 39.50"
597 mm x 1,822 mm x 1,003 mm
|Notes||- for HP/ DELL/ IBM servers equipped with sliding rails, please contact sales person for availability of model number WN3610-EX.
- HTS code: 8473.30.5100 (ECCN is not applicable).
- please refer to P/N WA-PLATE-HD if you need to enhance the loading capacity.
