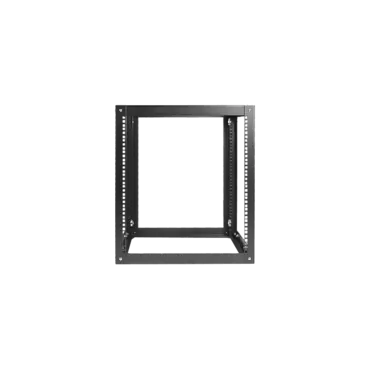

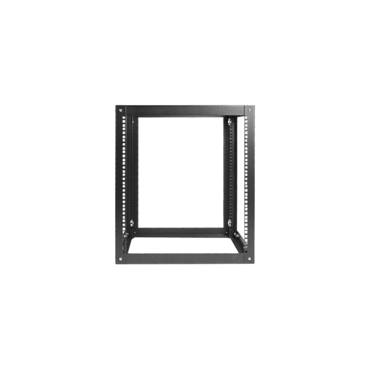

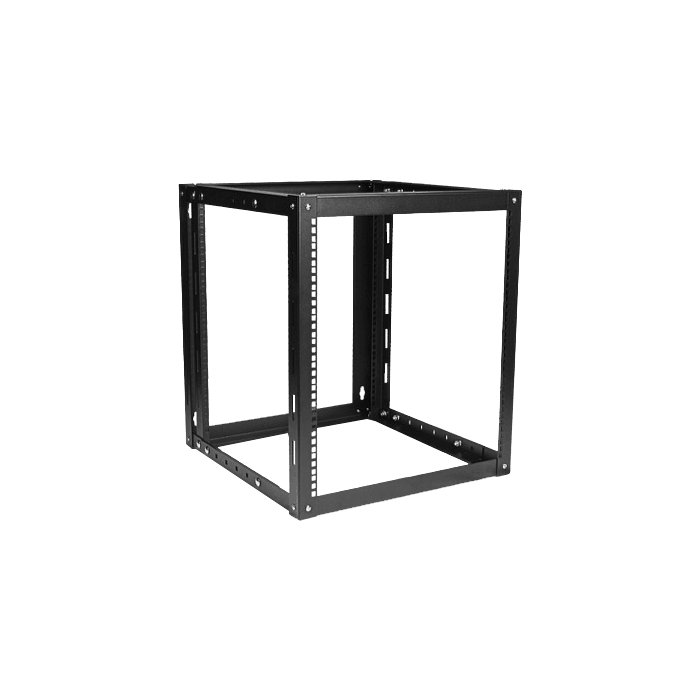

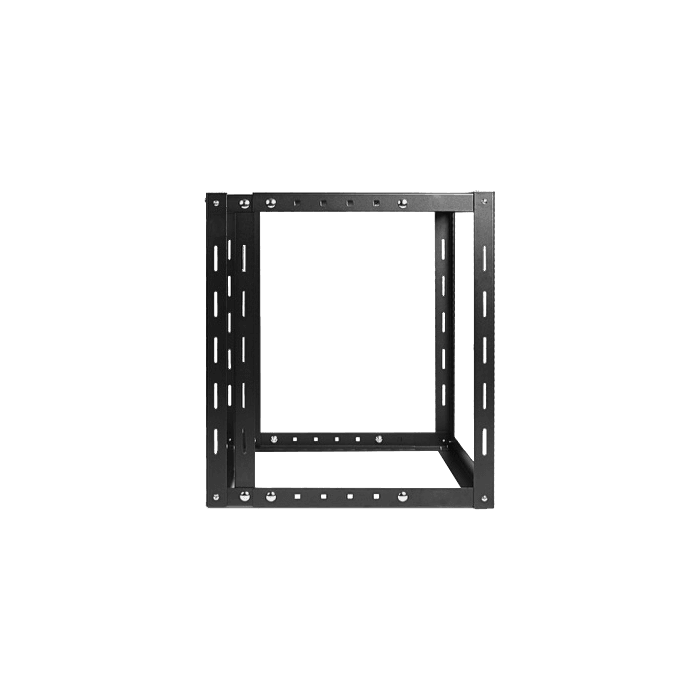

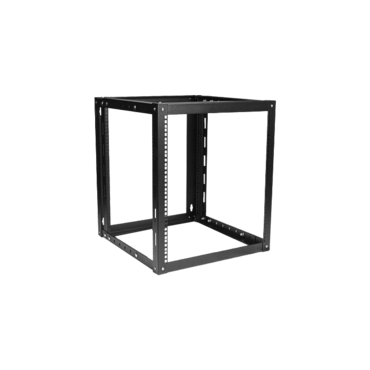

WOM1280-KBR1U, 12U, 800mm, Adjustable Wallmount Server Cabinet with 1U Keyboard Drawer

Quantity:
  • SKU: 12125677
  • Manufacturer: ISTARUSA
  • MPN: WOM1280-KBR1U
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$164.45
Quantity:

WOM1280-KBR1U 12U 800mm Adjustable Wallmount Server Cabinet with 1U Keyboard Drawer

  • Sturdy and Rugged Frame Structure
  • Adjustable Depth, Suitable for a Wide Variety of Rackmount Equipment
  • Universal Fit Most of Rackmount Chassis and Equipment
  • SPCC High-Quality Cold Roll Steel
  • Open Frame Construction Enables Quick Access to Rackmount System
  • Easy Assemble and Disassemble
  • Comes with Flat Packaging

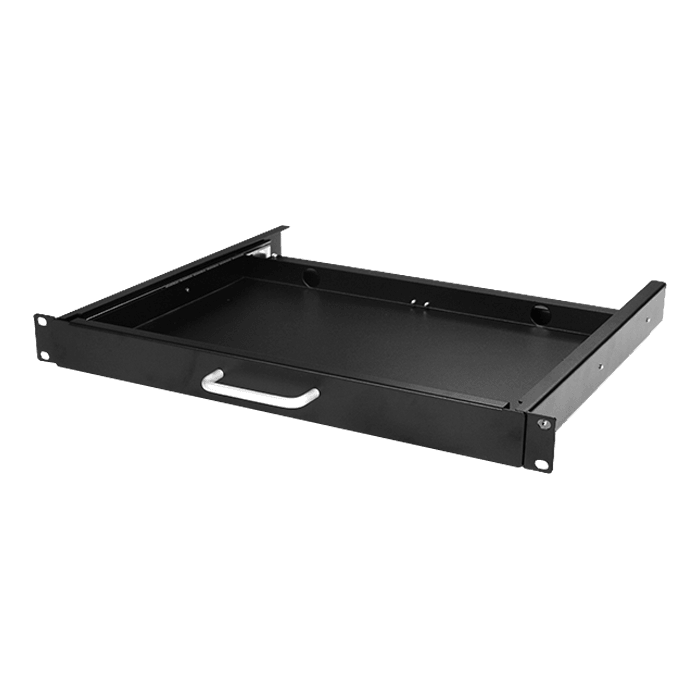

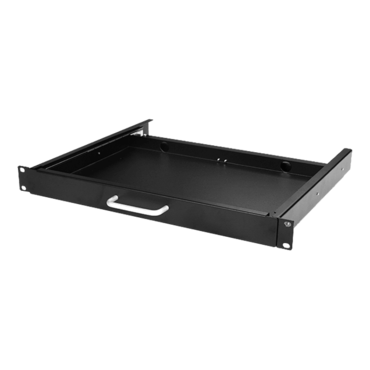

  • Comes with an 1U Keyboard Drawer
Model Number WOM1280-KBR1U
RoHS Compliance Version Yes
Form Factor 12U
Industry Standard EIA-310
Material SPCC t:2.0mm
Color Black
Loading Capacity 145 lbs
Supported Chassis Depth *31.5" and under
Dimensions (WxHxD) 20.91" x 24.19" x 19.69"
531 mm x 614 mm x 500 mm
Notes * maximum depth of rack is 800 mm (31.5"). for heavy equipment, depth adjusted to 750 mm (29.53") or 700 mm (27.56") is suggested. see drawing for details.

- minimum depth 500 mm (19.69") is w/o the rear adjustable mounting rails. with the rails, the minimum depth is 550 mm (21.65"). see drawing for details.
