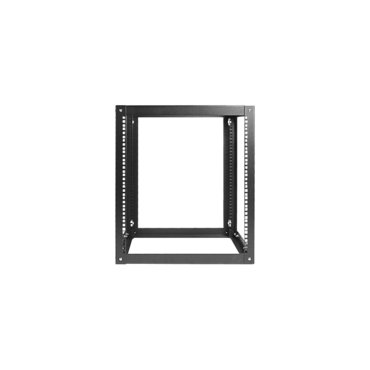

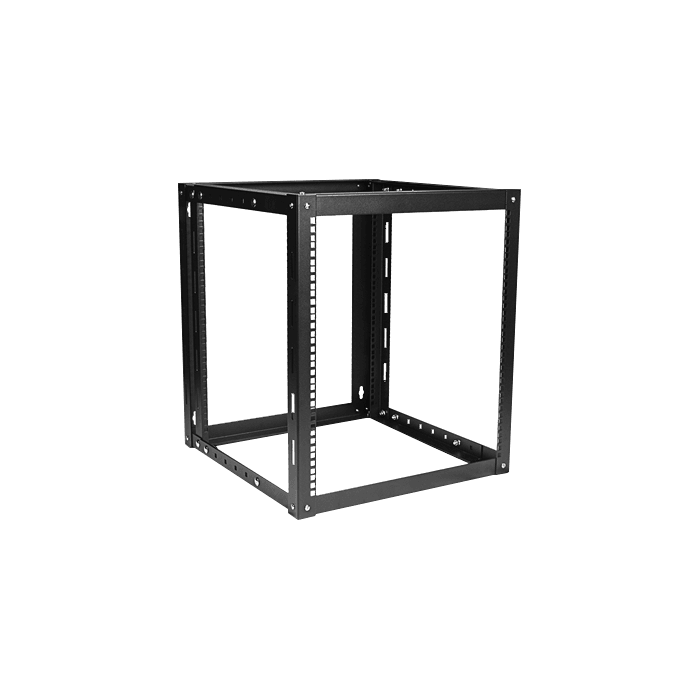

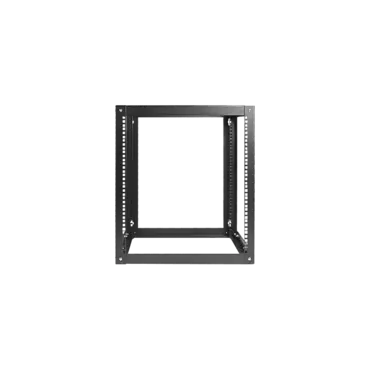

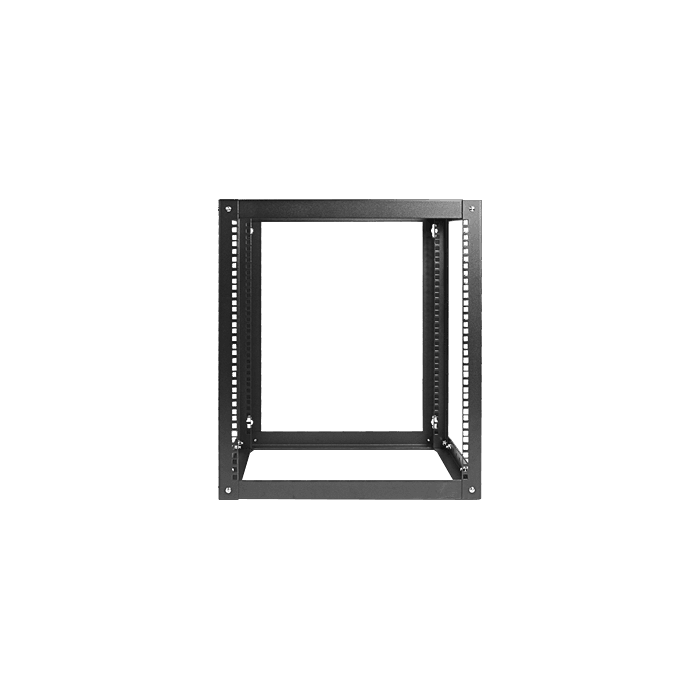

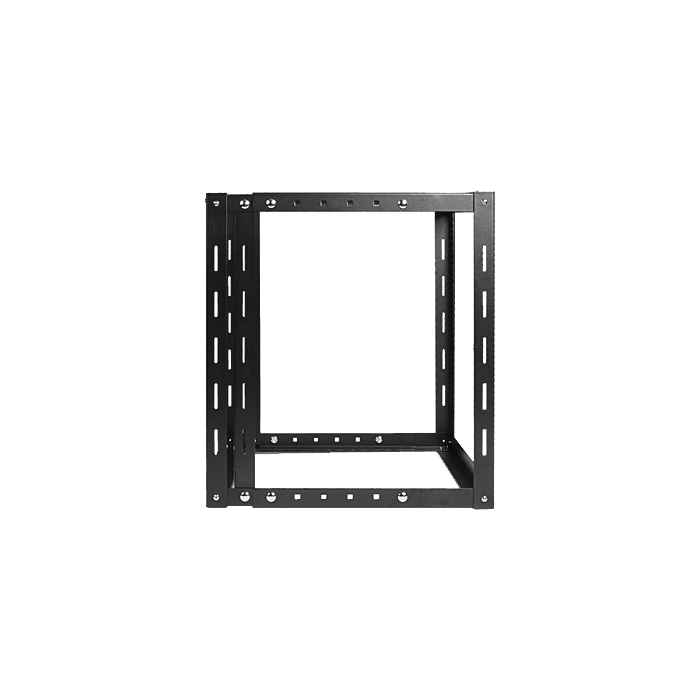

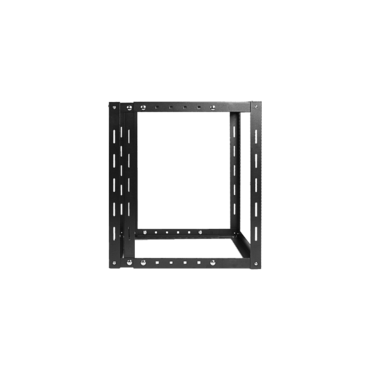

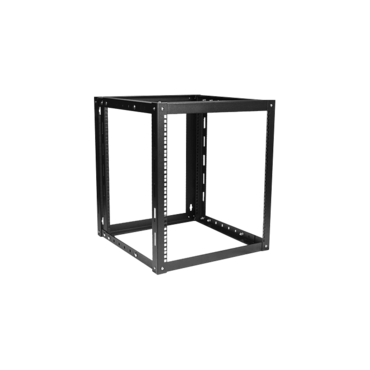

WOM1280-P1U, 12U, 800mm, Adjustable Wallmount Server Cabinet with 1U Cover Plate
Quantity:
- SKU: 11620889
- Manufacturer: ISTARUSA
- MPN: WOM1280-P1U
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$156.39
WOM1280-P1U, 12U, 800mm, Adjustable Wallmount Server Cabinet with 1U Cover Plate
WOM (WOM1280-P1U) 4-post adjustable wallmount rack series is built with high-quality steel structures. With adjustable depth, this rack is versatile to fit all kind of standard 19" equipment no matter shallow or deep. The WOM series open frame wallmount rack is a cost-effective solution for rack-mount devices and optimized for SOHOs, small business, research institutions, and etc. Also open frame rack has higher thermal manageability by room or central air conditioning.
WOM1280-P1U 12U 800mm Adjustable Wallmount Server Cabinet with 1U Cover Plate
- Sturdy and Rugged Frame Structure
- Adjustable Depth, Suitable for a Wide Variety of Rackmount Equipment
- Universal Fit Most of Rackmount Chassis and Equipment
- SPCC High-Quality Cold Roll Steel
- Open Frame Construction Enables Quick Access to Rackmount System
- Easy Assemble and Disassemble
- Comes with Flat Packaging

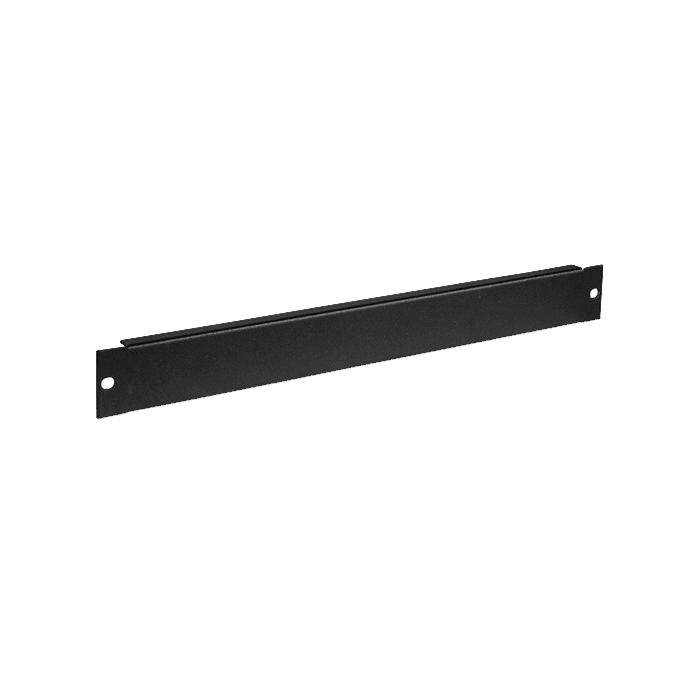

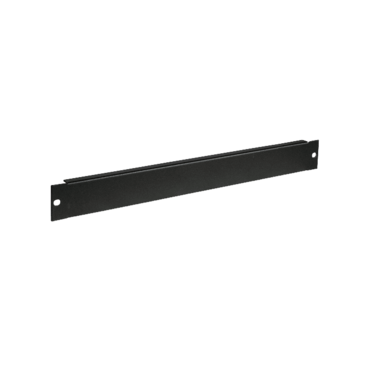

- Comes with an 1U Cover Plate
| Model Number | WOM1280-P1U |
| RoHS Compliance Version | Yes |
| Form Factor | 12U |
| Industry Standard | EIA-310 |
| Material | SPCC t:2.0mm |
| Color | Black |
| Loading Capacity | 145 lbs |
| Supported Chassis Depth | *31.5" and under |
| Dimensions (WxHxD) | 20.91" x 24.19" x 19.69"
531 mm x 614 mm x 500 mm |
| Notes | * maximum depth of rack is 800 mm (31.5"). for heavy equipment, depth adjusted to 750 mm (29.53") or 700 mm (27.56") is suggested. see drawing for details.
- minimum depth 500 mm (19.69") is w/o the rear adjustable mounting rails. with the rails, the minimum depth is 550 mm (21.65"). see drawing for details. |
