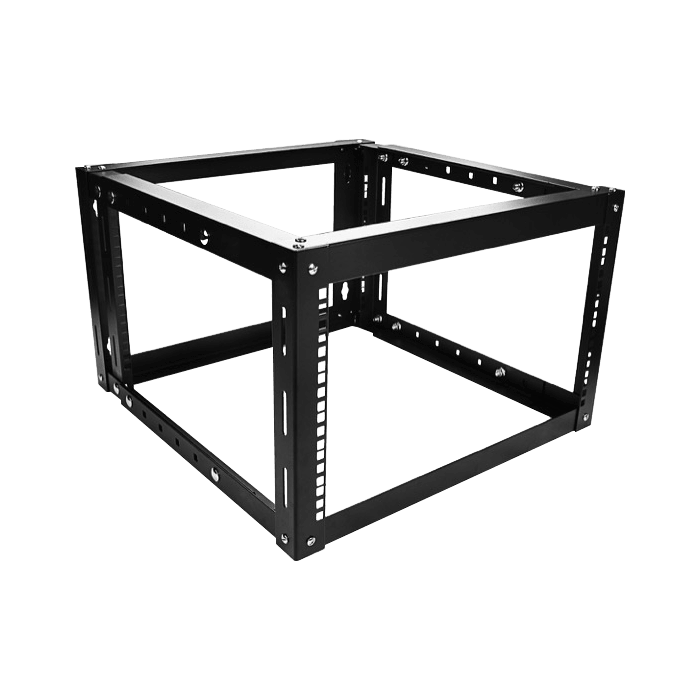

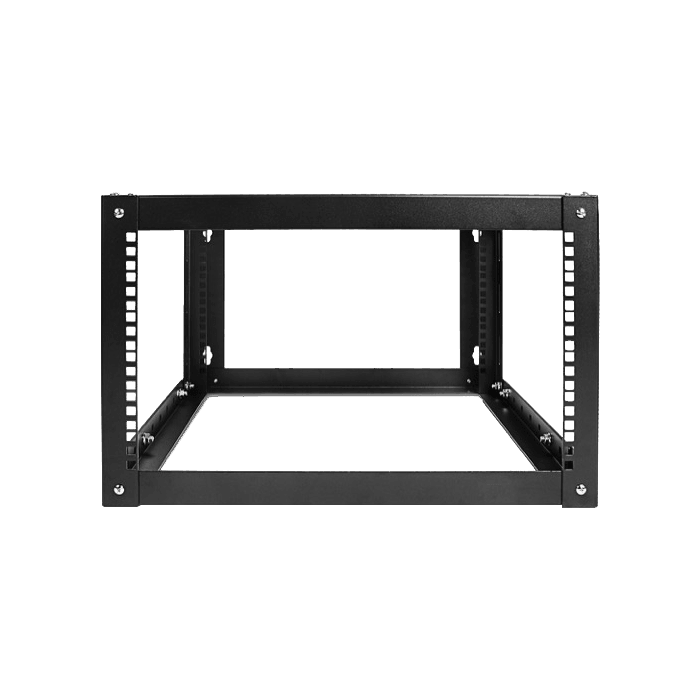

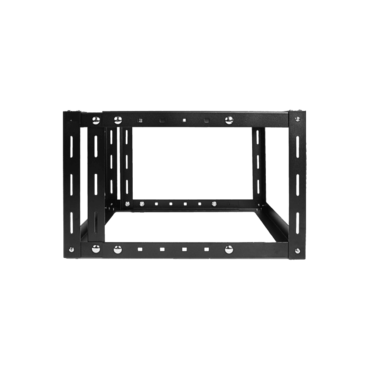

WOM680-CM2U, 6U, 800mm, Adjustable Wallmount Server Cabinet with 2U Cable Management

Quantity:
  • SKU: 12145751
  • Manufacturer: ISTARUSA
  • MPN: WOM680-CM2U
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$136.84
Quantity:

WOM680-CM2U 6U 800mm Adjustable Wallmount Server Cabinet with 2U Cable Management

  • Sturdy and Rugged Frame Structure
  • Adjustable Depth, Suitable for a Wide Variety of Rackmount Equipment
  • Universal Fit Most of Rackmount Chassis and Equipment
  • SPCC High-Quality Cold Roll Steel
  • Open Frame Construction Enables Quick Access to Rackmount System
  • Easy Assemble and Disassemble
  • Comes with Flat Packaging

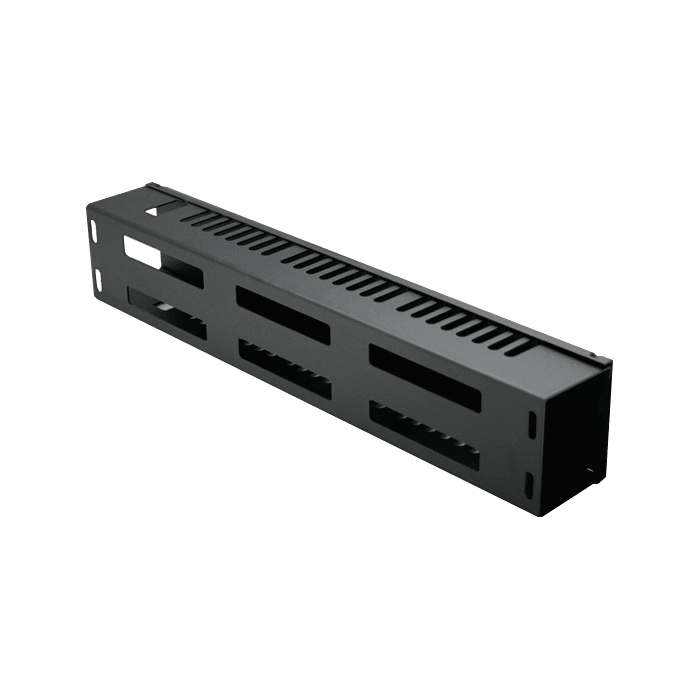

  • Comes with a 2U Cable Management
Model Number WOM680-CM2U
RoHS Compliance Version Yes
Form Factor 6U
Industry Standard EIA-310
Material SPCC t:2.0mm
Color Black
Loading Capacity 145 lbs
Supported Chassis Depth *31.5" and under
Dimensions (WxHxD) 20.91" x 13.69" x 19.69"
531 mm x 348 mm x 500 mm
Notes * maximum depth of rack is 800 mm (31.5"). for heavy equipment, depth adjusted to 750 mm (29.53") or 700 mm (27.56") is suggested. see drawing for details.

- minimum depth 500 mm (19.69") is w/o the rear adjustable mounting rails. with the rails, the minimum depth is 550 mm (21.65"). see drawing for details.
