WOM680-SFH25, 6U, 800mm, Adjustable Wallmount Server Cabinet with 1U Supporting Tray
WOM WOM680-SFH25 4-post adjustable wallmount rack series is built with high-quality steel structures. With adjustable depth, this rack is versatile to fit all kind of standard 19" equipment no matter shallow or deep. The WOM series open frame wallmount rack is a cost-effective solution for rack-mount devices and optimized for SOHOs, small business, research institutions, and etc. Also open frame rack has higher thermal manageability by room or central air conditioning.
WOM680-SFH25 6U 800mm Adjustable Wallmount Server Cabinet with 1U Supporting Tray
- Sturdy and Rugged Frame Structure
- Adjustable Depth, Suitable for a Wide Variety of Rackmount Equipment
- Universal Fit Most of Rackmount Chassis and Equipment
- SPCC High-Quality Cold Roll Steel
- Open Frame Construction Enables Quick Access to Rackmount System
- Easy Assemble and Disassemble
- Comes with Flat Packaging

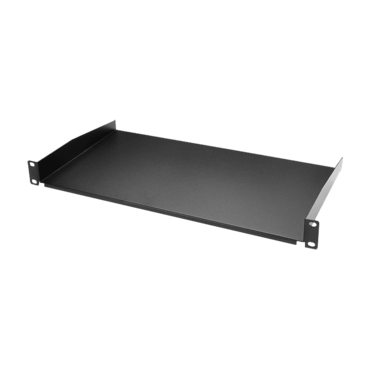

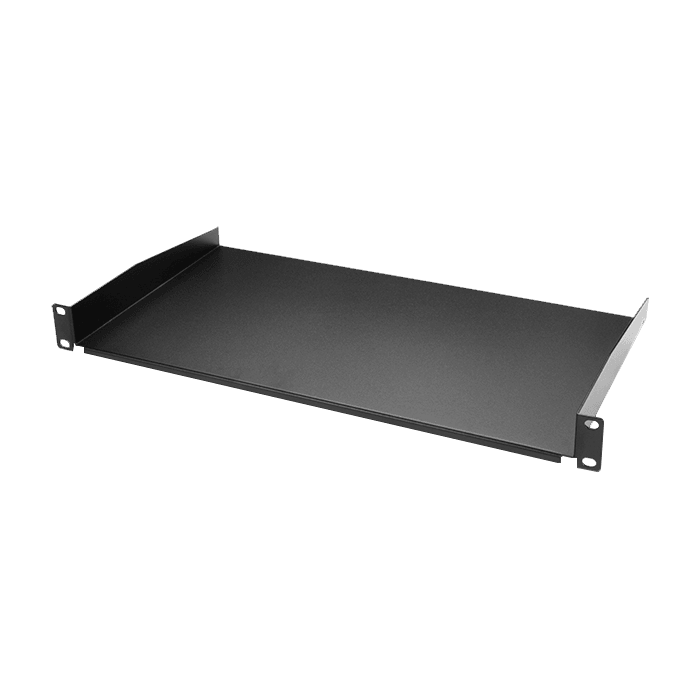

- Comes with an 1U Supporting Tray
Model Number | WOM680-SFH25 |
RoHS Compliance | Yes |
Form factor | 6 U |
Standard Drive Bays | None |
Material of Main Chassis | SPCC t:2.0mm |
Supported Chassis Depth | *31.5" and under |
Color of Main Chassis | Black |
Dimensions (WxHxD) | 20.91" x 13.69" x 19.69"
531.1 mm x 347.7 mm x 500.1 mm |
Notes | * maximum depth of rack is 800 mm (31.5"). for heavy equipment, depth adjusted to 750 mm (29.53") or 700 mm (27.56") is suggested. see drawing for details.
- minimum depth 500 mm (19.69") is w/o the rear adjustable mounting rails. with the rails, the minimum depth is 550 mm (21.65"). see drawing for details. |
