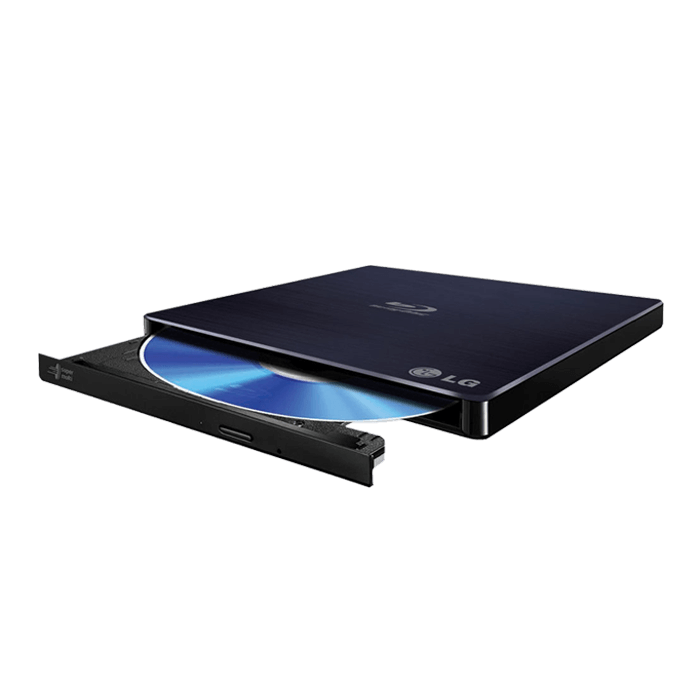

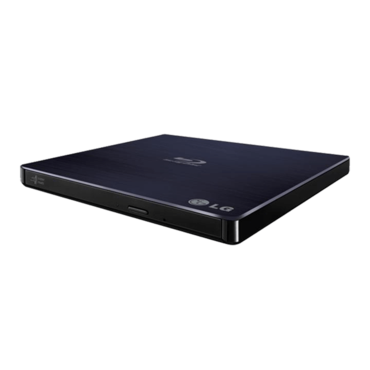

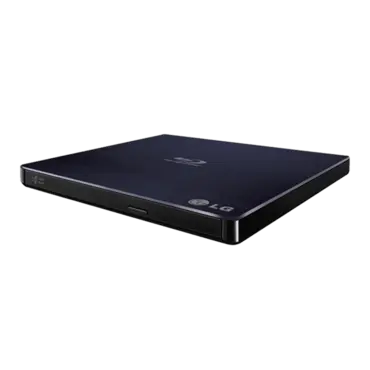

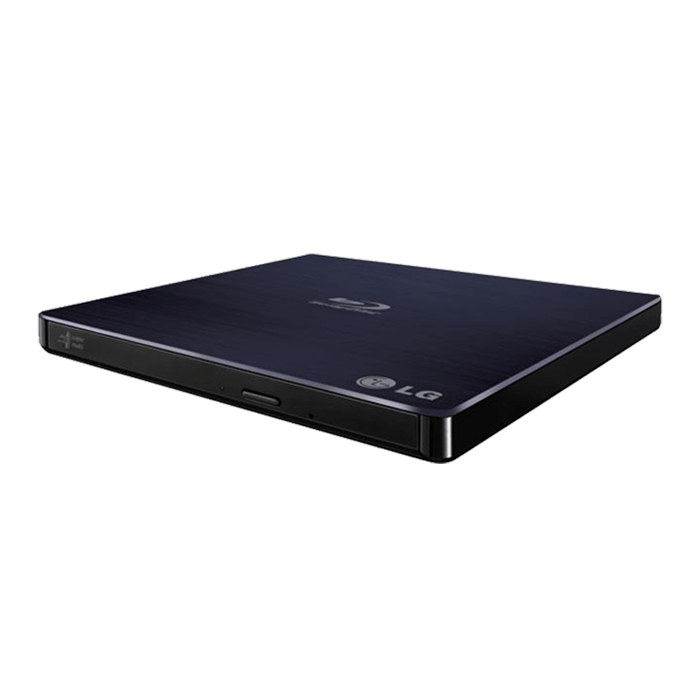

WP50NB40, BD 6x / DVD 8x / CD 24x, Blu-ray Disc Burner, USB 2.0, Slim, External Optical Drive
Slim External 8x DVDRW USB Retail, Black. Write: BD-R 6x, BD-R DL 6x, BD-RW 2x, DVD+R 8x, DVD+R DL 6x, DVD-R DL 6x, DVD-R 8x, DVDRAM 5x, DVD+RW 8x, DVD-RW 6x. CD: CD-R 24x, CD-RW 16x. Read: BD 6x, DVD 8x, CD 24x
TRANSFER RATES–WRITE (MAX)
| Type |
Slim Portable Blu-ray / DVD Writer |
| BD-R (SL) |
2x CLV, 4x PCAV, 6x CAV |
| M-Disc BD (BD-R SL) |
2x CLV, 4x PCAV |
| BD-R (DL) |
2x CLV, 4x PCAV, 6x CAV |
| BD-R (TL) |
2x CLV, 4x PCAV |
| BD-R (QL) |
2x CLV, 4x PCAV |
| BD-R (LTH) |
2x CLV, 4x PCAV, 6x CAV |
| BD-RE (SL/DL/TL) |
2x CLV |
| DVD-R (SL) |
2x CLV, 4x PCAV, 8x CAV |
| DVD-R (DL) |
2x CLV, 4x, 6x ZCLV |
| DVD+R (SL) |
2.4x CLV, 4X PCAV, 8x CAV |
| M-Disc DVD (DVD+R SL) |
4x PCAV |
| DVD+R (DL) |
2.4x CLV, 6x ZCLV |
| DVD+RW |
2.4x, 3.3x CLV, 4x, 6x, 8x ZCLV |
| DVD-RW |
2x, 3x CLV, 4x, 6x ZCLV |
| DVD-RAM |
2x, 3x CLV, 5x PCAV |
| CD-R |
10x CLV, 16x, 24x CAV |
| CD-RW |
4x, 10x CLV, 16x ZCLV |
TRANSFER RATES - WRITE (MAX)
| BD-ROM (SL/DL) |
6x CAV |
| BD-R (SL/DL) |
6x CAV |
| BD-R (TL/QL) |
6x CAV |
| BD-RE (SL/DL) |
6x CAV |
| BD-RE (TL) |
4x PCAV |
| BDMV (AACS Compliant Disc) (SL/DL) |
6x CAV |
| DVD-ROM (SL/DL) |
8x CAV |
| DVD-Video (CSS Compliant Disc) (SL/DL) |
8x CAV |
| DVD-R (SL/DL) |
8x CAV |
| CD-R/RW/ROM |
24x / 24x / 24x CAV |
| DVD+R (SL/DL) |
8x CAV |
| CD-DA |
24x CAV |
OTHER FEATURES
| Silent Play |
Yes |
| Jamless Play |
Yes |
| TV Connectivity (Function needs to be added) |
Yes |
ACCESS TIME (1/3 STROKE)
| BD-ROM |
250ms typ. |
| DVD-ROM |
200ms typ. |
| CD-ROM |
200ms typ. |
SUSTAINED TRANSFER RATE
| BD-ROM |
26.97 MB/s (6x) max. |
| DVD-ROM |
11.08 MB/s (8x) |
| CD-ROM |
3.6 MB/s (24x) max. |
BURST TRANSFER RATE
| USB 2.0 interface |
Yes |
BUFFER SIZE
| BUFFER SIZE |
4 MB Buffer Under-run prevention function embedded |
HOST INTERFACE
| External (Host) |
USB 2.0 (480Mbits/s) |
| Internal (Drive) |
SATA |
COMPLIANCE
| RoHS |
Yes |
| Safety UL |
UL 60950-1 Second Edition |
| C-UL |
CSA C222 No. 60950-1 Second Edition |
| TUV |
EN 60950-1 / EN60825-1 |
| SEMKO |
EN 60950-1 / EN60825-1 |
| EMC |
CE Marking, C-Tick Mark, BSMI, VCCI, KC, CU, FCC Part 15 Class B Digital Device, ICES-003 Digital Apparatus |
| Laser Safety |
Class 1 laser product comply with DHHS rules 21 CFR Subchapter J Class 1 laser product to EN60825-q/IEC 60825-1 |
OPERATING SYSTEMS
| OPERATING SYSTEMS |
Windows 8.1, Windows 8, Windows 7, Windows Vista, Windows XP |
SYSTEM REQUIREMENTS
| CPU |
Intel@Pentium D 3.2GHz or Higher (with USB 2.0) |
| Recommended |
Intel Core 2 Duo P8600 2.4GHz or higher |
| HDD |
30GB or more of available space (60GB for Blu-ray Disc authoring) |
| RAM |
1GB or Higher |
| BD Movie Playback: CPU |
Following CPU recommended -Intel: E6400 or higher |
| Graphic Card: Card recommended with following GPU (Graphic Processing Unit) - nVidia |
GeForce 7600GT or higher / GeForce 8400 or higher Graphic Card Driver shall meet AACS compliance criteria. |
| Graphic Card: Card recommended with following GPU (Graphic Processing Unit) - ATI |
ATI Radeon HD 2400 or higher Graphic Card Driver shall meet AACS compliance criteria. |
DIMENSIONS (W x H x D)
| DIMENSIONS (W x H x D) |
5.7” x 0.6” x 6.1” (144 x 14.6 x 156mm) |
WEIGHT
| WEIGHT |
0.60 Ibs. (Max 270g) |
CONTENTS
| Slim Portable Blu-ray Writer |
Yes |
| Blu-ray Drive Install Disc for Windows |
Blu-ray Drive Install Disc for Windows, Power DVD, Power 2 Go, Power Producer, Media Espresso |
| USB 2.0 Cable |
Yes |
