WQ-990, 9U, 900mm Depth, Ultimate Quiet Server Cabinet
WQ WQ-990 Series is built with high-quality aluminum/steel structures with silence enhance foam inside the cabinet, which absorbs the noise from equipment and keeps it from going out. It is a cost-effective solution for people who need a peace working environment. Also, six 120mm cooling fans with low rpm on the rear door provide excellent air circulation for servers and other devices. Cabinets are completely lockable from the front/ rear doors and side panels to prevent unauthorized access.
WQ-9909U 900mm Depth Ultimate Quiet Server Cabinet
- Universal Fit Most of Rackmount Chassis and Equipment

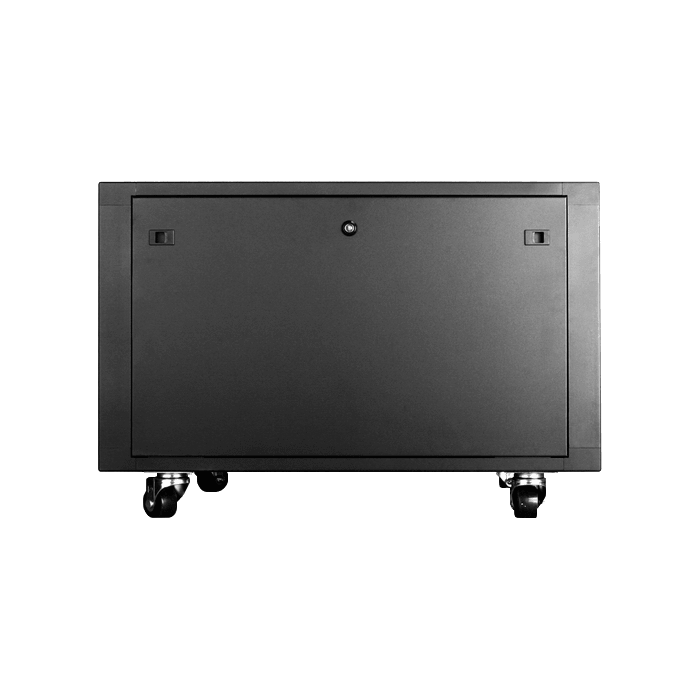

- Front, Rear, and Side Security Lock to Prevent Unauthorized Access to Equipment and Data

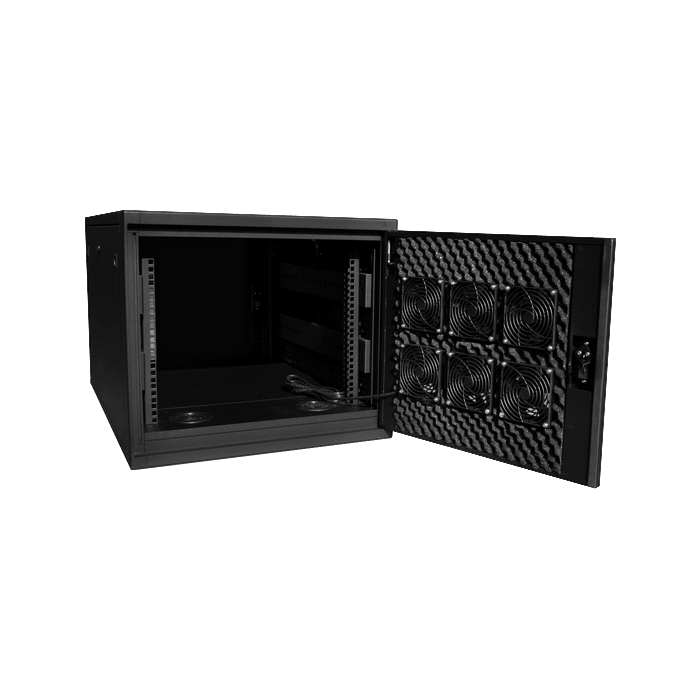

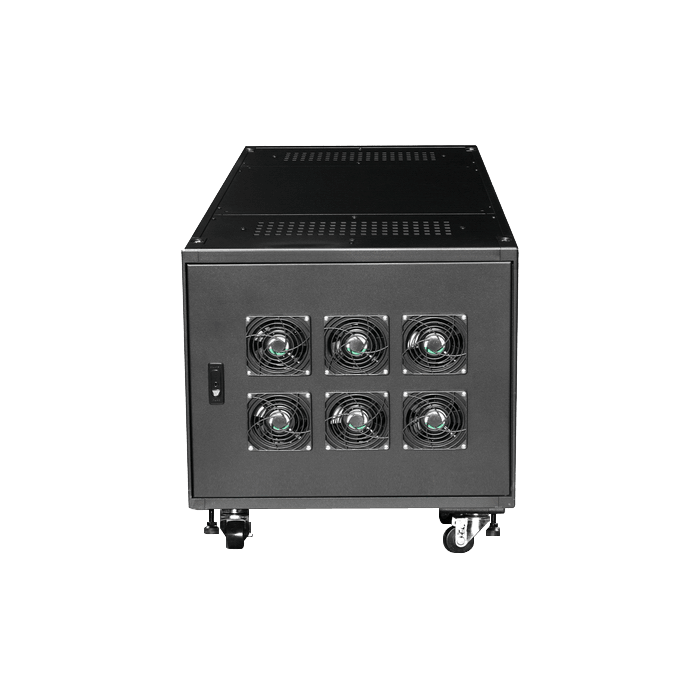

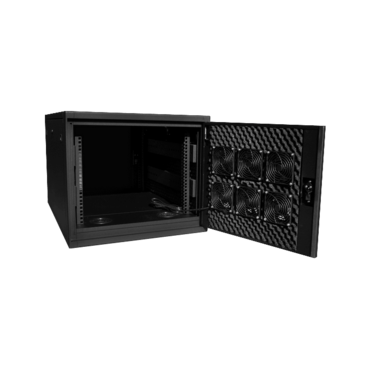

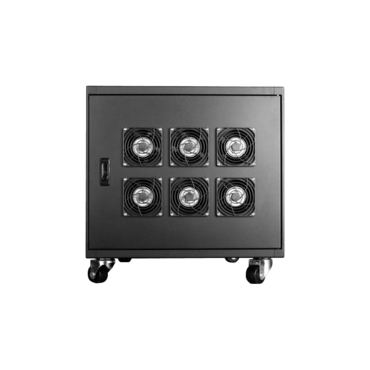

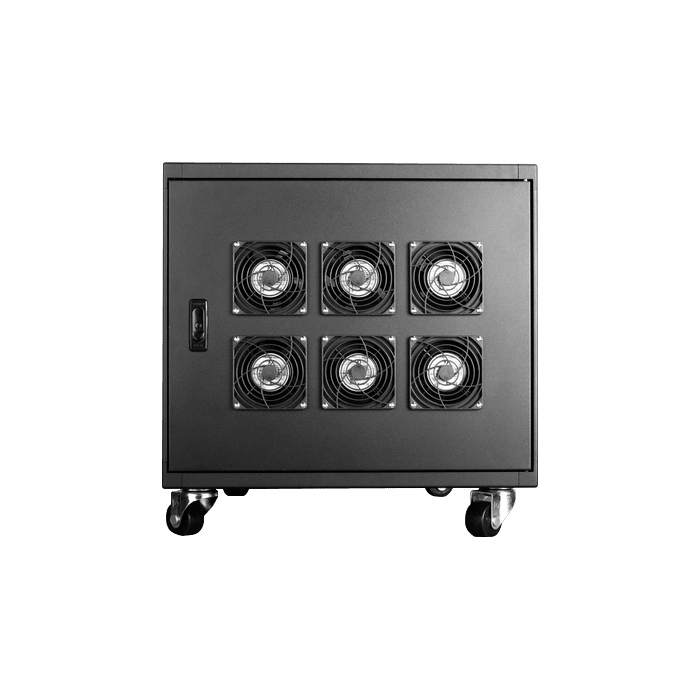

- 6 x 120mm AC Cooling Fans on Rear Door to Enhance Air Flow
- Sound-absorbing Foam inside Cabinet to Lower dBA
- Cable Entry Provided from Bottom
- Fully Adjustable Rails to Ensure the Best Fit of Rack-mount Chassis
- Locking Mechanism Design on Casters

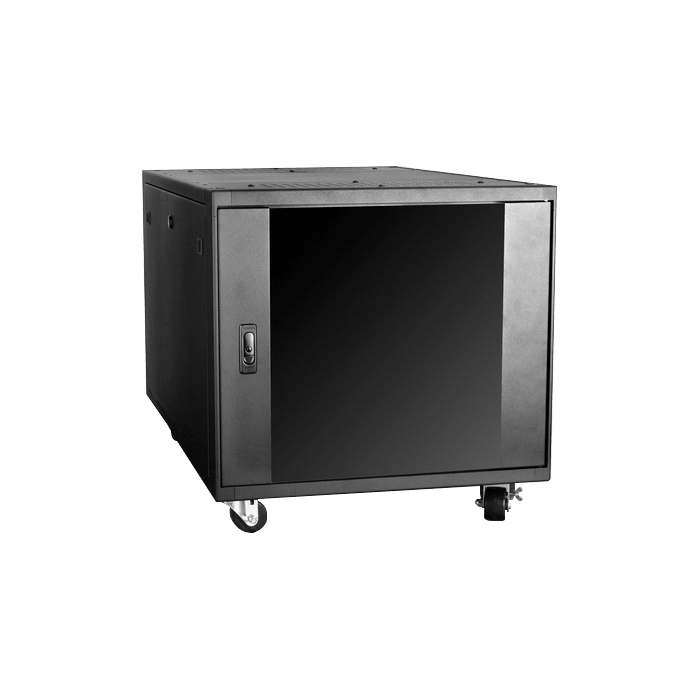

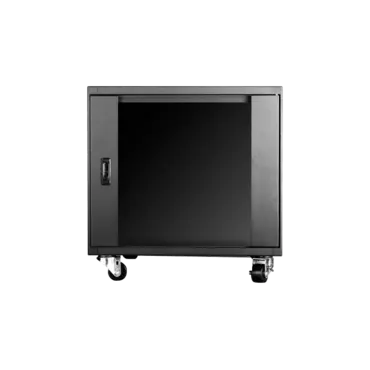

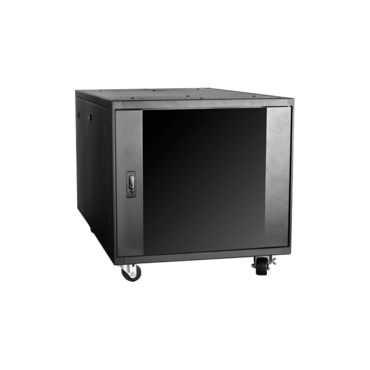

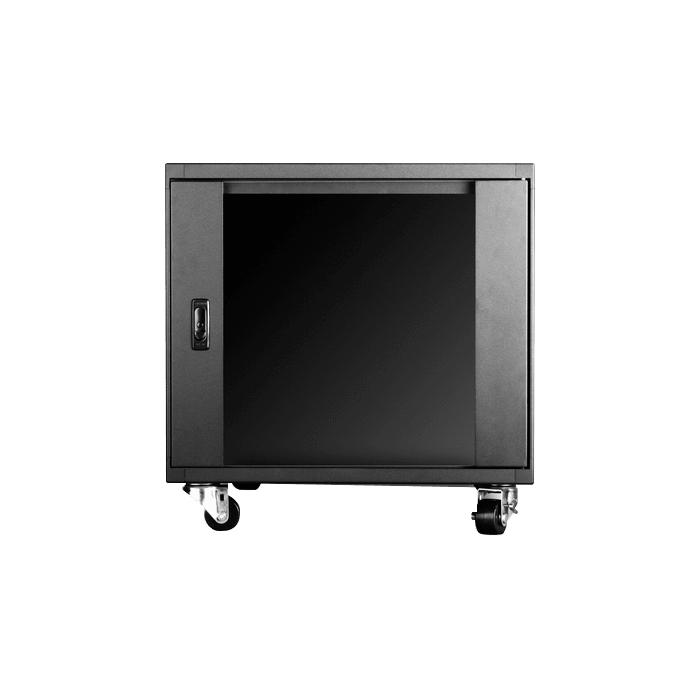

- Tempered Glass Door with Security Key Lock
- Comes with M5 Mounting Screws and Cage Nuts
Model Number | WQ-990 |
RoHS Compliance | Yes |
Form Factor | 9U |
Material | Frame:Aluminum
Base:SPCC Cold Rolled Steel t1.2 Mounting Rails:SPCC Cold Rolled Steel t2.0 Top Panel:SPCC Cold Rolled Steel t1.2 Side Panels:SPCC Cold Rolled Steel t1.2 Doors:SPCC Cold Rolled Steel t1.5 |
Color | Black (Special Color on Request) |
Loading Capacity | 2200 lbs |
Supported Chassis Depth | 30" and under |
Internal Dimensions | Height: 17"
Depth: 29.2" (mounting posts front to back) |
Cooling | 6x120mm 120V AC fans |
Dimensions (WxHxD) | 23.62" x 24.21" x 35.43"
600 mm x 615 mm x 900 mm |
Notes | - not compatible with DELL/ HP/ IBM servers with sliding rails equipped.
- HTS code: 8473.30.5100 (ECCN is not applicable). |
