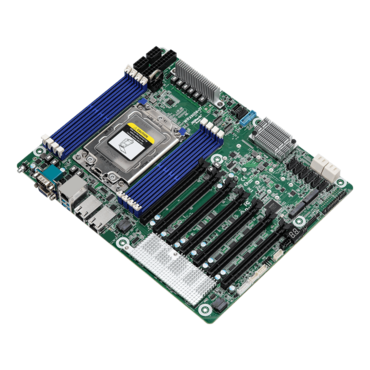

WRX80D8-2T, AMD WRX80, SP3, DDR4-3200 256GB 3DS RDIMM / 8, 2 x M.2, VGA, 10GbLAN / 2, ATX Retail
Quantity:
- SKU: 14735079
- Manufacturer: ASROCK
- MPN: WRX80D8-2T
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$618.63
| Physical Status | |
| Form Factor | ATX |
| Dimensions | 12" x 9.6" (305 mm x 244 mm) |
| Processor System | |
| CPU | Supports AMD Ryzen™ Threadripper™ PRO 3000WX |
| Socket | Single Socket SP3 (LGA4094) |
| Chipset | AMD WRX80 |
| System Memory | |
| Supported DIMM Quantity | 8 DIMM slots (1DPC) |
| Supported Type | Supports DDR4 288-pin ECC/non-ECC UDIMM, RDIMM, LRDIMM, RDIMM-3DS |
| Max. Capacity per DIMM |
ECC/non-ECC UDIMM, RDIMM, LRDIMM: up to 128GB RDIMM-3DS*: up to 256GB *RDIMM-3DS Max. memory capacity is to be validated |
| DIMM Frequency |
ECC/non-ECC UDIMM, RDIMM, LRDIMM, RDIMM-3DS*: max. 3200MHz *RDIMM-3DS Max. memory frequency is to be validated |
| Voltage | 1.2V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 |
SLOT7: PCIe4.0 x16 [CPU] SLOT6: PCIe4.0 x16 [CPU] SLOT5: PCIe4.0 x16 [CPU] SLOT4: PCIe4.0 x16 [CPU] SLOT3: PCIe4.0 x16 [CPU] SLOT2: PCIe4.0 x16 [CPU] SLOT1: PCIe4.0 x16 [CPU] |
| Other PCIe Expansion Connectors | |
| M.2 slot | 2 M-key (PCIe4.0 x4), supports 22110/2280/2260/2242/2230 form factor [FCH] |
| OCuLink | 2 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [FCH] |
| SATA/SAS Storage | |
| PCH Built-in Storage |
AMD WRX80 (12 SATA 6Gb/s): 2 OCuLink, 4 SATA 7-pin |
| Ethernet | |
| Additional GbE Controller | Intel® X550-AT2: 2 RJ45 (10GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2500 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2500 |
| VRAM | DDR4 512MB |

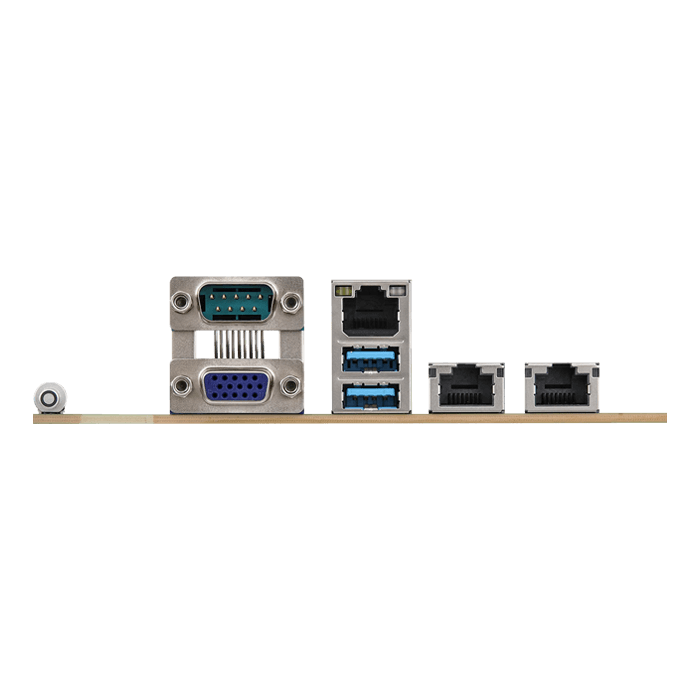

| Rear I/O | |
| UID Button/LED | 1 |
| VGA Port | 1 DB15 |
| Serial Port | 1 DB9 |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (10GbE) |
| Dedicate LAN | 1 dedicated IPMI |
| Internal Connector/Headers | |
| Auxiliary Panel Header | 1 (18-pin): Caseopen,sys_fault_LED, 2FLANLED, BMC_SMB_CLK/DATA/ALERT, Locator LED, Locator BTN |
| System Panel | 1 (9-pin): RSTBTN, PWRBTN, HDDLED, PWRLED |
| Speaker Header | 1 (4-pin) |
| Thunderbolt 3 header | 1 |
| Fan Header | 7 (6-pin) |
| Thermal Sensor Header | 2 |
| TPM Header | 1 (13-pin, SPI), 1 (17-pin, LPC) |
| HSBP | 1 |
| SMBus header | 1 |
| PMB header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| USB 3.2 (Gen2) Header | 1 (Type-C, 1 USB3.2 Gen2) |
| NMI Header | 1 |
| Power Connector | 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V) |
| LED Indicators | |
| Standby PWR LED 5vsb | 1 |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 7 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI 256 Mb SPI Flash ROM |
| BIOS Features | Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU, DRAM, MB, Card Side, Chipset Temperature Sensing |
| Fan |
CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | 3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, 1.05V_PROM_S5, 2.5V_PROM, 1.05V_PROM_RUN, BAT, 3V, 5V, 12V |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
