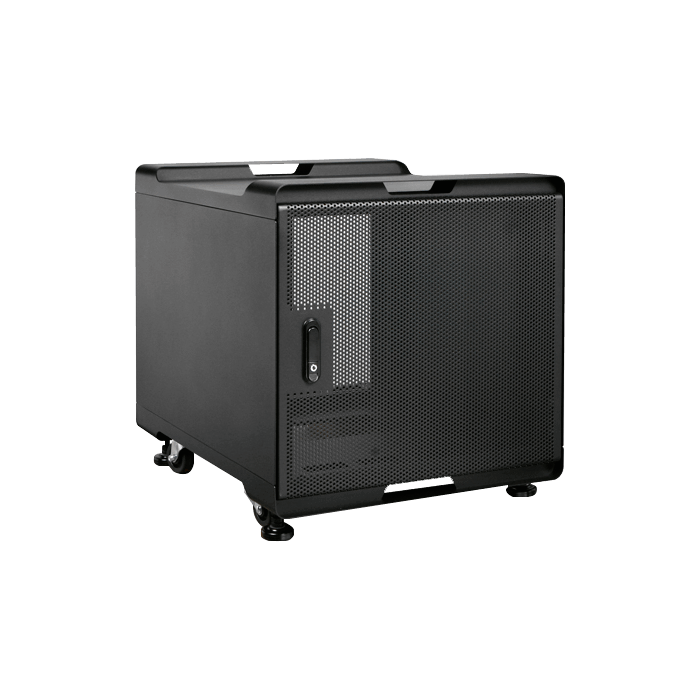

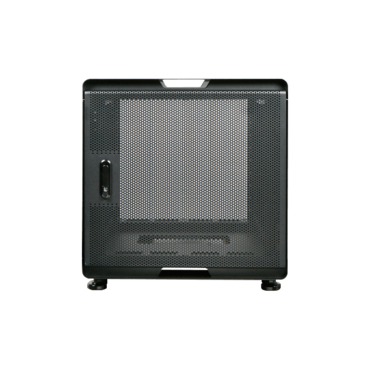

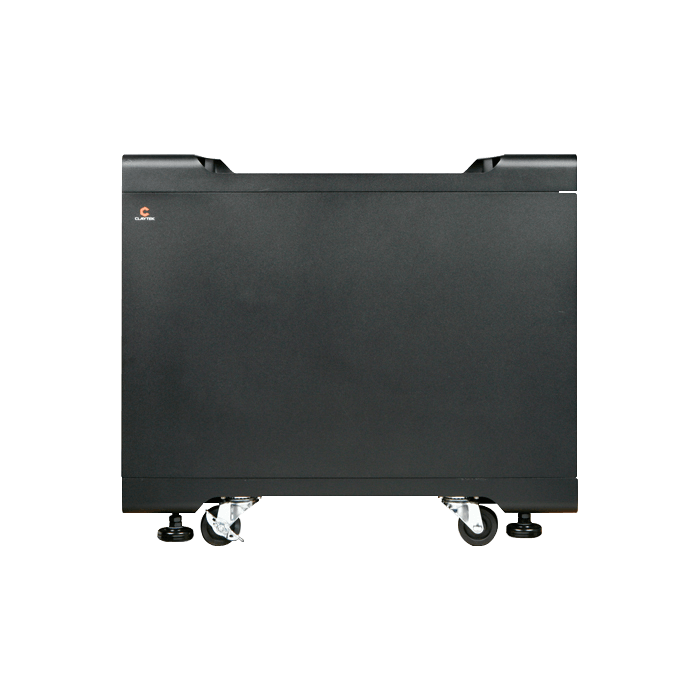

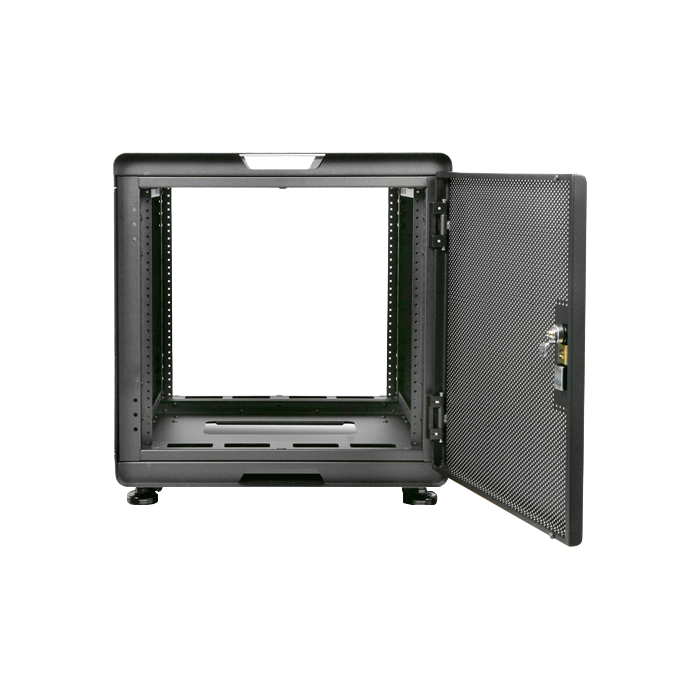

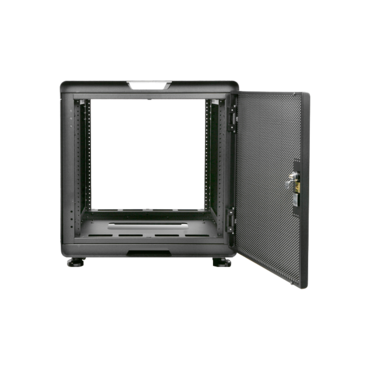

WS-1070B, 10U, 700mm Depth, Threaded Rails Audio Video Rackmount Cabinet

SKU: 6913764

Manufacturer: ISTARUSA

MPN: WS-1070B

Availability: Unknown


Price: $838.35
or as low as $27/month
Quantity:

WS-1070B 10U 700mm Depth Threaded Rails Audio Video Rackmount Cabinet

  • Universal Fit Most of Rackmount Chassis and Equipment
  • Front Security Locks to Prevent Unauthorized Access to Equipment and Data
  • Horizontal Adjustable Mounting Rails to Ensure the Best Fit of Rack-mount Chassis
  • Vented Door Provides Maximum Air Flow
  • Removable Side Panels for Easy Access
  • Tapped Mounting Holes (M5 size) for Audio/Video Equipment
  • Locking Mechanism Design on Casters
  • Equipped with Casters and Feet
  • Comes with M5 Mounting Screws
Model Number WS-1070B
RoHS Compliance Yes
Form Factor 10U
Material Main Frame:SPCC t1.6
Mounting Rails:SPCC t2.0
Top and Bottom frame:SPCC T1.6 to 2.0
Side Panel:Aluminum t2.0
Vented Door:SPCC t1.2
Color Black (Special Color on Request)
Loading Capacity 660 lbs
Supported Chassis Depth 22" and under
Internal Dimensions Depth: 22.5" max
Dimensions (WxHxD) 22.40" x 24.30" x 27.60"
569 mm x 617 mm x 701 mm
Notes - mounting rails need to be adjusted inward in order to close front door if chassis handles are more than 0.8". Internal maximum depth will change from 22.5" to 19.9".
- rear door is optional and can be purchased separately. WS-DOOR-10U.
- HTS code: 8473.30.5100 (ECCN is not applicable).
