WS-650B, 6U, 500mm Depth, Threaded Rails Audio Video Rackmount Cabinet

  • SKU: 7222172
  • Manufacturer: ISTARUSA
  • MPN: WS-650B
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At

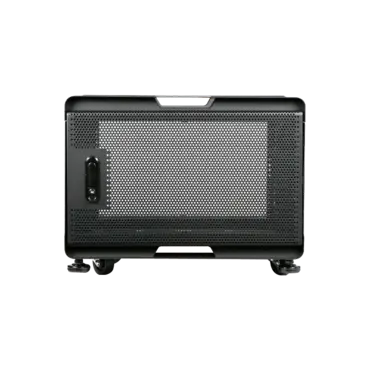

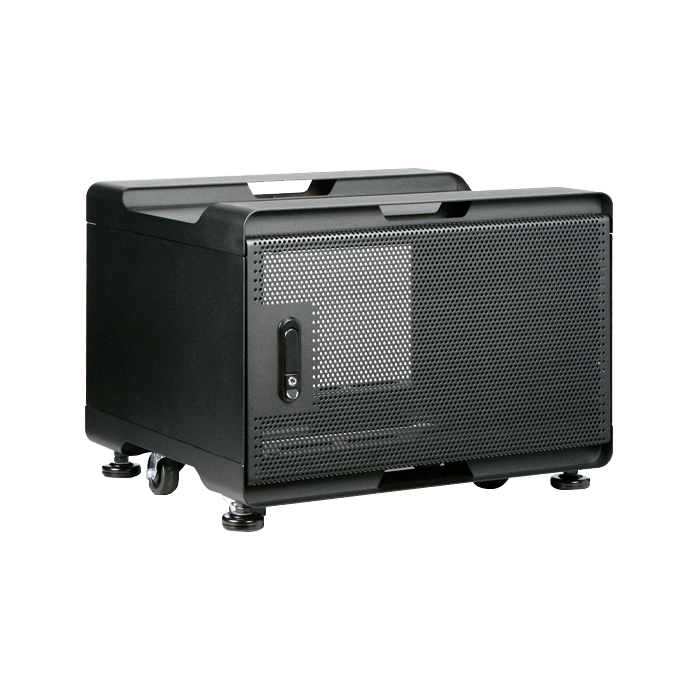

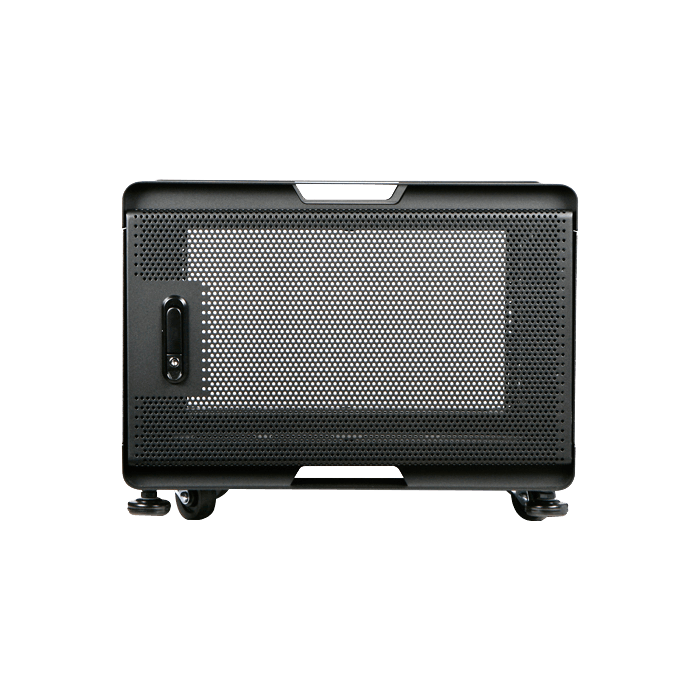

WS-650B 6U 500mm Depth Threaded Rails Audio Video Rackmount Cabinet

  • Universal Fit Most of Rackmount Chassis and Equipment
  • Front Security Locks to Prevent Unauthorized Access to Equipment and Data
  • Horizontal Adjustable Mounting Rails to Ensure the Best Fit of Rack-mount Chassis
  • Vented Door Provides Maximum Air Flow
  • Removable Side Panels for Easy Access
  • Tapped Mounting Holes (M5 size) for Audio/Video Equipment
  • Equipped with Casters and Feet
  • Comes with M5 Mounting Screws
Model Number WS-650B
RoHS Compliance Yes
Form factor 6 U
Standard Drive Bays None
Material of Main Chassis Main Frame:SPCC t1.6::Mounting Rails:SPCC t2.0::Top and Bottom frame:SPCC T1.6 to 2.0::Side Panel:Aluminum t2.0::Vented Door:SPCC t1.2
Supported Chassis Depth 14.5" and under
Color of Main Chassis Black (Special Color on Request)
Dimensions (WxHxD) 22.40" x 17.10" x 19.70"
569.0 mm x 434.3 mm x 500.4 mm
Notes - mounting rails need to be adjusted inward in order to close front door if chassis handles are more than 0.8". Internal maximum depth will change from 14.7" to 12".
- rear door is optional and can be purchased separately. WS-DOOR-6U.
- HTS code: 8473.30.5100 (ECCN is not applicable).
