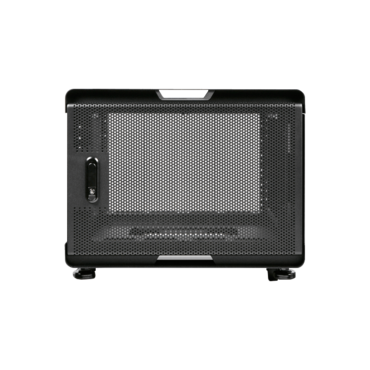

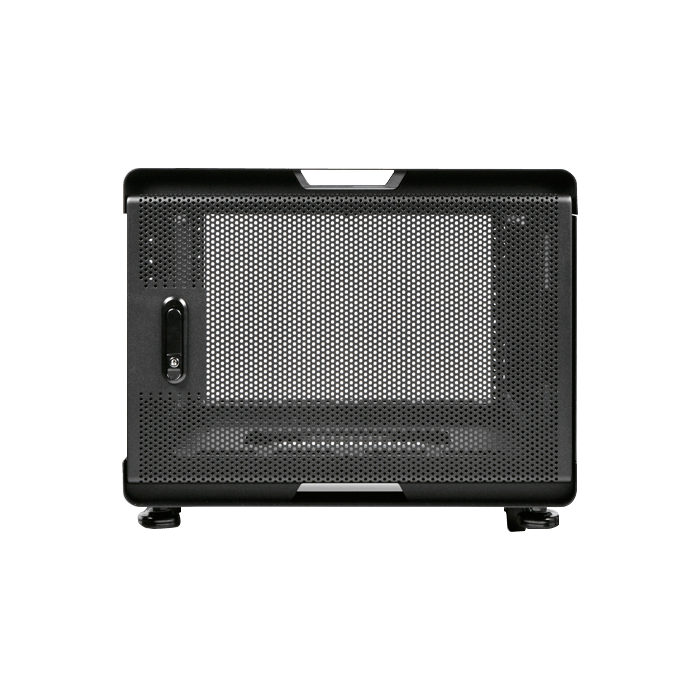

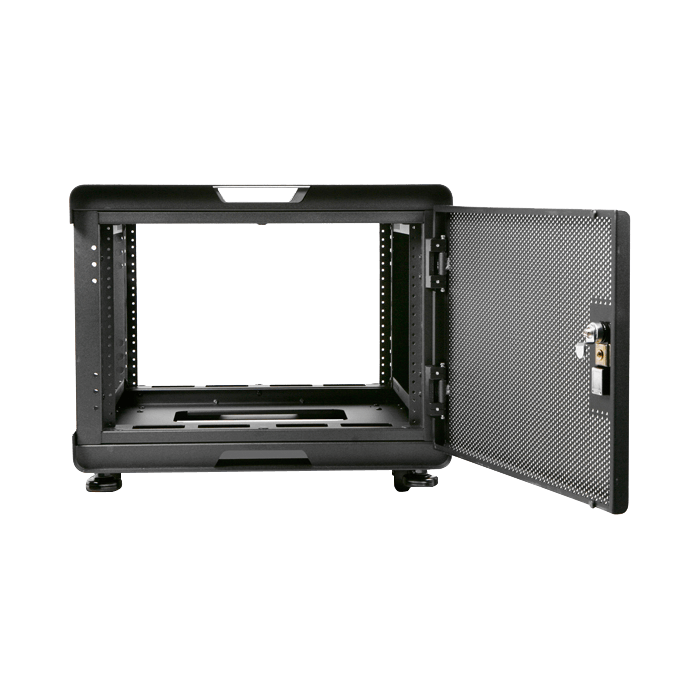

WS-770B, 7U, 700mm Depth, Threaded Rails Audio Video Rackmount Cabinet
Quantity:
- SKU: 6913796
- Manufacturer: ISTARUSA
- MPN: WS-770B
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$763.60
WS-770B 7U 700mm Depth Threaded Rails Audio Video Rackmount Cabinet
- Universal Fit Most of Rackmount Chassis and Equipment
- Front Security Locks to Prevent Unauthorized Access to Equipment and Data
- Horizontal Adjustable Mounting Rails to Ensure the Best Fit of Rack-mount Chassis
- Vented Door Provides Maximum Air Flow
- Removable Side Panels for Easy Access
- Tapped Mounting Holes (M5 size) for Audio/Video Equipment
- Locking Mechanism Design on Casters
- Equipped with Casters and Feet
- Comes with M5 Mounting Screws
| Model Number | WS-770B |
| RoHS Compliance | Yes |
| Form factor | 7 U |
| Standard Drive Bays | None |
| Material of Main Chassis | Main Frame:SPCC t1.6::Mounting Rails:SPCC t2.0::Top and Bottom frame:SPCC T1.6 to 2.0::Side Panel:Aluminum t2.0::Vented Door:SPCC t1.2 |
| Supported Chassis Depth | 22" and under |
| Color of Main Chassis | Black (Special Color on Request) |
| Dimensions (WxHxD) | 22.40" x 19.10" x 27.60"
569.0 mm x 485.1 mm x 701.0 mm |
| Notes | - mounting rails need to be adjusted inward in order to close front door if chassis handles are more than 0.8". Internal maximum depth will change from 22.5" to 19.9".
- rear door is optional and can be purchased separately. WS-DOOR-7U - HTS code: 8473.30.5100 (ECCN is not applicable). |
