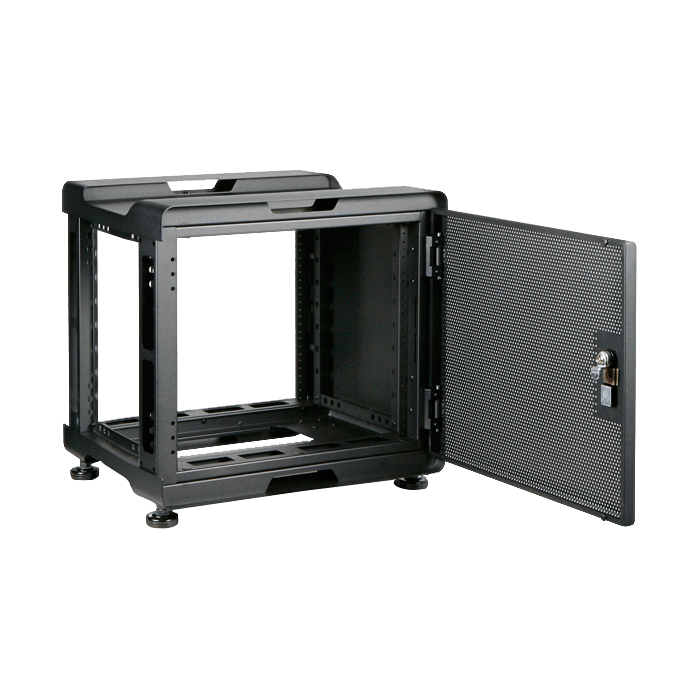

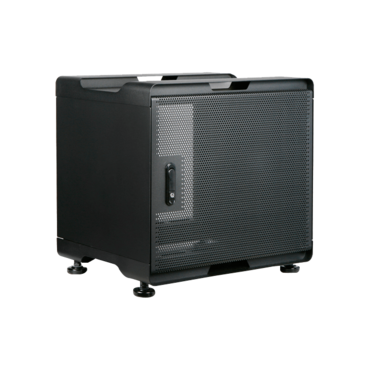

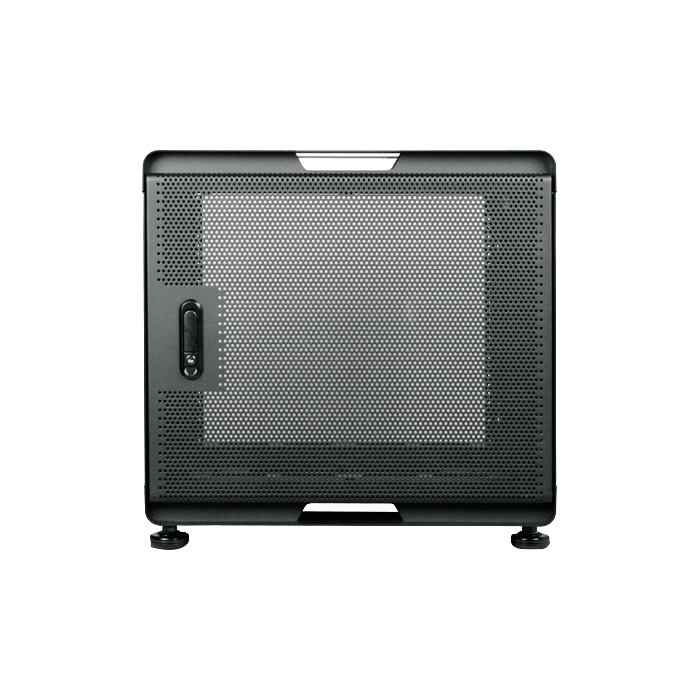

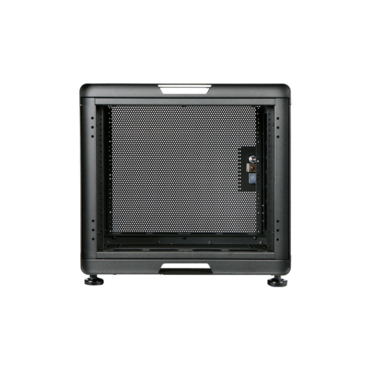

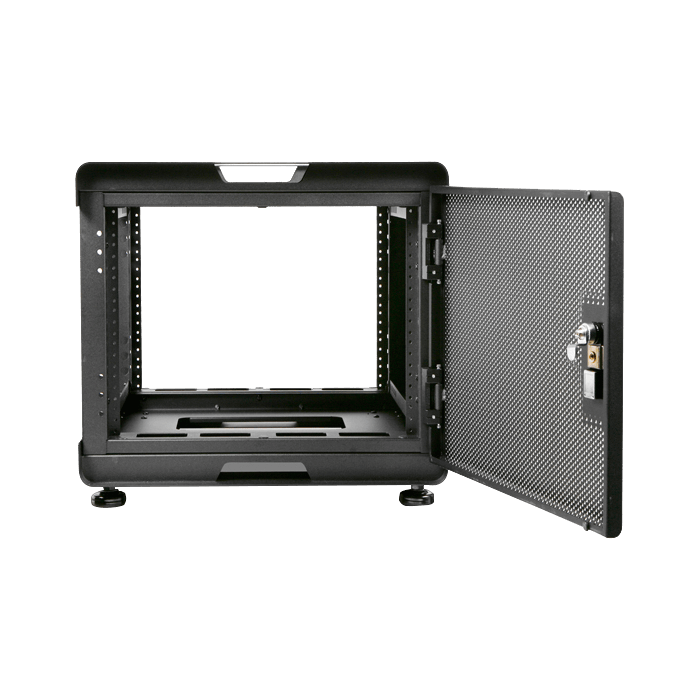

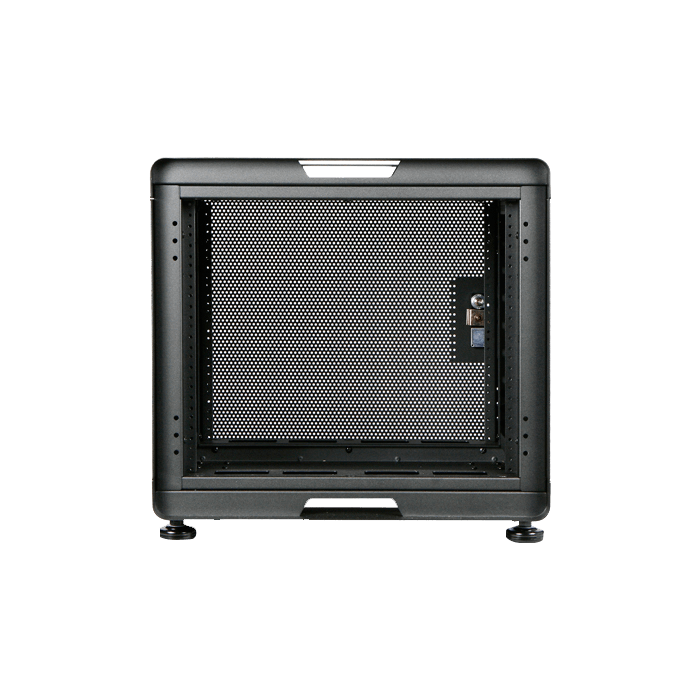

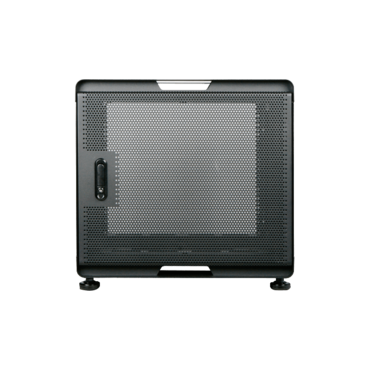

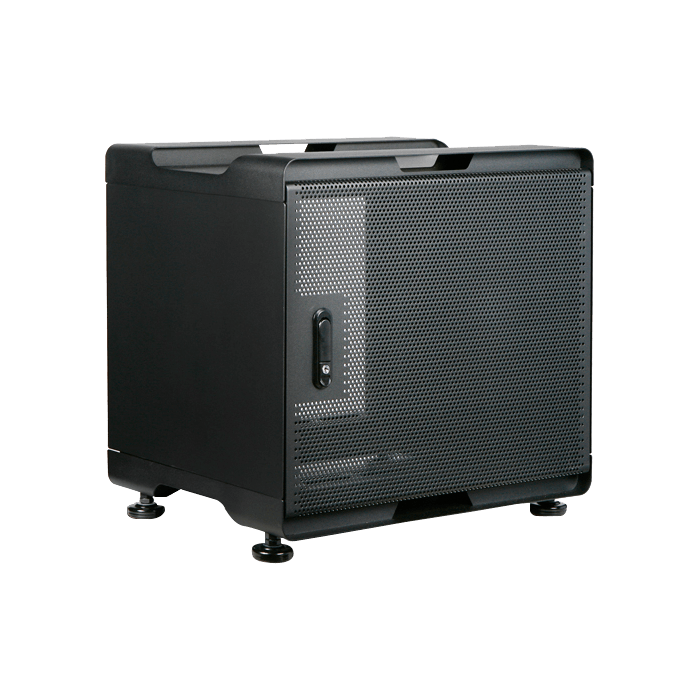

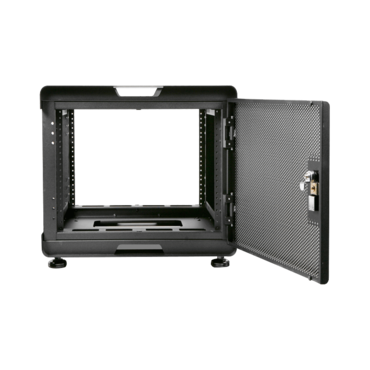

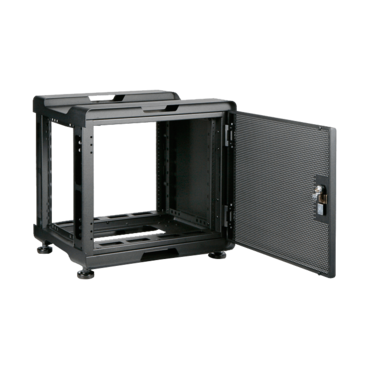

WS-938B, 9U, 380mm Depth, Threaded Rails Audio Video Rackmount Cabinet

SKU: 7958884

Manufacturer: ISTARUSA

MPN: WS-938B

Availability: Unknown


Price: $737.15
or as low as $24/month
Quantity:

WS Cabinet series, the newest innovation in audio/video data storage. it is optimized for office, small/medium business (SMB), or professional studio environments (movie animation, music production, etc.). The 4U,6U,7U,9U,10U,14U,20U space supports any combination of standard rackmount equipment in a compact form factor offering ease of maintenance and flexibility for different IT applications. The sleek and compact design makes it suitable for customers looking for IT solutions in a dynamic office environment. WS series cabinet is built with high-quality steel structures with vented doors. Also, it is completely lockable from front and *rear doors to prevent unauthorized access. This stylish and secure 19" rack-mount cabinet is designed to store you content safer, easier, and sleeker than ever before. * rear door sold separately.

WS-938B 9U 380mm Depth Threaded Rails Audio Video Rackmount Cabinet

  • Universal Fit Most of Rackmount Equipment
  • Front Security Locks to Prevent Unauthorized Access to Equipment and Data
  • Horizontal Adjustable Mounting Rails to Ensure the Best Fit of Rack-mount Chassis
  • Vented Door Provides Maximum Air Flow

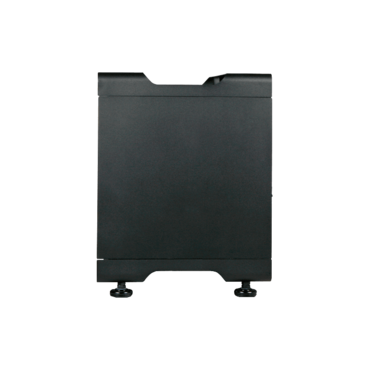

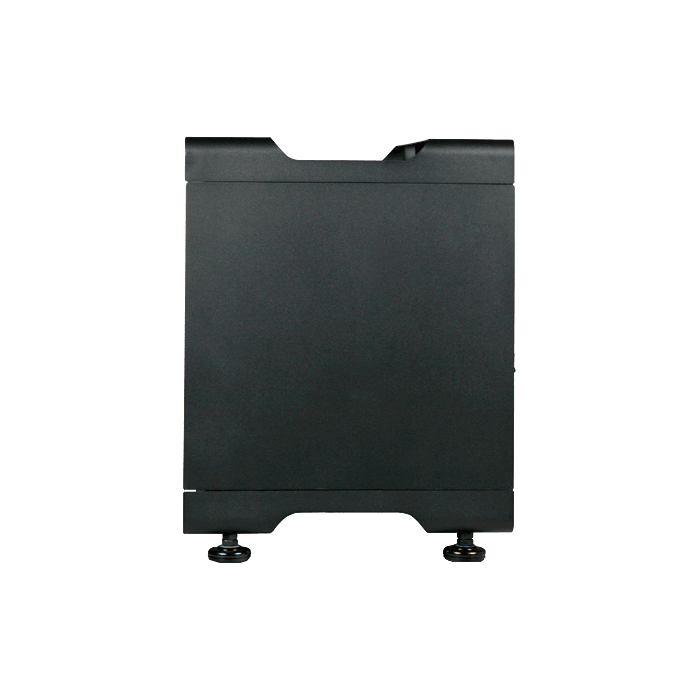

  • Removable Side Panels for Easy Access
  • Tapped Mounting Holes (M5 size) for Audio/Video Equipment
  • Equipped with Feet
  • Comes with M5 Mounting Screws
Model Number WS-938B
RoHS Compliance Yes
Form Factor 9U
Material Main Frame:SPCC t1.6
Mounting Rails:SPCC t2.0
Top and Bottom frame:SPCC T1.6 to 2.0
Side Panel:Aluminum t2.0
Vented Door:SPCC t1.2
Color Black (Special Color on Request)
Loading Capacity 660 lbs
Supported Chassis Depth 10" and under
Internal Dimensions Depth: 10" Max
Dimensions (WxHxD) 22.50" x 22.20" x 15.00"
572 mm x 564 mm x 381 mm
Notes - mounting rails need to be adjusted inward in order to close front door if chassis handles are more than 0.8". Internal maximum depth will change from 10" to 7.3".
- rear door is optional and can be purchased separately. WS-DOOR-9U.
- HTS code: 8473.30.5100 (ECCN is not applicable).
