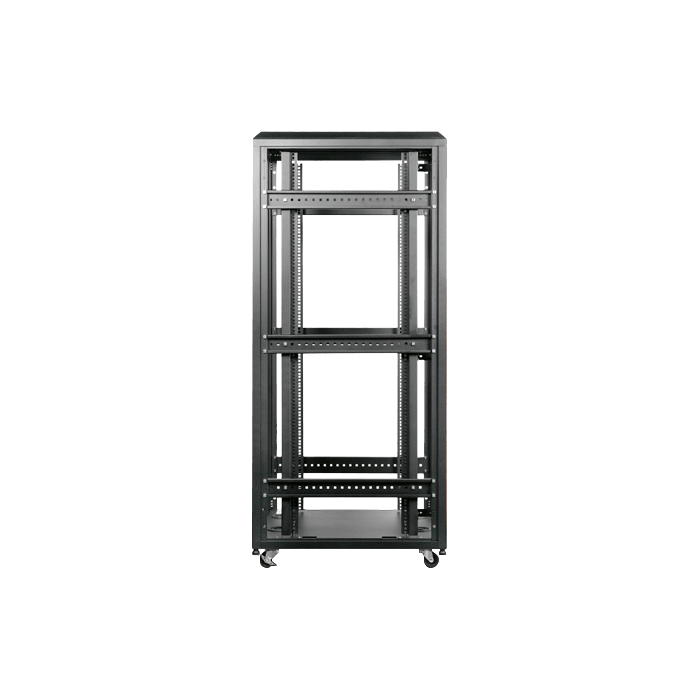

WX Series WX-368 4-Post open frame rack is built with high-quality aluminum/steel structures. This stylish 19" rack-mount cabinet protects your investment in computer equipment against environmental elements heat. WX series comes with castors and leveling feet help moving and setting equipment easily to any location. It is a flexible and cost-effective solution for rack-mount devices.
WX-368 36U 4-Post 800mm Open Frame Rack
- Universal Fit Most of Rackmount Chassis and Equipment
- Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best
- Fit of Rack-mount Chassis
- Optional Side Panels
- Optional Front/Rear Doors
- Locking Mechanism Design on Casters
- Comes with M5 Mounting Screws and Cage Nuts
|Standard Drive Bays
|Material of Main Chassis
|Horizontal Rails:SPCC t:2.0mm::Vertical Rails:SPCC t:2.0mm::Top Panel:SPCC t:1.2mm
|Supported Chassis Depth
|29" and under
|Color of Main Chassis
|23.50" x 71.75" x 31.50"
596.9 mm x 1822.4 mm x 800.1 mm
|- for HP/ DELL/ IBM servers equipped with sliding rails, please contact sales person for availability of model number WX-368-EX.
- HTS code: 8473.30.5100 (ECCN is not applicable).
- make sure sliding rails minimum mounting depth is within the cabinet's internal maximum mounting depth 26.5".
