WX-428, 42U, 4-Post 800mm, Open Frame Rack

  • SKU: 2138763
  • Manufacturer: ISTARUSA
  • MPN: WX-428
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
WX-428, 42U, 4-Post 800mm, Open Frame Rack

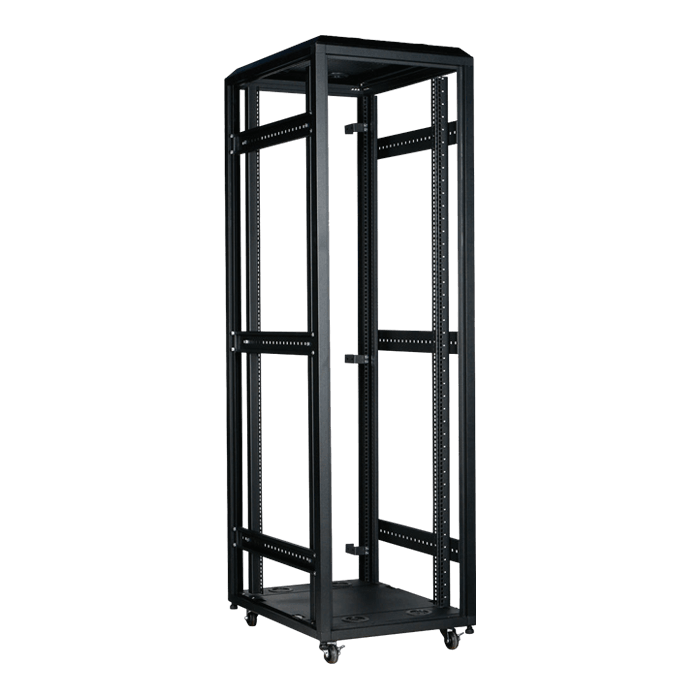

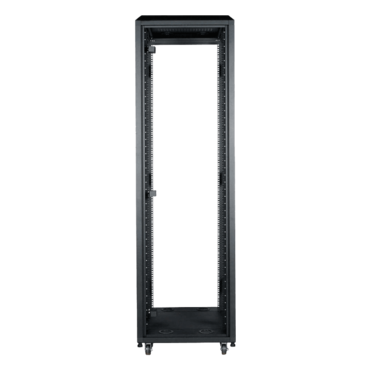

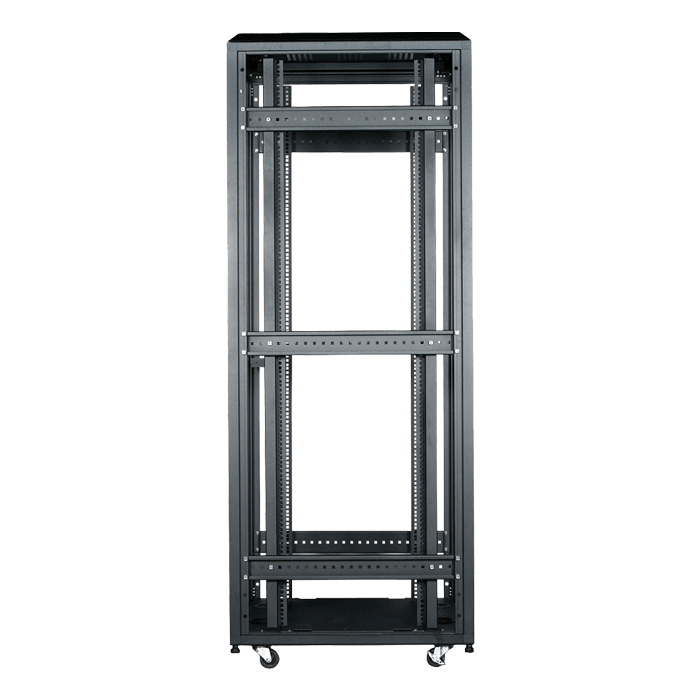

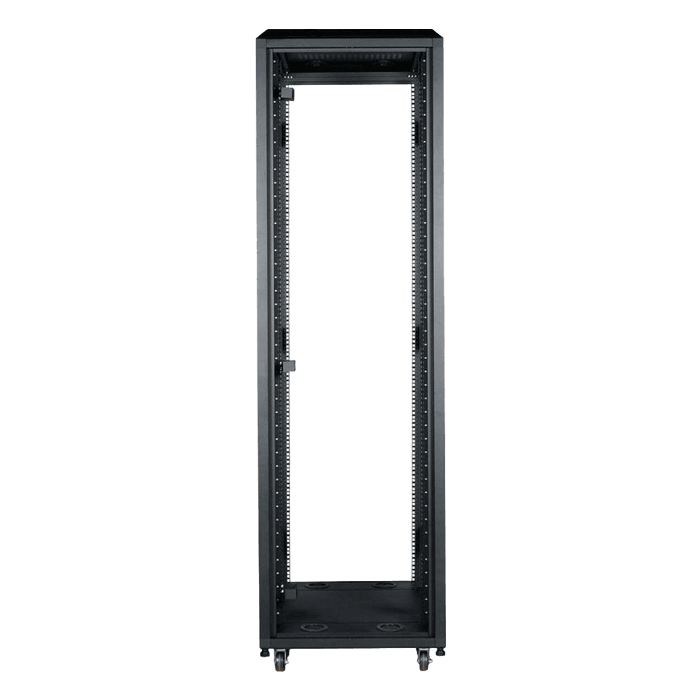

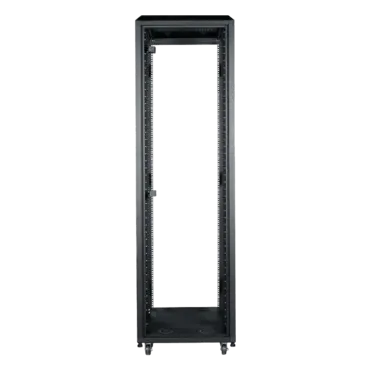

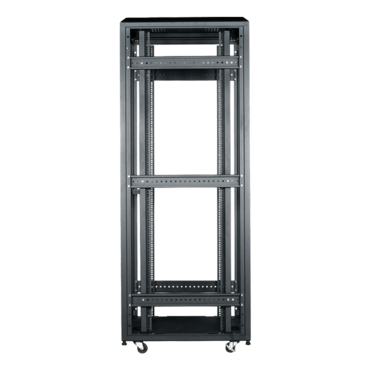

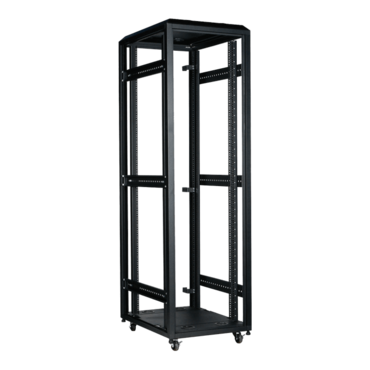

WX (WX-428) Series 4-Post open frame rack is built with high-quality aluminum/steel structures. This stylish 19" rack-mount cabinet protects your investment in computer equipment against environmental elements heat. WX series comes with castors and leveling feet help moving and setting equipment easily to any location. It is a flexible and cost-effective solution for rack-mount devices.

WX-428 42U 4-Post 800mm Open Frame Rack

  • Universal Fit Most of Rackmount Chassis and Equipment
  • Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best
  • Fit of Rack-mount Chassis
  • Optional Side Panels
  • Optional Front/Rear Doors
  • Locking Mechanism Design on Casters
  • Comes with M5 Mounting Screws and Cage Nuts
Model Number WX-428
RoHS Compliance Yes
Form Factor 42U
Material Horizontal Rails:SPCC t:2.0mm
Vertical Rails:SPCC t:2.0mm
Top Panel:SPCC t:1.2mm
Color Black (RAL9011)
Loading Capacity 2200 lbs
Supported Chassis Depth 29" and under
Internal Dimensions Height: 75"
Depth: outer post-to-post 26.5" max
Dimensions (WxHxD) 23.50" x 82.50" x 31.50"
597 mm x 2,096 mm x 800 mm
Notes - for HP/ DELL/ IBM servers equipped with sliding rails, please contact sales person for availability of model number WX-428-EX.
- HTS code: 8473.30.5100 (ECCN is not applicable).
- make sure sliding rails minimum mounting depth is within the cabinet's internal maximum mounting depth 26.5".
