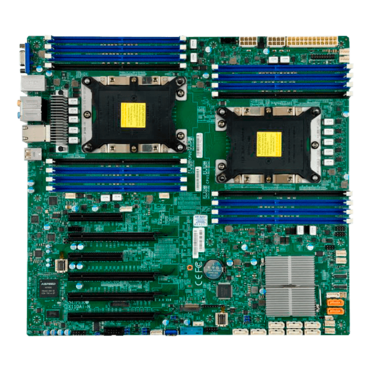

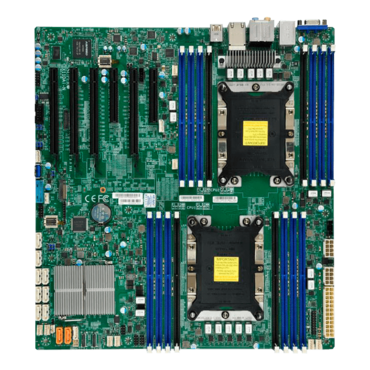

X11DAi-N, Intel C621, LGA 3647 / 2, DDR4-2666 2TB 3DS LRDIMM / 16, VGA, M.2, SuperDOM, GbLAN / 2, E-ATX OEM

Quantity:
  • SKU: 11436563
  • Manufacturer: SUPERMICRO
  • MPN: MBD-X11DAI-N-B
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$679.53
Quantity:
Product SKUs
MBD-X11DAi-N
  • X11DAi-N
Physical Stats
Form Factor
  • E-ATX
Dimensions
  • 12" x 13" (30.48cm x 33.02cm)
Processor/Cache
CPU
  • Intel® Xeon® Scalable Processors.
  • Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
System Memory
Memory Capacity
  • Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
Memory Type
  • 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
  • RDIMM: 64GB
  • LRDIMM: 64GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C621
SATA
  • Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Network Controllers
  • Dual LAN with GbE from C621
Audio
  • 7.1 HD Audio
Graphics
  • Aspeed AST2500 BMC
Input / Output
LAN
  • RJ45 Shared IPMI LAN port
USB
  • 4 USB 3.0 ports (4 rear via header(s)),
  • 2 USB 3.1 ports (2 rear)
Video Output
  • 1 VGA port(s)
Serial Port / Header
  • 1 COM Port (1 header(s))
TPM
  • 1 TPM Header
Others
  • Thunderbolt header for Thunderbolt 3.0 AOC support
Expansion Slots
PCI-E
  • 4 PCI-E 3.0 x16,
  • 2 PCI-E 3.0 x8
M.2
  • Interface: PCIe 3.0 x4
  • Form Factor: M-Key 2260, 2280, 22110
System BIOS
BIOS Type
  • UEFI 128Mb
Management
Software
  • Intel® Node Manager, IPMI2.0, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby
FAN
  • 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring , Fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors
Temperature
  • N/A
LED
  • N/A
Other Features
  • Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS
Parts List (Bulk Package)
Name Part Number Qty Description
X11DAi-N MBD-X11DAi-N-B 1 Motherboard
IO Cable CBL-0044L 2 SATA CABLE 61CM FLAT S-S PBF
I/O Shield MCP-260-00115-0N 1 STD size I/O Shield for X11DAi-N with EMI Gasket and front metal,RoHS/REACH
