| Product SKUs |

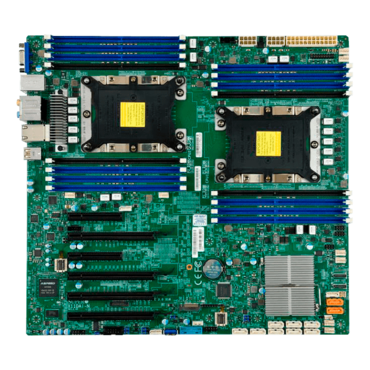

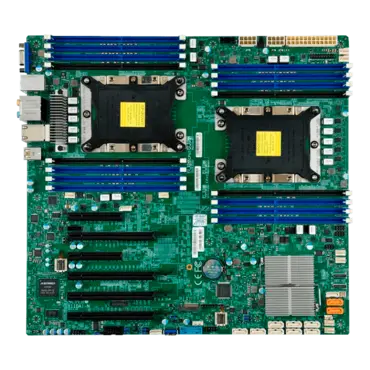

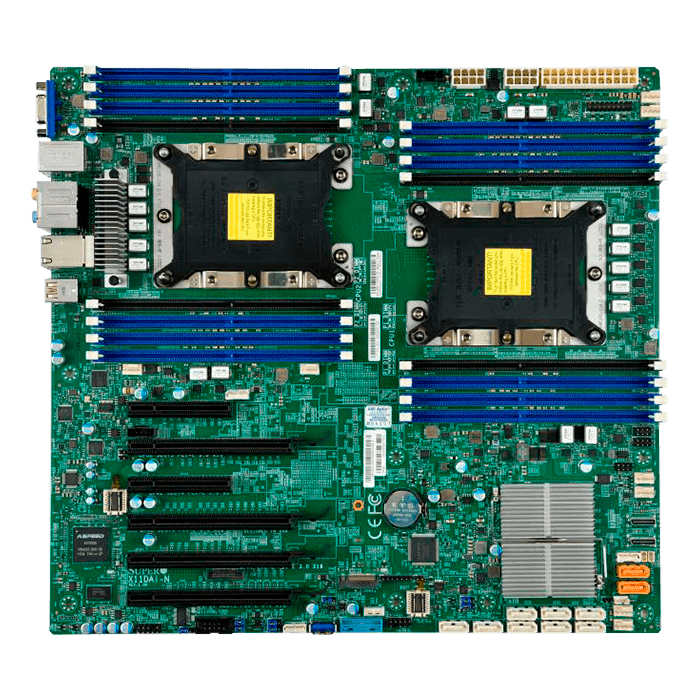

| MBD-X11DAi-N |
|
| Physical Stats |
| Form Factor |
|
| Dimensions |
- 12" x 13" (30.48cm x 33.02cm)
|
| Processor/Cache |
| CPU |
- Intel® Xeon® Scalable Processors.
- Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
|
| System Memory |
| Memory Capacity |
- Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
|
| Memory Type |
- 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
|
| DIMM Sizes |
- RDIMM: 64GB
- LRDIMM: 64GB
- 3DS LRDIMM: 128GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| On-Board Devices |
| Chipset |
|
| SATA |
- Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
| IPMI |
|
| Network Controllers |
- Dual LAN with GbE from C621
|
| Audio |
|
| Graphics |
|
| Input / Output |
| LAN |
- RJ45 Shared IPMI LAN port
|
| USB |
- 4 USB 3.0 ports (4 rear via header(s)),
- 2 USB 3.1 ports (2 rear)
|
| Video Output |
|
| Serial Port / Header |
|
| TPM |
|
| Others |
- Thunderbolt header for Thunderbolt 3.0 AOC support
|
| Expansion Slots |
| PCI-E |
- 4 PCI-E 3.0 x16,
- 2 PCI-E 3.0 x8
|
| M.2 |
- Interface: PCIe 3.0 x4
- Form Factor: M-Key 2260, 2280, 22110
|
| System BIOS |
| BIOS Type |
|
| Management |
| Software |
- Intel® Node Manager, IPMI2.0, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
|
| PC Health Monitoring |
| Voltage |
- +1.8V, +12V, +3.3V, +5V, +5V standby
|
| FAN |
- 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring , Fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
|
| LED |
|
| Other Features |
- Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS
|
