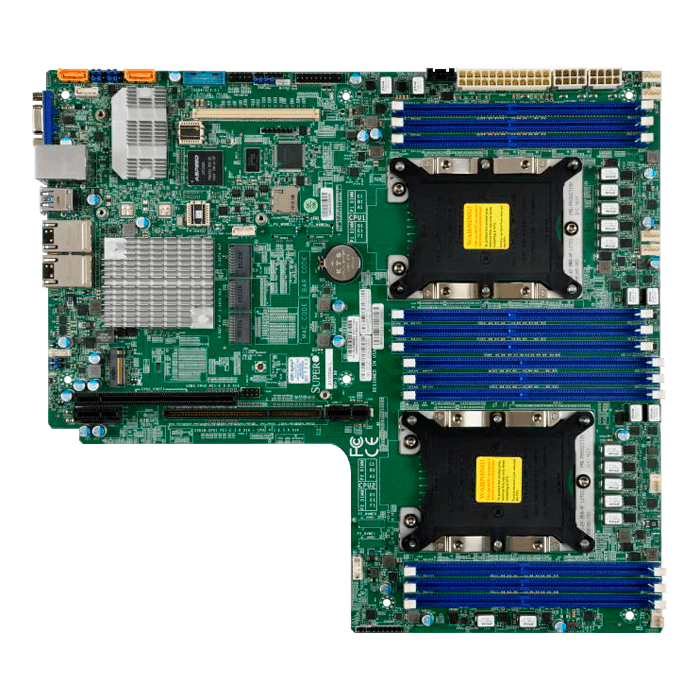

X11DDW-L, Intel® C621, LGA 3647 / 2, DDR4-2933 3TB 3DS ECC LRDIMM / 12, VGA, GbLAN / 2, Proprietary WIO OEM

Quantity:
  • SKU: 11480180
  • Manufacturer: SUPERMICRO
  • MPN: MBD-X11DDW-L-B
  • Availability: LOW STOCK
Starting At
$618.04
Quantity:
Product SKUs
MBD-X11DDW-L
  • X11DDW-L
Physical Stats
Form Factor
  • Proprietary WIO
Dimensions
  • 12.3" x 13.4" (31.24cm x 34.04cm)
Processor/Cache
CPU
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
  • Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
Note
  • BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
System Memory
Memory Capacity
  • Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz, in 12 DIMM slots;
  • Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
  • RDIMM: 64GB, 128GB
  • LRDIMM: 64GB, 128GB
  • 3DS LRDIMM: 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C621
SATA
  • Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Network Controllers
  • Dual LAN with GbE
    from C621
Graphics
  • Aspeed AST2500 BMC
Input / Output
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 3.0 ports (4 rear + 2 headers)
Video Output
  • 1 VGA port
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x32 Left Riser Slot,
  • 1 PCI-E 3.0 x16 Right Riser Slot,
  • 1 PCI-E 3.0 x16 for Add-On-Module (AOM)
    (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
M.2
  • M.2 Interface: PCI-E 3.0 x4
  • Form Factor: 2242, 2260, 2280, 22110
  • Key: M-Key
System BIOS
BIOS Type
  • UEFI 256Mb
Management
Software
  • Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, Memory Voltages, Monitors CPU voltages
FAN
  • 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, PWM fan speed control, Status monitoring for speed control
Temperature
  • CPU thermal trip support, Monitoring for CPU and chassis environment
LED
  • CPU / System Overheat LED, UID/Remote UID, BMC/IPMI Heartbeat LED, Power LED
Other Features
  • Chassis intrusion detection, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Node Manager Support, RoHS, UID
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
