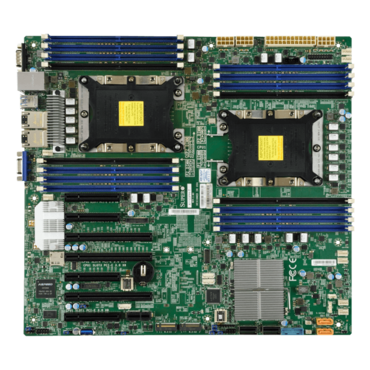

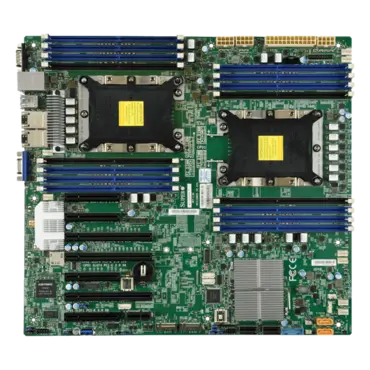

X11DPH-T, Intel C624, LGA 3647, DDR4-2666 2TB 3DS LRDIMM / 16, VGA, M.2 / 2, 10GbLAN / 2, E-ATX OEM

SKU: 11552199

Manufacturer: SUPERMICRO

MPN: MBD-X11DPH-T-B

Availability: Available


Price: $674.13
or as low as $22/month
Quantity:
  • Intel® Xeon® Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s, CPU1: Skylake-F CPU supported
  • Intel® C624
  • Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
  • 3 PCI-E 3.0 x16,
  • 4 PCI-E 3.0 x8
  • M.2 Interface: 2 PCI-E 3.0 x4
  • M.2 Form Factor: 22110
  • M.2 Key: M-Key (RAID 0,1 support)
  • 1 VGA port
  • Intel® C624 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Dual LAN with 10GBase-T with Intel® X557
Product SKUs
MBD-X11DPH-T
  • X11DPH-T
Physical Stats
Form Factor
  • E-ATX
Dimensions
  • 12" x 13" (30.48cm x 33.02cm)
Processor/Cache
CPU
  • Intel® Xeon® Scalable Processors.
  • Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
  • CPU1: Skylake-F CPU supported
System Memory
Memory Capacity
  • Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
Memory Type
  • 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
  • RDIMM: 64GB
  • LRDIMM: 64GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C624
SATA
  • Intel® C624 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Network Controllers
  • Dual LAN with 10GBase-T with Intel® X557
Input / Output
SATA
  • 10 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
USB
  • 7 USB 3.0 ports (4 rear + 2 headers + 1 Type A) Type A
Video Output
  • 1 VGA port
Serial Port / Header
  • 1 COM Port (1 rear)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 3 PCI-E 3.0 x16,
  • 4 PCI-E 3.0 x8
M.2
  • M.2 Interface: 2 PCI-E 3.0 x4
  • Form Factor: 22110
  • Key: M-Key (RAID 0,1 support)
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
  • Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 6+1 Phase-switching voltage regulator, 7-fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System temperature, VBAT
FAN
  • 7fan headers (up to 7 fans), 7 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control, Overheat LED indication, PWM fan speed control
Temperature
  • CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
LED
  • CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED
Other Features
  • ACPI power management, Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS, UID
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
