Product SKUs |

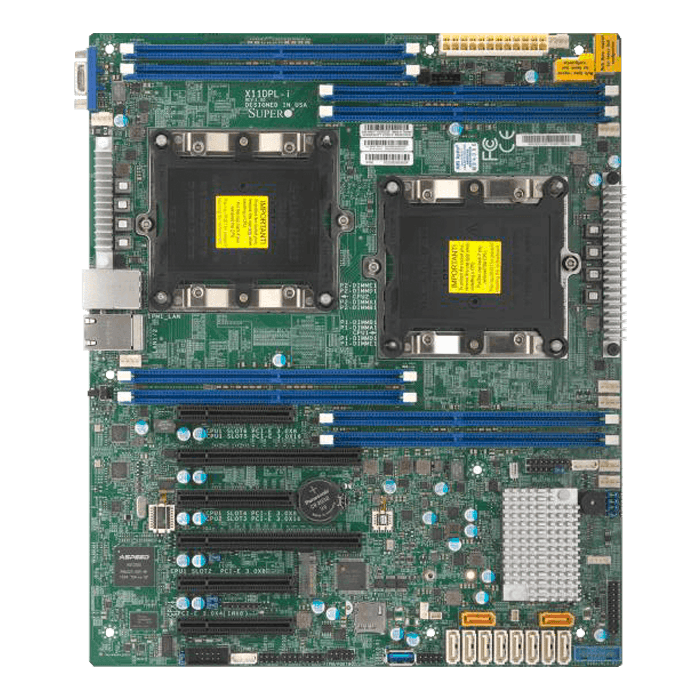

MBD-X11DPL-i |
|
Physical Stats |
Form Factor |
|
Dimensions |
- 12.076" x 10.15" (30.67cm x 25.78cm)
|
Processor/Cache |
CPU |
- Intel® Xeon® Processor Scalable Family.
- Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s
|
System Memory |
Memory Capacity |
- Up to 512GB Registered ECC RDIMM and DDR4-2666MHz, Up to 1TB Registered ECC LRDIMM, in 8 DIMM slots
|
Memory Type |
- 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
|
DIMM Sizes |
- RDIMM: 64GB
- LRDIMM: 128GB
- 3DS LRDIMM: 128GB
|
Memory Voltage |
|
Error Detection |
- Corrects single-bit errors
|
On-Board Devices |
Chipset |
|
SATA |
- Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
IPMI |
|
Network Controllers |
- Dual LAN with Lewisburg
Marvell 88E1512 PHY
|
Graphics |
|
Input / Output |
USB |
- 4 USB 2.0 ports (2 rear + 2 via header(s)),
- 3 USB 3.0 ports (2 via header(s) + 1 Type A)
|
Video Output |
|
Serial Port / Header |
|
TPM |
|
Expansion Slots |
PCI-E |
- 2 PCI-E 3.0 x16,
- 3 PCI-E 3.0 x8,
- 1 PCI-E 3.0 x4 (in x8 slot)
|
M.2 |
- Interface: PCIe 3.0 x4
- Form Factor: 2260, 2280
|
System BIOS |
BIOS Type |
|
Management |
Software |
- Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
|
Power Configurations |
|
PC Health Monitoring |
Voltage |
- +12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility
|
FAN |
- 8x 4-pin fan headers (up to 8 fans), Overheat LED indication, PWM fan speed control
|
Temperature |
- CPU thermal trip support
- PECI
|
LED |
- CPU / System Overheat LED
- UID/Remote UID
|
Other Features |
- ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Node Manager Support, SDDC, UID, WOL
|
